EIR-OPS-006.1: TC Authentication

Objective

To enable on-board authentication of telecommands received by the spacecraft during commissioning.

Introduction

Using this procedure, the Operator will test and enable the HMAC (Hash-based Message Authentication Code) feature that allows the spacecraft to authenticate received TCs. TC authentication is essential to reduce the risk of replay attacks.

Procedure

This procedure contains the following sub-procedures:

A. Pre-Pass Preparations
B. Pre-Authentication Checks
C. Enable Authentication Time-out
D. Enable TC Authentication and Disable Timeout
E. Verification

Note

Communication with the spacecraft is required for Sections B - E of this procedure.

A. Pre-Pass Preparations

A.1.

Prior to the pass in which this procedure is followed, confirm with the Software and/or Systems Engineers that the ground segment is configured with the same HMAC key as the spacecraft.

B. Pre-Authentication Checks

Important

You are about to send the first TC of this procedure - Have you completed the EIR-OPS-003: Start a Communication Pass procedure? A Communication Pass must be started prior to carrying out the operations planned for the pass. Don’t forget to et up the parameters/actions that will be used during the pass in MCS before the pass begins!

B.1.

Get the comms.HMAC.isKeyValid parameter.
Ensure that 1 is returned.

Note

The OBC is programmed to load a ‘valid’ HMAC key (used to generate the code to check the authenticity of incoming TCs) from the initialisation data at boot. Therefore, isKeyValid = 1 is expected. If isKeyValid = 0, a new key must be uploaded to the spacecraft prior to enabling TC authentication.

TC Details
MCS Operation	`Get`
Action/Param Name	`comms.HMAC.isKeyValid`
Data Expected with TC	No
TM Details
Data Expected from TC	`comms.HMAC.isKeyValid` ( + ACK )
Data Size	boolean
Data Info	Whether the HMAC key is valid (1) or invalid (0)
Allowed Value(s)	0 - 1
Expected Value(s)	1

B.2.

Warning

Don’t perform this step while a downlink or uplink is on-going as MCS will automatically increase comms.HMAC.sequenceNumber during these activities and so the parameter value you get might quickly become invalid.

Get the comms.HMAC.sequenceNumber parameter from the spacecraft.

Note

A TC sequence number (essentially a TC counter) is also checked as part of the on-board TC authentication process.

TC Details
MCS Operation	`Get`
Action/Param Name	`comms.HMAC.sequenceNumber`
Data Expected with TC	No
TM Details
Data Expected from TC	`comms.HMAC.sequenceNumber` ( + ACK )
Data Size	3 bytes
Data Info	The current TC sequence number stored on-board the spacecraft
Allowed Value(s)	000000 - FFFFFF (hex)
Expected Value(s)	> 0

B.3.

Get MCS’s TC sequence number (see Figure 1 for details on accessing this parameter).
Compare the sequence number returned in the previous step to that of MCS, and confirm these numbers match before proceeding.

Tip

Ensure that both values are represented as either decimal or hex values before comparing!

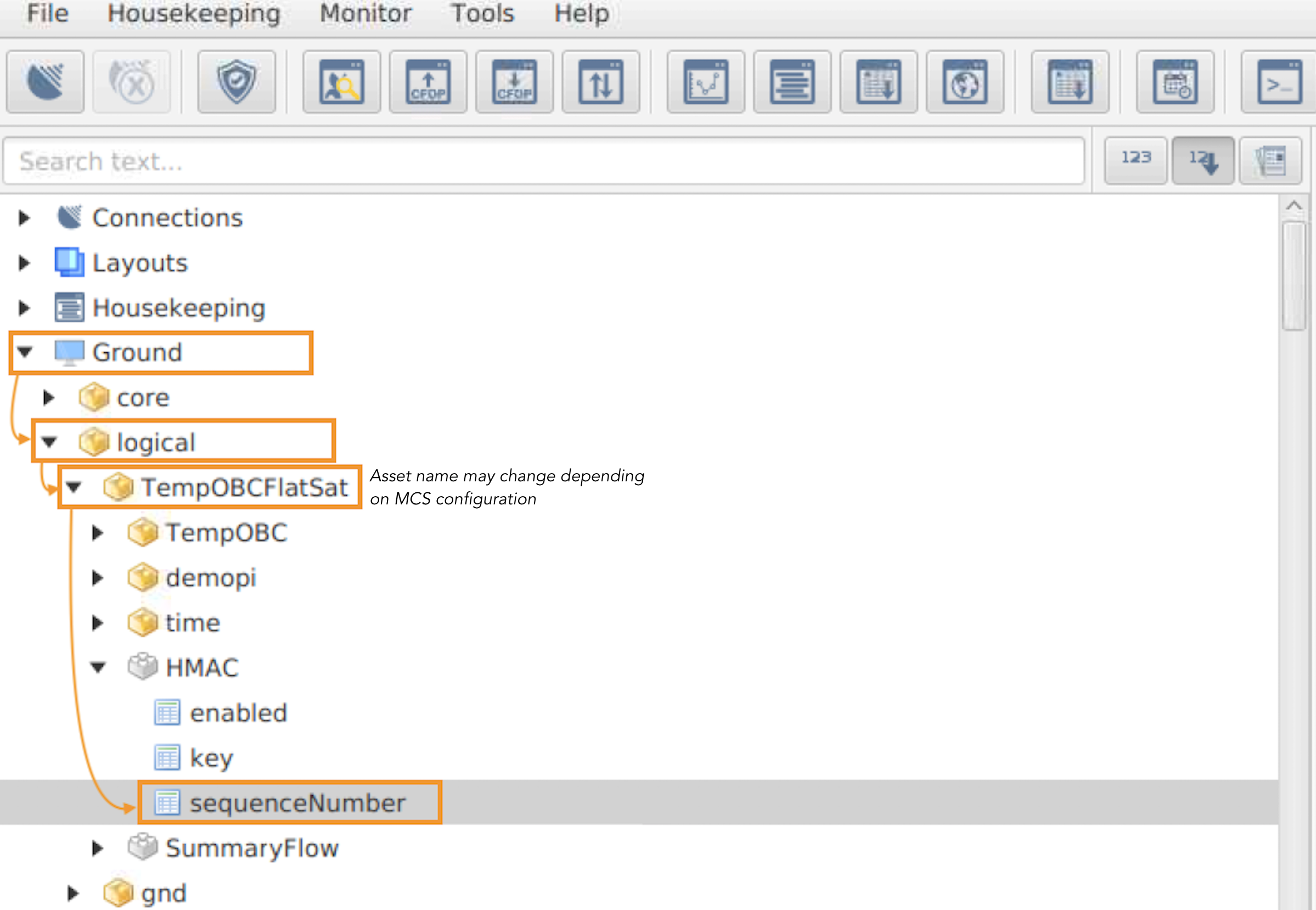

../../../../_images/MCSTCNum1.png — Figure 1 - Path to the MCS TC sequenceNumber, which is used by MCS to generate TCs with HMAC authentication framing.

C. Enable Authentication Time-out

Note

The TimeAction component is used to automatically trigger an on-board action (i.e. to Invoke an action or Set a parameter) after a user-defined period of time. In this procedure, the TimeAction component will be used to disable TC authentication after the user-defined time period has elapsed. This is a safety feature to ensure that communication with the spacecraft can be secured with TC authentication enabled before fully enabling authentication.

C.1.

Warning

The 3rd entry of the cdh.scheduling.TimeAction.entryTime parameter contains the time for the TC authentication timeout. This is the reason for setting the First Row = Last Row = 2. However, this is only the case for the primary images. If failsafe is the current boot image when following this procedure, First Row = Last Row = 1 should instead be used.

To ensure the TimeAction is ready for use, Invoke the cdh.scheduling.TimeAction.restartRelativeEntries action with the action argument = 2.

TC Details
MCS Operation	`Invoke`
Action/Param Name	`cdh.scheduling.TimeAction.restartRelativeEntries`
Data Expected with TC	`rows`
Data Size	1 byte
Data Info	The index of the relative entry to restart
Allowed Value(s)	0 - 255 (dec)
Expected Value(s)	2
TM Details
Data Expected from TC	No ( + ACK )

C.2.

Warning

If failsafe is the current boot image when following this procedure, First row = Last row = 1 should instead be used in this step.

To check the timeout duration, Get the cdh.scheduling.TimeAction.entryTime parameter, with First row = Last row = 2.

Note

This is the time the satellite will wait before TC authentication is disabled (i.e. the time until isAuthenticating is set as 0).

TC Details
MCS Operation	`Get`
Action/Param Name	`cdh.scheduling.TimeAction.entryTime`
Data Expected with TC	`First Row`, `Last Row`
Data Size	2 bytes, 2 bytes
Data Info	The first and last rows/indexes of the parameter to get
Allowed Value(s)	0 - 511, 0 - 511 (dec)
Expected Value(s)	2, 2
TM Details
Data Expected from TC	`cdh.scheduling.TimeAction.entryTime` ( + ACK )
Data Size	4 bytes
Data Info	Time (in seconds) for the authentication timeout
Allowed Value(s)	00000000 - FFFFFFFF (hex)

C.3.

Warning

If failsafe is the current boot image when following this procedure, First row = Last row = 1 should instead be used in this step.

If cdh.scheduling.TimeAction.entryTime is already configured with the desired timeout, proceed to Step C.5.
Else, Set the cdh.scheduling.TimeAction.entryTime parameter, with First row = Last row = 2, to the desired value.

Tip

It can be beneficial (but is not necessary) to set entryTime > the wait-time to the next communication pass, as:

The spacecraft will then be protected from replay attacks between the passes, and
If the Operator doesn’t get time to disable the TimeAction timeout in a given pass, they will have time to do so during the next pass rather than needing to repeat this procedure from scratch.

TC Details
MCS Operation	`Set`
Action/Param Name	`cdh.scheduling.TimeAction.entryTime`
Data Expected with TC	`First Row`, `Last Row`, `entryTime`
Data Size	2 bytes, 2 bytes, 4 bytes
Data Info	The first and last rows/indexes of the parameter to set + the desired `entryTime` to set
Allowed Value(s)	0 - 511, 0 - 511 (dec), 00000000 - FFFFFFFF (hex)
Expected Value(s)	2, 2, > 0
TM Details
Data Expected from TC	No ( + ACK )

C.4.

Confirm the Set in the previous step with a Get (i.e. confirm the value was set successfully).

C.5.

Warning

If failsafe is the current boot image when following this procedure, First row = Last row = 1 should instead be used in this step.

Prior to enabling this TC authentication timeout, Get the cdh.scheduling.TimeAction.entryEnabled parameter, with First row = Last row = 2.
Ensure that it is 0 (disabled).

TC Details
MCS Operation	`Get`
Action/Param Name	`cdh.scheduling.TimeAction.entryEnabled`
Data Expected with TC	`First Row`, `Last Row`
Data Size	2 bytes, 2 bytes
Data Info	The first and last rows/indexes of the parameter to get
Allowed Value(s)	0 - 511, 0 - 511 (dec)
Expected Value(s)	2, 2
TM Details
Data Expected from TC	`cdh.scheduling.TimeAction.entryEnabled` ( + ACK )
Data Size	boolean
Data Info	Whether the TimeAction entry is enabled (1) or disabled (0)
Allowed Value(s)	0 - 1
Expected Value(s)	0

C.6.

Warning

If failsafe is the current boot image when following this procedure, First row = Last row = 1 should instead be used in this step.

To then enable this TC authentication timeout, Set the cdh.scheduling.TimeAction.entryEnabled parameter, with First row = Last row = 2, to 1 (i.e. enabled).

Note

Once this timeout is enabled, the TimeAction component will trigger the action (to disable TC authentication) and Set the entryEnabled parameter back to 0 after the time period ends regardless of whether TC authentication has actually been enabled or not yet.

TC Details
MCS Operation	`Set`
Action/Param Name	`cdh.scheduling.TimeAction.entryEnabled`
Data Expected with TC	`First Row`, `Last Row`, `entryEnabled`
Data Size	2 bytes, 2 bytes, boolean
Data Info	The first and last rows/indexes of the parameter to set + the desired `entryEnabled` to set
Allowed Value(s)	0 - 511, 0 - 511, 0 - 1 (dec)
Expected Value(s)	2, 2, 1
TM Details
Data Expected from TC	No ( + ACK )

C.7.

Confirm the Set in the previous step with a Get (i.e. confirm the value was set successfully).

D. Enable TC Authentication and Disable Timeout

D.1.

Get the comms.HMAC.isAuthenticating parameter.
Ensure that 0 is returned (i.e. that TC authentication is disabled).

TC Details
MCS Operation	`Get`
Action/Param Name	`comms.HMAC.isAuthenticating`
Data Expected with TC	No
TM Details
Data Expected from TC	`comms.HMAC.isAuthenticating` ( + ACK )
Data Size	boolean
Data Info	Whether TC authentication is enabled (1) or disabled (0)
Allowed Value(s)	0 - 1
Expected Value(s)	0

D.2.

To then enable authentication of TCs received by the spacecraft, Set the comms.HMAC.isAuthenticating parameter to 1 (i.e. enabled).

TC Details
MCS Operation	`Set`
Action/Param Name	`comms.HMAC.isAuthenticating`
Data Expected with TC	`isAuthenticating`
Data Size	boolean
Data Info	The desired `isAuthenticating` to set
Allowed Value(s)	0 - 1
Expected Value(s)	1
TM Details
Data Expected from TC	No ( + ACK )

D.3.

To verify that packets generated by the EIRSAT-1 ground station are now being successfully received and authenticated by the spacecraft, Get the comms.HMAC.isAuthenticating parameter.
Ensure 1 (i.e. authenticating enabled) is returned.

Tip

If no TM is received from this TC, or a live error event is all that is observed in response to the TC, check the following:

That TC authentication framing is enabled on MCS,
That the HMAC key being used on the ground is correct (requires input from the GS and OBSW engineers), and
That the TC sequence number on MCS is consistent with the value observed in the S/C’s beacon data.

TC Details
MCS Operation	`Get`
Action/Param Name	`comms.HMAC.isAuthenticating`
Data Expected with TC	No
TM Details
Data Expected from TC	`comms.HMAC.isAuthenticating` ( + ACK )
Data Size	boolean
Data Info	Whether TC authentication is enabled (1) or disabled (0)
Allowed Value(s)	0 - 1
Expected Value(s)	1

D.4.

Warning

If failsafe is the current boot image when following this procedure, First row = Last row = 1 should instead be used in this step.

Once you have ensured TCs are successfully received and acknowledged by the spacecraft (demonstrating that the authentication set-up on-board and on the ground are in-sync and are operating successfully), the TC authentication timeout can be disabled. To do this, first…
Get the cdh.scheduling.TimeAction.entryEnabled parameter, with First row = Last row = 2, and ensure that it is 1 (i.e. enabled).

TC Details
MCS Operation	`Get`
Action/Param Name	`cdh.scheduling.TimeAction.entryEnabled`
Data Expected with TC	Yes
Data Size	2 bytes, 2 bytes
Data Info	`First Row`, `Last Row`
Allowed Value(s)	0 - 511, 0 - 511 (dec)
Expected Value(s)	2, 2
TM Details
Data Expected from TC	`cdh.scheduling.TimeAction.entryEnabled` ( + ACK )
Data Size	boolean
Data Info	Whether the TimeAction entry is enabled (1) or disabled (0)
Allowed Value(s)	0 - 1
Expected Value(s)	1

D.5.

Warning

If failsafe is the current boot image when following this procedure, First row = Last row = 1 should instead be used in this step.

To then disable this TC authentication timeout, Set the cdh.scheduling.TimeAction.entryEnabled parameter, with First row = Last row = 2, to 0 (i.e. disabled).

TC Details
MCS Operation	`Set`
Action/Param Name	`cdh.scheduling.TimeAction.entryEnabled`
Data Expected with TC	`First Row`, `Last Row`, `entryEnabled`
Data Size	2 bytes, 2 bytes, boolean
Data Info	The first and last rows/indexes of the parameter to set + the desired `entryEnabled` to set
Allowed Value(s)	0 - 511, 0 - 511, 0 - 1 (dec)
Expected Value(s)	2, 2, 0
TM Details
Data Expected from TC	No ( + ACK )

D.6.

Confirm the Set in the previous step with a Get (i.e. confirm the value was set successfully).

D.7.

Next, Get the comms.HMAC.isAuthenticating parameter.
Ensure that 1 is returned (i.e. that TC authentication is still enabled).

TC Details
MCS Operation	`Get`
Action/Param Name	`comms.HMAC.isAuthenticating`
Data Expected with TC	No
TM Details
Data Expected from TC	`comms.HMAC.isAuthenticating` ( + ACK )
Data Size	boolean
Data Info	Whether TC authentication is enabled (1) or disabled (0)
Allowed Value(s)	0 - 1
Expected Value(s)	1

E. Verification

E.1.

During a later communication pass (i.e. after the timeout period from Step C.3. has elapsed), Get the comms.HMAC.isAuthenticating parameter.
Ensure that 1 is returned (i.e. that TC authentication is still enabled).

Important

While waiting to achieve this verification, the Operators may proceed with other planned procedures in the meantime.

TC Details
MCS Operation	`Get`
Action/Param Name	`comms.HMAC.isAuthenticating`
Data Expected with TC	No
TM Details
Data Expected from TC	`comms.HMAC.isAuthenticating` ( + ACK )
Data Size	boolean
Data Info	Whether TC authentication is enabled (1) or disabled (0)
Allowed Value(s)	0 - 1
Expected Value(s)	1

END OF PROCEDURE
