Parameter Accessors (Gets/Sets)

Introduction

Below is a database of all the primary and failsafe image parameters that can be accessed via interaction with the spacecraft using MCS. The Operator will be able to read/write any of these parameters using MCS’s Get and Set operations, except for those parameters which are specified as read only in the signature column, in which case a Set operation will not be possible.

Generic procedures for a parameter Get and Set operation have been provided below.

Procedure

A. Finding the Parameter

A.1.

• On MCS, navigate your way through the spacecraft database to the parameter of interest, e.g. the cdh.logging.TCLogger.enabled parameter.

• Double click on the parameter name to open the parameter window, as demonstrated in Figure 1.

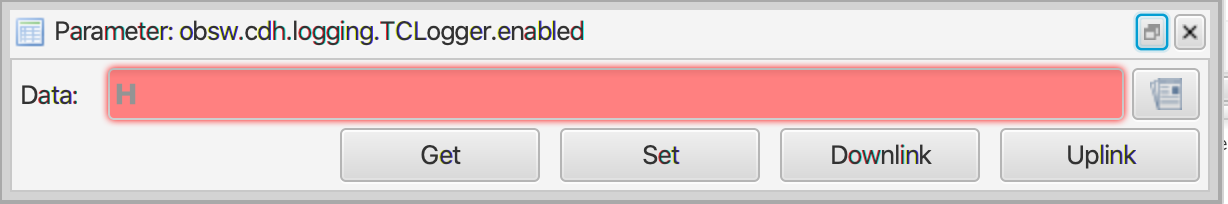

Figure 1 - Example of a parameter window

B. Parameter Get

B.1.

• Click the Get button to read the cdh.logging.TCLogger.enabled parameter.

• TM returned (i.e. the response to the Get and the TC ACK) will be visible in MCS’s Packet Monitor as well as in the data field of the parameter window.

TC Details
MCS Operation	Get
Action/Param Name	cdh.logging.TCLogger.enabled
Data Expected with TC	No
TM Details
Data Expected from TC	enabled ( + ACK )
Data Size	boolean
Data Info	Whether the TC logger is enabled (1) or disabled (0)
Allowed Value(s)	0 - 1

C. Parameter Set

C.1.

• Edit the data field of the parameter window with the value you wish to set the parameter to.

Tip

If you are unsure of the size/format of the data to write, a Get operation should be carried out prior to the Set to establish this information.

• Click the Set button to write the cdh.logging.TCLogger.enabled parameter.

• TM returned (i.e. the TC ACK) will be visible in MCS’s Packet Monitor.

TC Details
MCS Operation	Set
Action/Param Name	cdh.logging.TCLogger.enabled
Data Expected with TC	Yes
Data Size	boolean
Data Info	Whether the TC logger is enabled (1) or disabled (0)
Allowed Value(s)	0 - 1
TM Details
Data Expected from TC	No ( + ACK )

Primary Image Parameters (Failsafe Image Parameters are further down!)

Tip

Scroll to the right to view the full table.

ID	ID (hex)	Parameter	Type - Bits/Row
0	0000	Version.version	readOnly
		The full version number.	32
1	0001	Version.majorVersion	readOnly
		The major version number.	8
2	0002	Version.minorVersion	readOnly
		The minor version number.	8
3	0003	Version.build	readOnly
		The build number.	16
4	0004	Version.buildDate	readOnly
		The build date.	88
5	0005	Version.buildTime	readOnly
		The build time.	64
6	0006	Version.satelliteString	readOnly
		The EIRSAT-1” string.”	64
7	0007	Version.messageString	readOnly
		A 32byte parameter to be used for adding messages to TMBeacon. Update the message contents via the UpdateMessage action. Warning: Before adding this to the TMBeacon, the Operators should ensure there is room in the TMBeacon frame which is capped at 245 bytes.	256
8	0008	Version.longMessageString	readOnly
		A 64byte parameter to be used for adding messages to TMBeacon. Update the message contents via the UpdateMessage action. Warning: Before adding this to the TMBeacon, the Operators should ensure there is room in the TMBeacon frame which is capped at 245 bytes.	512
256	0100	platform.obc.OBC.firmwareVersion	readOnly
		The version code for the OBC firmware.	16
257	0101	platform.obc.OBC.partNumber	readOnly
		The part number of the OBC.	32
258	0102	platform.obc.OBC.mpuEnable	readWrite
		Enable or disable the MPU	1
259	0103	platform.obc.OBC.currBootImage	readOnly
		The index of the currently executing software image	8
260	0104	platform.obc.OBC.nextBootImage	readOnly
		The index of the software image to execute on the next boot assuming the image CRC is valid.	8
261	0105	platform.obc.OBC.image1	readWrite
		The software image for image 1	128
262	0106	platform.obc.OBC.image2	readWrite
		The software image for image 2	128
263	0107	platform.obc.OBC.imageCrc	readOnly
		The stored CRCs for each of the software images.	32
264	0108	platform.obc.OBC.imageValid	readOnly
		The validity flags for each of the software images.	1
265	0109	platform.obc.OBC.imagePriority	readWrite
		Priority of the image.	32
266	010A	platform.obc.OBC.imageIsStable	readWrite
		Is the image stable.	1
267	010B	platform.obc.OBC.dtmfSequence	readWrite
		The sequence of DTMF symbols which can be used to cause a reboot	2040
268	010C	platform.obc.OBC.dtmfSequenceLocked	readOnly
		The lock status for the DTMF sequence.	1
269	010D	platform.obc.OBC.dtmfFrequency	readWrite
		The frequency at which DTMF symbols must be received to cause a reboot	32
270	010E	platform.obc.OBC.mramCorrectableErrorCount	readOnly
		The number of correctable errors detected in MRAM	32
271	010F	platform.obc.OBC.mramNonCorrectableErrorCount	readOnly
		The number of non-correctable errors detected in MRAM	32
272	0110	platform.obc.OBC.flashCorrectableErrorCount	readOnly
		The number of correctable errors detected in flash	32
273	0111	platform.obc.OBC.flashNonCorrectableErrorCount	readOnly
		The number of non-correctable errors detected in flash	32
274	0112	platform.obc.OBC.gpsEnable	readWrite
		The enable (power) state of the GPS	1
275	0113	platform.obc.OBC.adcEnable	readWrite
		The enable (power) state of the ADCs	1
276	0114	platform.obc.OBC.gyroEnable	readWrite
		The enable (power) state of the gyroscopes	1
277	0115	platform.obc.OBC.magnetometerEnable	readWrite
		The enable (power) state of the magnetometer	1
512	0200	platform.obc.GPIO.pins	readWrite
		The values of GPIO pins	1
768	0300	platform.obc.MagnetometerI2C.enabled	readWrite
		Whether the component is enabled	1
769	0301	platform.obc.MagnetometerI2C.channelAddress	readWrite
		The unshifted I2C address for each connected channel.	8
770	0302	platform.obc.MagnetometerI2C.nackAddrCount	readOnly
		Number of NACKs received when addressing a slave	16
771	0303	platform.obc.MagnetometerI2C.nackDataCount	readOnly
		Number of NACKed data bytes	16
772	0304	platform.obc.MagnetometerI2C.ackAddrCount	readOnly
		Number of ACKs received when addressing a slave	16
773	0305	platform.obc.MagnetometerI2C.ackDataCount	readOnly
		Number of ACKed data bytes	16
774	0306	platform.obc.MagnetometerI2C.hwStateErrorCount	readOnly
		Number of times the hardware peripheral entered an unexpected state	16
775	0307	platform.obc.MagnetometerI2C.isrErrorCount	readOnly
		Number of times an error occurred in the I2CMaster ISR task	16
1024	0400	platform.obc.I2CBusA.enabled	readWrite
		Whether the component is enabled	1
1025	0401	platform.obc.I2CBusA.channelAddress	readWrite
		The unshifted I2C address for each connected channel.	8
1026	0402	platform.obc.I2CBusA.nackAddrCount	readOnly
		Number of NACKs received when addressing a slave	16
1027	0403	platform.obc.I2CBusA.nackDataCount	readOnly
		Number of NACKed data bytes	16
1028	0404	platform.obc.I2CBusA.ackAddrCount	readOnly
		Number of ACKs received when addressing a slave	16
1029	0405	platform.obc.I2CBusA.ackDataCount	readOnly
		Number of ACKed data bytes	16
1030	0406	platform.obc.I2CBusA.hwStateErrorCount	readOnly
		Number of times the hardware peripheral entered an unexpected state	16
1031	0407	platform.obc.I2CBusA.isrErrorCount	readOnly
		Number of times an error occurred in the I2CMaster ISR task	16
1280	0500	platform.obc.I2CBusB.enabled	readWrite
		Whether the component is enabled	1
1281	0501	platform.obc.I2CBusB.channelAddress	readWrite
		The unshifted I2C address for each connected channel.	8
1282	0502	platform.obc.I2CBusB.nackAddrCount	readOnly
		Number of NACKs received when addressing a slave	16
1283	0503	platform.obc.I2CBusB.nackDataCount	readOnly
		Number of NACKed data bytes	16
1284	0504	platform.obc.I2CBusB.ackAddrCount	readOnly
		Number of ACKs received when addressing a slave	16
1285	0505	platform.obc.I2CBusB.ackDataCount	readOnly
		Number of ACKed data bytes	16
1286	0506	platform.obc.I2CBusB.hwStateErrorCount	readOnly
		Number of times the hardware peripheral entered an unexpected state	16
1287	0507	platform.obc.I2CBusB.isrErrorCount	readOnly
		Number of times an error occurred in the I2CMaster ISR task	16
1536	0600	platform.obc.I2CBusC.enabled	readWrite
		Whether the component is enabled	1
1537	0601	platform.obc.I2CBusC.channelAddress	readWrite
		The unshifted I2C address for each connected channel.	8
1538	0602	platform.obc.I2CBusC.nackAddrCount	readOnly
		Number of NACKs received when addressing a slave	16
1539	0603	platform.obc.I2CBusC.nackDataCount	readOnly
		Number of NACKed data bytes	16
1540	0604	platform.obc.I2CBusC.ackAddrCount	readOnly
		Number of ACKs received when addressing a slave	16
1541	0605	platform.obc.I2CBusC.ackDataCount	readOnly
		Number of ACKed data bytes	16
1542	0606	platform.obc.I2CBusC.hwStateErrorCount	readOnly
		Number of times the hardware peripheral entered an unexpected state	16
1543	0607	platform.obc.I2CBusC.isrErrorCount	readOnly
		Number of times an error occurred in the I2CMaster ISR task	16
1792	0700	platform.obc.Magnetometer.mode	readWrite
		The measurement mode used by the digital compass	2
1793	0701	platform.obc.Magnetometer.rate	readWrite
		The data output rate used by measurements on the digital compass	3
1794	0702	platform.obc.Magnetometer.bias	readWrite
		The measurement bias configuration used by the digital compass	2
1795	0703	platform.obc.Magnetometer.gain	readWrite
		The gain used by magnetometer measurements	3
1796	0704	platform.obc.Magnetometer.status	readOnly
		The status field from the digital compass	3
1797	0705	platform.obc.Magnetometer.heading	readOnly
		The heading measurements (magnetometer readings) from the digital compass	16
1798	0706	platform.obc.Magnetometer.id	readOnly
		The constant identity field from the digital compass	24
2048	0800	platform.obc.ADCSPI.isrErrorCount	readOnly
		The number of errors which have occurred handling transactions in the ISR	32
2049	0801	platform.obc.ADCSPI.lastIsrError	readOnly
		The last error code which occurred when handing transactions in the ISR	32
2304	0900	platform.obc.TelemetryADCA.CFR	readOnly
		Read the configuration register value from the device	12
2305	0901	platform.obc.TelemetryADCA.channelOutput	readOnly
		The raw output value for each channel in LSBs	12
2560	0A00	platform.obc.TelemetryADCB.CFR	readOnly
		Read the configuration register value from the device	12
2561	0A01	platform.obc.TelemetryADCB.channelOutput	readOnly
		The raw output value for each channel in LSBs	12
2816	0B00	platform.obc.TelemetryADCC.CFR	readOnly
		Read the configuration register value from the device	12
2817	0B01	platform.obc.TelemetryADCC.channelOutput	readOnly
		The raw output value for each channel in LSBs	12
3072	0C00	platform.EPS.version	readOnly
		Gets the firmware version information.	16
3073	0C01	platform.EPS.status	readOnly
		Gets status information.	8
3074	0C02	platform.EPS.lastError	readOnly
		Returns the last error.	8
3075	0C03	platform.EPS.romChecksum	readOnly
		Returns a generated checksum of the ROM contents.	16
3076	0C04	platform.EPS.watchDogTimeout	readWrite
		Gets or sets the time to pass before the watchdog times out.	7
3077	0C05	platform.EPS.brownOutResetCount	readOnly
		Returns the number of brown-out resets that have occurred.	8
3078	0C06	platform.EPS.autoResetCount	readOnly
		Returns the number times the PIC watchdog has reset the board.	8
3079	0C07	platform.EPS.watchdogResetCount	readOnly
		Get the number of times that the comms watchdog has reset the system.	8
3080	0C08	platform.EPS.softResetCount	readOnly
		Returns the amount of times that the user has reset the system.	8
3081	0C09	platform.EPS.switchVoltages	readOnly
		Voltage measurements for the switches.	10
3082	0C0A	platform.EPS.switchCurrents	readOnly
		Measurements for the current of the switches.	10
3083	0C0B	platform.EPS.initialSwitchStates	readWrite
		Get or set the initial states of one or more switches.	1
3084	0C0C	platform.EPS.initialSwitchStatesBitmap	readWrite
		Get or set the initial states of all the switches.	10
3085	0C0D	platform.EPS.expectedSwitchStates	readWrite
		Get or set the expected state of one or more switches.	1
3086	0C0E	platform.EPS.expectedSwitchStatesBitmap	readWrite
		Get or set the expected state of the 10 switches.	10
3087	0C0F	platform.EPS.actualSwitchStates	readOnly
		Returns the actual state of one or more switches.	1
3088	0C10	platform.EPS.actualSwitchStatesBitmap	readOnly
		Returns the actual state of all the switches.	10
3089	0C11	platform.EPS.switchOvercurrentBitmap	readOnly
		Whether an over-current trip has been detected for a switch	10
3090	0C12	platform.EPS.switchTimerLimit	readWrite
		The limit for the switch timers.	8
3091	0C13	platform.EPS.switchTimerElapsed	readOnly
		Returns the current value for the switch timers.	8
3092	0C14	platform.EPS.boardTemperature	readOnly
		Get the temperature of the board.	10
3093	0C15	platform.EPS.daughterboardTemperature	readOnly
		Get the temperature of the daughterboard.	10
3094	0C16	platform.EPS.solarArrayTemperatures	readOnly
		Temperature measurements for all solar arrays.	10
3095	0C17	platform.EPS.solarArrayCurrents	readOnly
		Measurement of current for all solar arrays.	10
3096	0C18	platform.EPS.solarArraysCurrentTotal	readOnly
		Returns the total current retrieved by the BCRs.	10
3097	0C19	platform.EPS.solarArraysVoltageTotal	readOnly
		Returns the total voltage retrieved by the BCRs.	10
3098	0C1A	platform.EPS.solarArrayIlluminated	readOnly
		Returns the sun detector values for the solar arrays.	10
3099	0C1B	platform.EPS.solarArrayVoltages	readOnly
		Voltage measurements for the solar array pairs.	10
3100	0C1C	platform.EPS.busVoltages	readOnly
		Voltage measurements for the buses.	10
3101	0C1D	platform.EPS.busCurrents	readOnly
		Measurements for the current of the buses.	10
3102	0C1E	platform.EPS.busCurrentDraws	readOnly
		The current drawn by the EPS.	10
3328	0D00	platform.BAT.batteryCurrentDir	readOnly
		Returns whether the battery is charging	1
3329	0D01	platform.BAT.batteryCurrent	readOnly
		Current for the batteries.	10
3330	0D02	platform.BAT.batteryVoltage	readOnly
		Voltage for the battery buses.	10
3331	0D03	platform.BAT.boardTemperature	readOnly
		Returns the board temperature.	10
3332	0D04	platform.BAT.batteryTemperature	readOnly
		Temperature for the batteries.	10
3333	0D05	platform.BAT.batteryHeaterStatus	readOnly
		Status of the heaters for the batteries.	10
3334	0D06	platform.BAT.version	readOnly
		Version information.	16
3335	0D07	platform.BAT.status	readOnly
		Status information.	16
3336	0D08	platform.BAT.lastError	readOnly
		Returns the last error.	8
3337	0D09	platform.BAT.romChecksum	readOnly
		Returns a generated checksum of the ROM contents.	16
3338	0D0A	platform.BAT.manualSoftResetCount	readOnly
		Returns the amount of times that the user has reset the system.	8
3339	0D0B	platform.BAT.autoResetCount	readOnly
		Returns the number times the PIC watchdog has reset the board.	8
3340	0D0C	platform.BAT.brownOutResetCount	readOnly
		Returns the number of brown-out resets that have occurred.	8
3341	0D0D	platform.BAT.heaterAutomationEnabled	readWrite
		Whether the heater automation is enabled.	1
3342	0D0E	platform.BAT.packedHeaterStatus	readOnly
		The Heater Statuses as booleans.	1
3584	0E00	platform.ADCS.rawGyroRate	readOnly
		Returns a packed record of the raw gyro data for each axis.	16
3585	0E01	platform.ADCS.rawGyroRateTotalSqrd	readOnly
		Returns the squared total raw gyro rate value.	32
3586	0E02	platform.ADCS.rawGyroTemperature	readOnly
		Returns the raw temperatures for each of the gyro sensors	16
3587	0E03	platform.ADCS.gyroStatus	readOnly
		Returns the status byte for each of the axes.	24
3588	0E04	platform.ADCS.mtm1Raw	readOnly
		Provides the raw value for magnetometer 1’s sensors on board.	16
3589	0E05	platform.ADCS.mtm2Raw	readOnly
		Provides the raw value for magnetometer 2’s sensors on board.	16
3590	0E06	platform.ADCS.fss1Unfiltered	readOnly
		returns the unfiltered fine sun sensor readings.	32
3591	0E07	platform.ADCS.fss1Filtered	readOnly
		returns the filtered fine sun sensor readings.	32
3592	0E08	platform.ADCS.fss1AlphaAngle	readOnly
		returns the fine sun sensor alpha angle.	32
3593	0E09	platform.ADCS.fss1BetaAngle	readOnly
		returns the fine sun sensor beta angle.	32
3594	0E0A	platform.ADCS.fss1ErrorCodes	readOnly
		returns the fine sun sensor error codes for each sensor.	4
3595	0E0B	platform.ADCS.fss1ErrorCount	readOnly
		returns the number of fine sun sensor errors for each sensor.	16
3596	0E0C	platform.ADCS.mtqDirectionDuty	readOnly
		The magnetorquer’s direction and duty cycle.	8
3597	0E0D	platform.ADCS.status	readOnly
		The status of the ADCS device.	16
3598	0E0E	platform.ADCS.firmwareVersion	readOnly
		Version information.	16
3599	0E0F	platform.ADCS.busVoltages	readOnly
		Returns the voltages of the buses.	16
3600	0E10	platform.ADCS.busCurrents	readOnly
		Returns the currents of the buses.	16
3601	0E11	platform.ADCS.boardTemperature	readOnly
		Returns the current temperature of the board.	16
3602	0E12	platform.ADCS.analogueToDigitalReference	readOnly
		Returns the reference value used for analogue to digital conversion.	16
3603	0E13	platform.ADCS.sensorCurrent	readOnly
		Returns the current being used by the on board sensors.	16
3604	0E14	platform.ADCS.mtqCurrent	readOnly
		The magnetorquer bias values from the ADCS device.	16
3605	0E15	platform.ADCS.mtm1Temperature	readOnly
		Returns the temperature of magnetometer 1.	16
3606	0E16	platform.ADCS.mtm2Temperature	readOnly
		Returns the temperature of magnetometer 2.	16
3607	0E17	platform.ADCS.arrayTemperature	readOnly
		The current raw solar array temperatures from the board’s telemetry.	16
3608	0E18	platform.ADCS.cssRaw	readOnly
		Returns the raw ADC value for each Coarse Sun Sensor.	16
3609	0E19	platform.ADCS.eccStatisticsPacked	readOnly
		Returns a packed record of the available ECC statistics.	16
3610	0E1A	platform.ADCS.correctedRamErrorCount	readOnly
		Returns the number of corrected (single bit) RAM errors.	16
3611	0E1B	platform.ADCS.uncorrectableRamErrorCount	readOnly
		Returns the number of uncorrectable (multi bit) RAM errors.	16
3612	0E1C	platform.ADCS.eccCorrectionRamPage	readOnly
		Returns RAM page containing latest ECC correction.	16
3613	0E1D	platform.ADCS.eccUncorrectableRamPage	readOnly
		Returns RAM page containing latest uncorrectable error.	16
3614	0E1E	platform.ADCS.correctedEepromErrorCount	readOnly
		Returns the number of corrected (single bit) EEPROM errors.	16
3615	0E1F	platform.ADCS.uncorrectableEepromErrorCount	readOnly
		Returns the number of uncorrectable (multi bit) EEPROM errors.	16
3616	0E20	platform.ADCS.eccCorrectionEepromPage	readOnly
		Returns EEPROM page containing latest ECC correction.	16
3617	0E21	platform.ADCS.eccUncorrectableEepromPage	readOnly
		Returns EEPROM page containing latest uncorrectable error.	16
3618	0E22	platform.ADCS.mtqEnable	readWrite
		Get and set whether the magnetorquer is enabled.	1
3619	0E23	platform.ADCS.mtmEnable	readWrite
		Get and set whether the magnetometers are enabled.	1
3620	0E24	platform.ADCS.nvmPageAddress	readWrite
		Page address for the non volatile memory.	16
3621	0E25	platform.ADCS.nvmBufferByteAddress	readWrite
		Byte address within page for the non volatile memory.	16
3622	0E26	platform.ADCS.nvmBufferByteData	readWrite
		Read/Write non volatile memory byte.	16
3623	0E27	platform.ADCS.nvmPageData	readWrite
		Used to read/write more than a single byte of data to pages.	1024
3624	0E28	platform.ADCS.nvmControl	readWrite
		Non volatile memory control bits.	3
3625	0E29	platform.ADCS.processedGyroRate	readOnly
		The processed rate gyroscope sensor data used by the ADCS.	16
3626	0E2A	platform.ADCS.processedMtm1	readOnly
		The processed sensor data from magnetometer 1.	16
3627	0E2B	platform.ADCS.processedMtm2	readOnly
		The processed sensor data from magnetometer 2.	16
3628	0E2C	platform.ADCS.processedMtmADCS	readOnly
		The processed magnetometer sensor data used by the ADCS.	16
3629	0E2D	platform.ADCS.mtmActiveSelected	readOnly
		Whether a magnetometer axis is active and being used.	2
3630	0E2E	platform.ADCS.fssActiveSelected	readOnly
		Whether a fine sun sensor is active and being used.	2
3631	0E2F	platform.ADCS.cssActiveSelected	readOnly
		Whether a coarse sun sensor is active and being used.	2
3632	0E30	platform.ADCS.sunProcessed	readOnly
		The processed sun vector data used by the ADCS.	16
3633	0E31	platform.ADCS.latLongAlt	readOnly
		Get the latitude, longitude and altitude data.	32
3634	0E32	platform.ADCS.estAtt	readOnly
		The estimated attitude of the platform.	16
3635	0E33	platform.ADCS.softwareVersion	readOnly
		Version information.	16
3636	0E34	platform.ADCS.rotationRateHigh	readOnly
		Whether a high rotation rate is detected.	1
3637	0E35	platform.ADCS.detumbleComplete	readOnly
		Whether no longer expected to be detumbling.	1
3638	0E36	platform.ADCS.detumbleCounter	readOnly
		Counter of time in detumble.	16
3639	0E37	platform.ADCS.targetAngleEst	readOnly
		The target angle estimates.	16
3640	0E38	platform.ADCS.slantElevationEst	readOnly
		The slant range and elevation estimates.	16
3641	0E39	platform.ADCS.sensorBit	readOnly
		Sensor Built In Test.	10
3642	0E3A	platform.ADCS.targetBit	readOnly
		Target Built In Test.	4
3643	0E3B	platform.ADCS.actuatorBit	readOnly
		Actuator Built In Test.	16
3644	0E3C	platform.ADCS.propagatorBit	readOnly
		Propagator Built In Test.	3
3645	0E3D	platform.ADCS.attitudeBit	readOnly
		Attitude Built In Test.	4
3646	0E3E	platform.ADCS.executionCount	readOnly
		Returns a count of the number software step executions.	16
3647	0E3F	platform.ADCS.adcsMode	readWrite
		The current controller mode of the ADCS device.	16
3648	0E40	platform.ADCS.adcsState	readWrite
		The current state of the ADCS device.	16
3649	0E41	platform.ADCS.adcsModeState	readWrite
		Atomically access the mode and state.	32
3650	0E42	platform.ADCS.syncIn	readWrite
		Control whether the ADCS tick is driven by a clock internal to the ADCS or an external pulse.	1
3651	0E43	platform.ADCS.timePositionCoordinates	readWrite
		Get/Set the position of the spacecraft in ECEF coordinates.	32
3652	0E44	platform.ADCS.timePositionVelocity	readWrite
		Get/Set the velocity of the spacecraft.	32
3653	0E45	platform.ADCS.timePositionDateTime	readWrite
		Get/Set the date and time for the spacecraft	16
3654	0E46	platform.ADCS.timePositionUpdated	readWrite
		Returns whether the date and time values have been updated.	2
3655	0E47	platform.ADCS.pointingThreshold	readWrite
		The pointing threshold used by the Target BIT.	16
3656	0E48	platform.ADCS.llaTarget	readWrite
		An LLA target on the Earth.	16
3657	0E49	platform.ADCS.testModeMtq	readWrite
		Used in test mode to control the magnetorquer.	16
3658	0E4A	platform.ADCS.rawAccess	readWrite
		Write/Read directly to a memory address (8-1023)	16
3659	0E4B	platform.ADCS.packedAdcsMode	readOnly
		The ADCS Mode parameter contained within one byte for logging/TM efficiency.	8
3660	0E4C	platform.ADCS.packedAdcsState	readOnly
		The ADCS State parameter contained within one byte for logging/TM efficiency.	8
3661	0E4D	platform.ADCS.packedAdcsStatus	readOnly
		The ADCS Status parameter contained within one byte for logging/TM efficiency.	8
3662	0E4E	platform.ADCS.spinControllerState	readOnly
		Get the state of the spin stablised controller.	16
3663	0E4F	platform.ADCS.bodyControlEuler	readWrite
		Get/Set the 3 angles which define orientation of control frame relative to body frame.	16
3664	0E50	platform.ADCS.inertiaBodyFrame	readWrite
		Get/Set the Inertia tensor in body frame ().	16
3665	0E51	platform.ADCS.detumbleControllerGains	readWrite
		Get/Set the gains for BDot detumble controller.	16
3666	0E52	platform.ADCS.spinControllerGains	readWrite
		Get/Set the gains k1-k3 for spin stabilised controller	16
3667	0E53	platform.ADCS.spinControllerDipoleOffset	readWrite
		Get/Set the fixed dipole for cancelling residual dipole in Z axis	16
3668	0E54	platform.ADCS.spinControllerMTQEnables	readWrite
		Get/Set the first 6 bits define which MTQs are enabled	16
3669	0E55	platform.ADCS.spinControllerMTQPolarity	readWrite
		Get/Set the first 6 bits define MTQ polarities	16
3670	0E56	platform.ADCS.spinControllerDipoleMax	readWrite
		Get/Set the max commanded dipoles on each axis.	16
3671	0E57	platform.ADCS.bodyFSSQuaternion	readWrite
		Rotation between body and FSS frames.	16
3672	0E58	platform.ADCS.maxRotationRate	readWrite
		Configures the spin rate limits which trigger bits in RN727 or 729 (need to clarify with CS).	16
3673	0E59	platform.ADCS.maxRotationRateSpin	readWrite
		Configures the spin rate limits which trigger bits in RN727 or 729 (need to clarify with CS).	16
3674	0E5A	platform.ADCS.triadLimitBodyFrame	readWrite
		Configure angles below which KF is deactivated.	16
3675	0E5B	platform.ADCS.triadLimitECI	readWrite
		Configure angles below which KF is deactivated.	16
3676	0E5C	platform.ADCS.spinControllerOmegaDes	readWrite
		Get/Set the the desired spin rate.	16
3677	0E5D	platform.ADCS.spinControllerRhoDes	readWrite
		Get/Set the the desired rho angle.	16
3678	0E5E	platform.ADCS.spinControllerSigmaDes	readWrite
		Get/Set the the desired sigma angle.	16
3679	0E5F	platform.ADCS.positionECI	readOnly
		Get the X, Y, Z ECI Position.	32
3680	0E60	platform.ADCS.velocityECI	readOnly
		Get the X, Y, Z ECI Velocity.	32
3681	0E61	platform.ADCS.commandedDipole	readOnly
		Get the commanded dipole parameter.	16
3840	0F00	platform.CMC.enabled	readWrite
		The flag controlling whether CMC transmission and reception is enabled	1
3841	0F01	platform.CMC.version	readOnly
		The firmware version number from the CMC.	8
3842	0F02	platform.CMC.mode	readWrite
		The modem configuration mode.	2
3843	0F03	platform.CMC.beaconEnable	readWrite
		The beacon enable flag.	1
3844	0F04	platform.CMC.beaconTimeout	readWrite
		The beacon timeout, in minutes.	3
3845	0F05	platform.CMC.beaconInterval	readWrite
		The interval between beacons, in seconds.	7
3846	0F06	platform.CMC.beaconData	readWrite
		The beacon data.	1024
3847	0F07	platform.CMC.txTransparent	readOnly
		Whether the CMC is in transparent mode	1
3848	0F08	platform.CMC.txConvEnabled	readWrite
		Whether or not to use the convolutional encoder.	1
3849	0F09	platform.CMC.txFrequencyOffset	readWrite
		The transmit frequency offset from 400MHz - 420MHz in 25kHz steps.	10
3850	0F0A	platform.CMC.txLock	readOnly
		Transmit frequency lock indicator.	1
3851	0F0B	platform.CMC.txPower	readWrite
		The transmit power amplifier power setting.	2
3852	0F0C	platform.CMC.txFlagsCount	readWrite
		The number of flags bytes transmitted before each packet.	8
3853	0F0D	platform.CMC.txSyncCount	readWrite
		The minimum number of sync bytes transmitted before data transmission.	8
3854	0F0E	platform.CMC.txReady	readOnly
		The transmit ready flag.	1
3855	0F0F	platform.CMC.txReadyThreshold	readWrite
		The threshold for determining whether TX is ready.	13
3856	0F10	platform.CMC.txSpaceAvailable	readOnly
		The number of bytes available in the transmit buffer.	16
3857	0F11	platform.CMC.txPacketCount	readOnly
		The number of packets transmitted.	16
3858	0F12	platform.CMC.txOverrunErrorCount	readOnly
		The number of transmit buffer overrun errors that have occurred.	16
3859	0F13	platform.CMC.rxFrequencyOffset	readWrite
		The receive frequency offset from 140MHz in 12.5kHz steps.	10
3860	0F14	platform.CMC.rxLock	readOnly
		Receive frequency lock indicator.	1
3861	0F15	platform.CMC.rxDtmfAndCounter	readOnly
		Flags indicating if DTMF codes have been received along with a counter.	8
3862	0F16	platform.CMC.rxRssi	readOnly
		Received signal strength indicator.	12
3863	0F17	platform.CMC.rxReady	readOnly
		The receive ready flag.	1
3864	0F18	platform.CMC.rxDataWaiting	readOnly
		The number of bytes waiting in the receive buffer.	16
3865	0F19	platform.CMC.rxFrameCount	readOnly
		The number of valid frames received by the CMC.	16
3866	0F1A	platform.CMC.rxPacketCount	readOnly
		The number of valid packets received from the CMC.	16
3867	0F1B	platform.CMC.rxDroppedErrorCount	readOnly
		The number of received packets that have been dropped.	16
3868	0F1C	platform.CMC.rxCrcErrorCount	readOnly
		The number of frames received with an invalid frame check sequence.	16
3869	0F1D	platform.CMC.rxOverrunErrorCount	readOnly
		The number of receive buffer overrun errors that have occurred.	8
3870	0F1E	platform.CMC.rxProtocolErrorCount	readOnly
		The number of receive protocol errors that have occurred.	16
3871	0F1F	platform.CMC.temperatureSmps	readOnly
		The temperature measured at the CMC switched-mode power supply.	8
3872	0F20	platform.CMC.temperaturePa	readOnly
		The temperature measured at the CMC power amplifier.	8
3873	0F21	platform.CMC.voltage3V3	readOnly
		The voltage of the 3.3V supply.	13
3874	0F22	platform.CMC.voltage5V	readOnly
		The voltage of the 5V supply.	13
3875	0F23	platform.CMC.current3V3	readOnly
		The current being drawn through the 3.3V supply.	16
3876	0F24	platform.CMC.current5V	readOnly
		The current being drawn through the 5V supply.	16
3877	0F25	platform.CMC.debugShowLock	readWrite
		Enable the CMC debug LEDS to show the transmit and receive lock signals.	1
3878	0F26	platform.CMC.debugFlags	readWrite
		The value of the CMC debug LEDS, if debugShowLock is disabled.	2
3879	0F27	platform.CMC.paForwardPower	readOnly
		The PA forward power.	12
3880	0F28	platform.CMC.paReversePower	readOnly
		The PA reverse power.	12
3881	0F29	platform.CMC.CMCAliveCheckFailLim	readWrite
		The number of times the CMC can fail to respond to the command called in the CMCAliveCheck action (in succession) prior to an event being raised that triggers an event action/OBC reset. E.g. if this parameter is 0 or 1, an event will be raised after every failed CMCAliveCheck. If this parameter is 2, an event will be raised after 2 (successive) failed CMCAliveChecks and so on.	8
4096	1000	platform.ADM.FirmwareVersion	readOnly
		The firmware version on the EMOD MSP.	16
4097	1001	platform.ADM.ErrorCounter	readOnly
		The number of errors registered by the ADM firmware.	8
4098	1002	platform.ADM.LastErrorTypes	readOnly
		The last 5 error type that occurred.	40
4099	1003	platform.ADM.PrimResistsStatuses	readOnly
		The status flags for the pins associated with the four primary resistors.	5
4100	1004	platform.ADM.SwitchesStatuses	readOnly
		The status flags for switches on the doors of each antenna element.	5
4101	1005	platform.ADM.SwitchTimes	readOnly
		The burn times for a given primary resistor until the switch opens.	32
4102	1006	platform.ADM.PrimBurnTimes	readOnly
		The burn times for a given primary resistor.	32
4103	1007	platform.ADM.PrimBurnTimeout	readWrite
		The primary resistor burn timeout that will be applied by the MSP to automatically stop a burn. This is set to 120 seconds by default. A value of 0 is equivalent to no timeout.	16
4104	1008	platform.ADM.CommandRepeats	readWrite
		The number of times the OBC should try to send a command to EMOD if/while the command ‘fails’ (i.e. due to EMOD returning 0xFF or due to an I2C error).	8
4105	1009	platform.ADM.ADMAliveCheckFailLim	readWrite
		The number of times the ADM can fail to respond to the command called in the ADMAliveCheck action (in succession) prior to an MSP powercycle being invoked. E.g. if this parameter is 0 or 1, the MSP will be powercycled after every failed ADMAliveCheck. If this parameter is 2, the MSP will be powercycled after 2 (successive) failed ADMAliveChecks and so on.	8
4352	1100	payload.FirmwareImageAccess.ImageStorageChID	readWrite
		The channel ID in which the image is stored.	16
4353	1101	payload.FirmwareImageAccess.ImageBuffer	readWrite
		The buffer containing the software image for the MSP.	328
4354	1102	payload.FirmwareImageAccess.imageCrc	readOnly
		The CRC for the software image that is currently stored in the ImageBuffer.	32
4608	1200	platform.obc.GMODSerial.enabled	readWrite
		The enabled flag	1
4609	1201	platform.obc.GMODSerial.txFailures	readOnly
		The number of transmit failures.	32
4610	1202	platform.obc.GMODSerial.rxFailures	readOnly
		The number of receive failures.	32
4611	1203	platform.obc.GMODSerial.framingErrors	readOnly
		The number of framing errors reported by the UART.	32
4612	1204	platform.obc.GMODSerial.parityErrors	readOnly
		The number of parity errors reported by the UART.	32
4613	1205	platform.obc.GMODSerial.overrunErrors	readOnly
		The number of receive over-run errors reported by the UART.	32
4614	1206	platform.obc.GMODSerial.baudRateParam	readWrite
		The desired baud rate.	32
4864	1300	payload.GMOD.GMODMode	readWrite
		Get/Set the GMOD Mode, where… 0x01 = Idle Mode 0x02 = Experiment Mode 0x03 = CPLD Programme Mode 0x04 = Safe Mode 0x05 = 16 Experiment Mode	4
4865	1301	payload.GMOD.FirmwareVersion	readOnly
		The firmware version on the GMOD MSP.	16
4866	1302	payload.GMOD.ResetCounter	readOnly
		The number of times the GMOD MSP has reset. Rolls over at 127.	8
4867	1303	payload.GMOD.LastResetType	readOnly
		The last reset type that occurred. Value from SYSRSTIV, System Reset register.	8
4868	1304	payload.GMOD.ErrMessages	readOnly
		Returns a 4-byte bit field where each bit corrosponds to a designated error raised within the GMOD MSP. Ask JM for bit mapping or see GMOD functions sheet. Note: reading this value resets the error register to 0.	32
4869	1305	payload.GMOD.ASICReg	readWrite
		ASIC register values (i.e. ASIC_REG_TABLE) on the GMOD MCU. 33 rows, 28 of which can be get/set via this parameter. 4 bytes per row.	32
4870	1306	payload.GMOD.ASICResetPin	readWrite
		Indicates whether the ASIC RST pin is in a reset state. 0x00 - DISABLE 0x01 - ENABLE	2
4871	1307	payload.GMOD.InitASICRegBuffer	readWrite
		ASIC register values to be set when initialising GMOD. 33 rows, 28 of which can be get/set via this parameter. 4 bytes per row.	32
4872	1308	payload.GMOD.WriteRegStatus	readOnly
		The status of the write reg to SIPHRA command.	3
4873	1309	payload.GMOD.ReadRegStatus	readOnly
		The status of the read reg from SIPHRA command.	3
4874	130A	payload.GMOD.RegErrStatus	readOnly
		Read the value of the ERR_O pin on the ASIC indicating parity error in registers.	2
4875	130B	payload.GMOD.ReadRegErrReg	readOnly
		Read individual register parity error status.	32
4876	130C	payload.GMOD.LastPage16Addr	readOnly
		Read the memory address for the last stored 16 channel TTE page.	24
4877	130D	payload.GMOD.LastPage16AddrRx	readOnly
		Updates with the memory address of the last 16 channel TTE page received by the OBC from the MSP.	16
4878	130E	payload.GMOD.LastPageSumAddr	readOnly
		Read the memory address for the last stored summed channel TTE page.	24
4879	130F	payload.GMOD.LastPageSumAddrRx	readOnly
		Updates with the memory address of the last summed channel TTE page received by the OBC from the MSP.	16
4880	1310	payload.GMOD.PageSendTimeout	readWrite
		Get/Set the wait between GMOD transmitting pages of data while streaming. This parameter is initialised as 0x0075 = 200ms. WARNING: care should be taken when decreasing this parameter to ensure that GMOD’s loggers have sufficent buffer space to hold (n*16)/PageSendTimeout worth of data, where n = the period of the logger in seconds.	16
4881	1311	payload.GMOD.PageSendFlag	readWrite
		Indicates whether the OBC is ready (TRUE) or not (FALSE) for GMOD to send a page of data.	2
4882	1312	payload.GMOD.Page16ChRxFailCount	readWrite
		Get/set a counter representing how many times the reception of a 16Ch TTE page of data has failed due to an unexpected memory address being recieved.	16
4883	1313	payload.GMOD.PageSumChRxFailCount	readWrite
		Get/set a counter representing how many times the reception of a SummedCh TTE page of data has failed due to an unexpected memory address being recieved.	16
4884	1314	payload.GMOD.PageRxFailLim	readWrite
		Get/set the limit for how many times the reception of a page of data can fail in succession due to an unexpected memory address being recieved.	16
4885	1315	payload.GMOD.StreamSumChStatus	readOnly
		Indicates whether streaming of summed channel TTE data is enabled (1) / disabled (0).	2
4886	1316	payload.GMOD.Stream16ChStatus	readOnly
		Indicates whether streaming of 16 channel TTE data is enabled (1) / disabled (0).	2
4887	1317	payload.GMOD.Protect16ChStatus	readWrite
		Indicates the 16 channel TTE data in GMOD’s flash is protected (1) / unprotected (0). If Protect16ChStatus = 1, experiment 16 mode cannot be entered. This parameter is automatically set to 1 on entry to experiment 16 mode.	2
4888	1318	payload.GMOD.CrcCalcEnable	readWrite
		Indicates whether a CRC calculation for the summed channel TTE data is performed before storing the data to flash on GMOD. 1 = CRC calculation performed. 0 = CRC calculation not performed. 0xAABBCCDD appended to data instead of a valid CRC.	2
4889	1319	payload.GMOD.StreamHystParams	readWrite
		Get/set the upper (m) and lower (n) thresholds for the hysteresis used to determine which type of data GMOD should next send to the OBC when streaming both summed and 16 channel TTE data. MSByte = M and LSByte = N (i.e. [M, N]). The valid ranges are [0x02, 0x01]-[0xFF, 0xFE]	16
4890	131A	payload.GMOD.SyncTimeStatus	readOnly
		Indicates whether syncing of GMOD’s time from the OBC’s time is still in progress (0), a success (1) or failure (2 or 7). An initialisation value of 0x03 is used prior to any syncing.	3
4891	131B	payload.GMOD.MSPCoarseTime	readOnly
		Returns the current coarse time counter value from the MSP.	32
4892	131C	payload.GMOD.CPLDTimeoutCounter	readOnly
		This counter is incremented every time the MSP times-out on reading a TTE from the CPLD.	8
4893	131D	payload.GMOD.FlashRolloverCounter	readOnly
		This counter is incremented every time the MSP’s summed channel flash address rolls-over frm 0x7FFF to 0x0000.	8
4894	131E	payload.GMOD.CPLDResetPin	readWrite
		Get/Set whether the CPLD RST pin is in a reset state.	2
4895	131F	payload.GMOD.MSPTempCalib	readOnly
		Returns the MSP’s internal temperature sensor calibration values.	32
4896	1320	payload.GMOD.MSPADCCalib	readOnly
		Returns the MSP’s ADC calibration values.	48
4897	1321	payload.GMOD.FlashSR1Reg	readOnly
		Returns the flash SR1 register bits.	16
4898	1322	payload.GMOD.FlashSR2Reg	readOnly
		Returns the flash SR2 register bits.	16
4899	1323	payload.GMOD.DevDescriptorTab	readOnly
		Read the complete GMOD device descriptor table contents.	368
4900	1324	payload.GMOD.BoostConverterEnable	readWrite
		Indicates whether the boost converter is enabled or disabled.	2
4901	1325	payload.GMOD.BiasOffsetEnable	readWrite
		Indicates whether DACB is enabled or disabled.	2
4902	1326	payload.GMOD.BiasOffsetValue	readWrite
		The DACB value.	16
4903	1327	payload.GMOD.TempBiasCompEnable	readWrite
		Indicates whether the automatic temperature bias compensation is enabled or disabled.	2
4904	1328	payload.GMOD.BiasVoltage	readOnly
		Read the ADC values connected to bias voltage.	16
4905	1329	payload.GMOD.BiasOffsetVoltage	readOnly
		Read the ADC value connected to DACB output.	16
4906	132A	payload.GMOD.ConstantCurrEnable	readWrite
		Indicates whether MBias is enabled or disabled.	2
4907	132B	payload.GMOD.ConstantCurrValue	readWrite
		The DACA value that controls the MBias current.	16
4908	132C	payload.GMOD.InitGMODConstantCurrValue	readWrite
		The DACA value that controls the MBias current. NOTE: This parameter is used by the GMODInitialise action when setting the ConstantCurrValue on the MSP.	16
4909	132D	payload.GMOD.ExternalTrigFreq	readWrite
		The fixed frequency at which manual readouts of SIPHRA occurr while in experiment mode. 0x0000: DISABLE TRIGGERS (VALID) 0x0001-0x0012: RESERVED (FAIL) 0x0013-0xFFFE: SET PERIOD (VALID) 0xFFFF: RESERVED (FAIL)	16
4910	132E	payload.GMOD.GMODMSPTemp	readOnly
		Get the temperature of the MSP.	16
4911	132F	payload.GMOD.EraseFlashStatus	readOnly
		Get the status of the flash erase operation.	2
4912	1330	payload.GMOD.TimeIndexLogFreqSum	readWrite
		Defines how frequently (in terms of summed sectors) a coarse time is added to the time index buffer (i.e. the buffer used to faciliate summed channel TTE data downlink logic). I.e. if TimeIndexLogFreq = 3, the coarse time belonging to every 3rd sector will be recorded in the buffer.	8
4913	1331	payload.GMOD.LCBinWidth	readWrite
		The bin width (in milliseconds) to be used for the ‘normal’/logged lightcurve buffer.	16
4914	1332	payload.GMOD.LCADCEventLims	readWrite
		The upper and lower limits to be used when assessing whether ADC event data should be added to the ‘normal’/logged LC buffer. Row 0 is the lower limit and row 1 is the upper limit.	16
4915	1333	payload.GMOD.SpecLowerADCBinLim	readWrite
		The lower limit to be used when assessing whether ADC event data should be added to the ‘normal’/logged spectrum buffer. The allow range is 0 - 4095.	16
4916	1334	payload.GMOD.SpecADCBinWidth	readWrite
		The bin width (in ADC channels) to be used for the logged spectrum buffer. The allowed range is 1 - 16 ADC channels.	8
4917	1335	payload.GMOD.SpecIntTime	readWrite
		The integration time (in seconds) to be used for the ‘normal’/logged spectrum buffer.	16
4918	1336	payload.GMOD.GRBTriggeringEnabled	readWrite
		Indicates whether GRB triggering on incoming summed channel TTE data is enabled or disabled.	1
4919	1337	payload.GMOD.BkgWindowLen	readWrite
		The number of triggering lightcurve buffer bins to be used when calculating the background signal strength. NOTE: BkgWindowLen/SigWindowLen should be an integer prior to proceeding with triggering checks (to allow for proper signal window scaling) and the BkgWindowLen set must be less than SigWindowOffset.	16
4920	1338	payload.GMOD.SigWindowLen	readWrite
		The number of triggering lightcurve buffer bins to be used when calculating the signal strength. NOTE: BkgWindowLen/SigWindowLen should be an integer prior to proceeding with triggering checks (to allow for proper signal window scaling) and (SigWindowLen + SigWindowOffset + 1) must not exceed the max trigger buffer size defined in types.h.	16
4921	1339	payload.GMOD.SigWindowOffset	readWrite
		The number of triggering lightcurve buffer bins to offset when calculating the signal strength. NOTE: (SigWindowLen + SigWindowOffset + 1) must not exceed the max trigger buffer size defined in types.h.	16
4922	133A	payload.GMOD.SigSquaredThreshold	readWrite
		The square of the signal trigger threshold to be used for GRB trigger checks.	32
4923	133B	payload.GMOD.TrigBinWidth	readWrite
		The bin width (in milliseconds) to be used for the triggering lightcurve buffer.	16
4924	133C	payload.GMOD.TrigADCEventLimSlopes	readWrite
		The lower and upper ADC event limits used when assessing whether ADC event data should be considered for trigger checks are given by: (ADC Event Limit) * 1000 = y = (m * Temperature) + c The temperature value is extracted from the TTE data. m is then defined via this parameter, where row 0 defines m for the lower limit equation and row 1 defines m for the upper limit equation.	32
4925	133D	payload.GMOD.TrigADCEventLimIntercepts	readWrite
		The lower and upper ADC event limits used when assessing whether ADC event data should be considered for trigger checks are given by: (ADC Event Limit) * 1000 = y = (m * Temperature) + c The temperature value is extracted from the TTE data. c is then defined via this parameter, where row 0 defines c for the lower limit equation and row 1 defines c for the upper limit equation.	32
4926	133E	payload.GMOD.AllowedTrigTimeGap	readWrite
		The allowed time gap (in millseconds) between TTEs for them to be assessed within the one light curve for triggering.	16
4927	133F	payload.GMOD.AllowedTrigElapsedTime	readWrite
		The total elapsed time (in millseconds) allowed for one trigger.	32
4928	1340	payload.GMOD.ProtectTimeAroundTrig	readWrite
		Defines the amount of time in seconds before (row 0) and after (row 1) a trigger during which TTEs should be protected in a linear channel due the possibility of a GRB signal in the data.	16
4929	1341	payload.GMOD.TrigSpecTimeMultipliers	readWrite
		Multipliers used to define the start and integration times of trigger-associated spectrums, where Spectrum Start Time = Trigger Start Time - (Trigger Elapsed Time in seconds * [Row 0 of this Parameter]) AND where the Spectrum Integration Time = (Trigger Elapsed Time in microseconds * [Row 1 of this Parameter]). Note that Row 1 of this parameter must be greater than 0 and is initialised as 1. This default includes only GRB data (i.e. data from the GRB elapsed time) in the spectrum. Additionally, given Row 0 (which defines the Spectrum Start Time), take care when setting Row 1, such that the spectrum generated actually includes the trigger.	8
4930	1342	payload.GMOD.TrigLCTimeMultipliers	readWrite
		Multipliers used to define the start time and bin width of trigger-associated LCs, where LC Start Time = Trigger Start Time - (Trigger Elapsed Time in seconds * [Row 0 of this Parameter]) AND where the LC bin width = (Trigger Elapsed Time in milliseconds * [Row 1 of this Parameter])/number of bins. Row 0 of this parameter is initialised as 1. Row 1 is initialised as 3. Note that Row 1 of this parameter must be greater than 0. Additionally, given Row 0 (which defines the LC Start Time), take care when setting Row 1, such that the LC generated actually includes the trigger.	8
4931	1343	payload.GMOD.TrigFoMSlope	readWrite
		The negative slope to be used in the FoM function that determines the Delta SigSquared required to update the beacon buffers, where (Required Delta SigSquared) = (-TrigFoMSlope x Delta End Time) + (TrigFoMIntercept).	16
4932	1344	payload.GMOD.TrigFoMIntercept	readWrite
		The y-intercept to be used in the FoM function that determines the Delta SigSquared required to update the beacon buffers, where (Required Delta SigSquared) = (-TrigFoMSlope x Delta End Time) + (TrigFoMIntercept).	16
4933	1345	payload.GMOD.LCBeaconBuffer	readOnly
		Read the current contents of the light curve buffer being read/transmitted by TMBeacon.	1856
4934	1346	payload.GMOD.SpecBeaconBuffer	readOnly
		Read the current contents of the spectrum buffer being read/transmitted by TMBeacon.	1856
4935	1347	payload.GMOD.GRBTriggerCount	readOnly
		Returns the number of times a GRB trigger has occurred. This parameter is persisted through reboots.	16
4936	1348	payload.GMOD.SegFaultCount	readOnly
		Returns the number of segmentation faults occuring on the MSP. The MSP MPU is set up such that there are two regions in FRAM memory: SEG1: RE/WE - dynamic memory and persist. vars SEG2: - SEG3: RE/XE - program code If these permissions are violated, for either type the counter is incremented.	16
4937	1349	payload.GMOD.SegFaultType	readOnly
		Returns the type of the last segmentation fault violation event. The MSP MPU is set up such that there are two regions in FRAM memory: SEG1: RE/WE - dynamic memory and persist. vars SEG2: - SEG3: RE/XE - program code If these permissions are violated, for either type the event type is recorded here.	3
4938	134A	payload.GMOD.CorrBitErrorCount	readOnly
		Returns the number of correctable bit errors detected by the FRAM controller. FRAM ECC supports bit error correction and uncorrectable bit error detection. Correctable errors are generally single-bit errors that are detected and corrected by the hardware, so they do not result in data corruption or system failure.	16
4939	134B	payload.GMOD.NonCorrBitErrorCount	readOnly
		Returns the number of non-correctable bit errors detected by the FRAM controller. FRAM ECC supports bit error correction and uncorrectable bit error detection. Uncorrectable bit errors are always multiple-bit errors, and they indicate memory corruption.	16
4940	134C	payload.GMOD.ForbiddenReadCount	readOnly
		Returns the number of time the flash forbidden region (sum parition only) is accessed while streaming from flash. The forbidden region extends from the current writing pointer address to 3x32kB blocks ahead, thus the forbidon region exists ahead of the writing pointer always.	8
4941	134D	payload.GMOD.BiasAutoIncrement	readWrite
		Get/Set the value that the auto adjust will increment the DACB by if the bias voltage feedback is above or below the value.	16
4942	134E	payload.GMOD.BiasAutoValue	readWrite
		Get/Set the bias feedback value that the auto adjust will try to acheive. This requires a calibration curve (Measured Bias V Bias Voltage Feedback) to determine the actual bias voltage that will be maintained.	16
4943	134F	payload.GMOD.BaudRateSetStatus	readOnly
		Get the status of the baud rate setting operation.	3
4944	1350	payload.GMOD.CommandRepeats	readWrite
		The number of times the OBC should try to send a command to GMOD if/while the command ‘fails’ (i.e. due to GMOD returning 0xFF or due to an I2C error).	8
4945	1351	payload.GMOD.LineNoLastProgrammed	readWrite
		Returns the ID of the firmware or CPLD data row last programmed onto the MSP (and successfully ACK’d). If the firmware/CPLD reprogramme process fails, set this parameter back to 0 to repeat the reprogramme process from scrath.	16
4946	1352	payload.GMOD.CPLDReprogrammeStatus	readOnly
		Returns the status of the most recent CPLD reprogramme operation, where 0x03 = the init. value, 0x00 = in progress, 0x02 = fail and 0x01 = success.	8
4947	1353	payload.GMOD.ABLOffset	readWrite
		WARNING: This parameter is used in the channel hopping logic. It is only being exposed to mitigate issues arising with this logic. Do not change this parameter unless you are familar with its implmentation in this code.	32
4948	1354	payload.GMOD.DP_GMODMode	readOnly
		Implemented for datapool usage.	4
4949	1355	payload.GMOD.DP_ResetCounter	readOnly
		Implemented for datapool usage.	8
4950	1356	payload.GMOD.DP_ErrMessages	readOnly
		Implemented for datapool usage.	32
4951	1357	payload.GMOD.DP_GMODMSPTemp	readOnly
		Implemented for datapool usage.	16
4952	1358	payload.GMOD.DP_LastPage16Addr	readOnly
		Implemented for datapool usage.	24
4953	1359	payload.GMOD.DP_LastPageSumAddr	readOnly
		Implemented for datapool usage.	24
4954	135A	payload.GMOD.DP_StreamSumChStatus	readOnly
		Implemented for datapool usage.	2
4955	135B	payload.GMOD.DP_FlashRolloverCounter	readOnly
		Implemented for datapool usage.	8
4956	135C	payload.GMOD.DP_Stream16ChStatus	readOnly
		Implemented for datapool usage.	2
4957	135D	payload.GMOD.DP_CPLDTimeoutCounter	readOnly
		Implemented for datapool usage.	8
4958	135E	payload.GMOD.DP_BoostConverterEnable	readOnly
		Implemented for datapool usage.	2
4959	135F	payload.GMOD.DP_BiasOffsetEnable	readOnly
		Implemented for datapool usage.	2
4960	1360	payload.GMOD.DP_BiasOffsetValue	readOnly
		Implemented for datapool usage.	16
4961	1361	payload.GMOD.DP_BiasVoltage	readOnly
		Implemented for datapool usage.	16
4962	1362	payload.GMOD.DP_BiasOffsetVoltage	readOnly
		Implemented for datapool usage.	16
4963	1363	payload.GMOD.DP_SegFaultCount	readOnly
		Implemented for datapool usage.	16
4964	1364	payload.GMOD.DP_SegFaultType	readOnly
		Implemented for datapool usage.	3
4965	1365	payload.GMOD.DP_CorrBitErrorCount	readOnly
		Implemented for datapool usage.	16
4966	1366	payload.GMOD.DP_NonCorrBitErrorCount	readOnly
		Implemented for datapool usage.	16
4967	1367	payload.GMOD.DP_ForbiddenReadCount	readOnly
		Implemented for datapool usage.	8
5120	1400	platform.obc.EMODSerial.enabled	readWrite
		The enabled flag	1
5121	1401	platform.obc.EMODSerial.txFailures	readOnly
		The number of transmit failures.	32
5122	1402	platform.obc.EMODSerial.rxFailures	readOnly
		The number of receive failures.	32
5123	1403	platform.obc.EMODSerial.framingErrors	readOnly
		The number of framing errors reported by the UART.	32
5124	1404	platform.obc.EMODSerial.parityErrors	readOnly
		The number of parity errors reported by the UART.	32
5125	1405	platform.obc.EMODSerial.overrunErrors	readOnly
		The number of receive over-run errors reported by the UART.	32
5126	1406	platform.obc.EMODSerial.baudRateParam	readWrite
		The desired baud rate.	32
5376	1500	payload.EMOD.Status	readOnly
		The status buffer will contain one of the following values: 00/UNDEFINED: The firmware never writes this value. 01/IDLE: EMOD is ready for a command. 02/BUSY: EMOD is processing a command. 80/PAYLOAD_ERROR: A command had an incorrect number of bytes specified. 81/INVALID_COMMAND: An unspecified command was sent to EMOD, and ignored. 82/I2C_LOW_TIMEOUT: The I2C CLK signal has been asserted low for too long (i.e. more than 34ms). The I2C interface has been restarted.	8
5377	1501	payload.EMOD.FirmwareVersion	readOnly
		The firmware version on the EMOD MSP. Version is in a major.minor.patch format.	24
5378	1502	payload.EMOD.CmdBuffer	readOnly
		Returns the contents of the command results buffer. This buffer contains the results of the ReadRTDs, ReadBoardTemp or ReadJIDFromFlash command.	80
5379	1503	payload.EMOD.ResetCounter	readOnly
		The number of times the EMOD MSP has reset.	8
5380	1504	payload.EMOD.LastResetType	readOnly
		The code of the last reset type that occurred.	8
5381	1505	payload.EMOD.RTDEnabledMask	readWrite
		The four LS bits in the RTDMask byte define the RTDs that are read in experiment mode, where bit = 1 indicates that the RTD is being polled. Note that this parameter may take some time to update if experiement mode is enabled as it only updates when a page is not being filled (i.e. at the end of a page if there is a page being filled at the time of the command).	8
5382	1506	payload.EMOD.DeltaT	readWrite
		Delta T/Dwell time (in seconds) between RTD samplings. A value of 0 is not permitted.	16
5383	1507	payload.EMOD.LastPageAddr	readOnly
		Read the memory address for the last page stored to flash on the EMOD MSP.	24
5384	1508	payload.EMOD.EMODMode	readWrite
		Get/set the EMOD Mode, where… 0x00 = Idle Mode 0x01 = Experiment Mode If experiment mode is on-going, the mode value will change only when the current page of data being filled has completed. Setting the mode on the MSP via this parameter instead of the setModeSyncTime action above means that time stamp used by the MSP for the experiment data will be synced (+/- 1 sec) with the OBC’s time.	2
5385	1509	payload.EMOD.AutoPollPages	readWrite
		Get/Set a boolean representing whether the OBC is or is not polling EMOD for any available pages.	1
5386	150A	payload.EMOD.NextPageAddrToPoll	readWrite
		Get/set the address of the next page to be polled by the OBC when auto polling is enabled.	16
5387	150B	payload.EMOD.PageRxFailCount	readWrite
		Get/set a counter representing how many times the reception of a page of data has failed due to either an unexpected memory address or an incorrect checksum.	16
5388	150C	payload.EMOD.PageRxFailLim	readWrite
		Get/set the limit for how many times the reception of a page of data can fail in succession before auto polling is disabled.	16
5389	150D	payload.EMOD.SerByteDelay	readWrite
		Get/Set the delay (in microseconds) between consecutive bytes being transmitted by EMOD over serial. The resolution of the timer on EMOD is 100 us. This should be taken into account when setting this parameter. This value defaults as 500us but is persisted through reboots.	16
5390	150E	payload.EMOD.SyncTimePeriodMultiplier	readWrite
		Get/Set the period multiplier used to determine when EMOD’s time is (re-)synced with the OBC. This occurs as part of the PollPages task, which has a 1 minute task period. On a task period where time syncing occurs, the OBC skips polling new pages from EMOD. If this multiplier is set to 0, time syncing is disabled. A minimum, non-zero value of 5 (i.e. time syncing every 5 minutes) is allowed.	16
5391	150F	payload.EMOD.PagesRemainingLim	readWrite
		Get/set the limit for how many pages can be marked as ‘remaining to get’ within one task period. WARNING: the EMODLogger buffer can only hold so many sectors at one time (ask the SW engineer) so ensure that the max number of sectors logged in one period cannot not exceed the buffers limit given the period of the EMODLogger (also ask the SW Engineer).	16
5392	1510	payload.EMOD.PagesRemainingTimeout	readWrite
		Get/set the ‘timeout’ (i.e. the number of consecutive task periods) for which the pages remaining parameter can be > 0 before being set as 0. If this parameter is 0, there is no timeout.	8
5393	1511	payload.EMOD.LineNoLastProgrammed	readWrite
		The line number of the firmware last programmed onto the EMOD MSP (and successfully ACKed). If a firmware rewrite process fails, set this parameter back to zero to be able to repeat the reprogramme command.	16
5394	1512	payload.EMOD.CommandRepeats	readWrite
		The number of times the OBC should try to send a command to EMOD if/while the command ‘fails’ (i.e. due to EMOD returning 0xFF or due to an I2C error).	8
5395	1513	payload.EMOD.LastPageAddrChecked	readWrite
		Get/Set whether a sanity check is performed on the LastPageAddr parameter returned by EMOD while AutoPollPages == TRUE. If this check is (re-)enabled, the parameters associated with the check are reset.	1
5396	1514	payload.EMOD.DP_EMODMode	readOnly
		Implemented for datapool usage.	2
5397	1515	payload.EMOD.DP_ResetCounter	readOnly
		Implemented for datapool usage.	8
5398	1516	payload.EMOD.DP_LastPageAddr	readOnly
		Implemented for datapool usage.	24
5632	1600	payload.WBC.WBCEnabled	readWrite
		Boolean, where: 0 = nothing occurs on entry to the periodic experiment task, and 1 = the WBC experiment is run with whichever controller is the active controller on entry to the periodic experiment task.	1
5633	1601	payload.WBC.activeController	readWrite
		Get/Set the active controller that is use when WBCEnabled = TRUE/1.	8
5634	1602	payload.WBC.controllerUpdateOffset	readWrite
		TODO	8
5635	1603	payload.WBC.controllerUpdatePeriod	readWrite
		TODO	8
5636	1604	payload.WBC.controllerLogPeriod	readWrite
		TODO	8
5637	1605	payload.WBC.controllerExecutionCount	readWrite
		TODO	8
5638	1606	payload.WBC.controllerConfiguration	readWrite
		TODO	240
5639	1607	payload.WBC.algorithmSelect	readWrite
		TODO	256
5888	1700	platform.obc.Time.enabled	readWrite
		The onboard time enable flag.	1
5889	1701	platform.obc.Time.time	readWrite
		The current fine time.	32
6144	1800	core.Storage.description	readOnly
		Packed description of each storage channels	104
6145	1801	core.Storage.isCircular	readWrite
		Flag controlling whether channels are circular or linear	1
6146	1802	core.Storage.isClaimed	readOnly
		Flag indicating whether or not a channel is in use	1
6147	1803	core.Storage.isFull	readOnly
		Flag indicating whether or not a channel is full	1
6148	1804	core.Storage.maxBytes	readOnly
		The maximum size of each channel	32
6149	1805	core.Storage.rowLength	readWrite
		The current row length of each channel	32
6150	1806	core.Storage.numRows	readOnly
		The number of rows in each channel	32
6400	1900	core.ConfigurationManager.enabled	readWrite
		Enable/disable the configuration manager component.	1
6401	1901	core.ConfigurationManager.configurationIds	readWrite
		The configuration context ID for each component in the deployment.	8
6402	1902	core.ConfigurationManager.configSizes	readOnly
		Get the size of the configurations for components.	32
6403	1903	core.ConfigurationManager.profileCount	readOnly
		The number of configuration profiles for a deployment.	8
6656	1A00	platform.obc.FlashDevice.pageAddress	readWrite
		Set the page address to access via pageData” and “blockErase””	19
6657	1A01	platform.obc.FlashDevice.writeRepeats	readWrite
		Control how many pages are written when setting pageData””	32
6658	1A02	platform.obc.FlashDevice.pageData	readWrite
		Access the flash page addressed by the pageAddress parameter	8
6912	1B00	platform.obc.FileSystem.enabled	readWrite
		Enables access to the underlying filesystem	1
6913	1B01	platform.obc.FileSystem.freeFileHandles	readOnly
		The number of file handles the underlying filesystem has available	32
6914	1B02	platform.obc.FileSystem.freeDirEntries	readOnly
		The number of directory entries the underlying filesystem has available	32
7168	1C00	core.FileSystemManager.directoryListing	readOnly
		The result of the last directory listing.	520
7169	1C01	core.FileSystemManager.fileSizes	readOnly
		The size of the files in the last directory listing.	32
7170	1C02	core.FileSystemManager.fileCrc	readOnly
		Returns a CRC for each file.	32
7171	1C03	core.FileSystemManager.busyWithDecompression	readOnly
		Returns 1 if there is decompression in progress, 0 otherwise.	1
7424	1D00	core.Memory.addressWidth	readOnly
		Returns the width of memory addresses on this architecture	8
7425	1D01	core.Memory.blockAddress	readWrite
		The memory block base address to read memory from.	16
7426	1D02	core.Memory.memory	readWrite
		The memory block.	8
7680	1E00	core.OBT.time	readWrite
		The onboard time.	32
7681	1E01	core.OBT.uptime	readOnly
		The uptime since reboot or reset.	32
7682	1E02	core.OBT.fineTime	readOnly
		The onboard fine time.	32
7936	1F00	core.EventDispatcher.enabled	readWrite
		Whether the event dispatcher is enabled.	1
7937	1F01	core.EventDispatcher.pendingCount	readOnly
		The number of events pending in the dispatch queue.	32
7938	1F02	core.EventDispatcher.eventCount	readOnly
		The total number of events dispatched.	32
7939	1F03	core.EventDispatcher.overflowCount	readOnly
		The number of events not dispatched due to queue overflow.	32
7940	1F04	core.EventDispatcher.lastEvent	readOnly
		The signature of the last event dispatched.	64
8192	2000	platform.obc.PPS.peripheralEnabled	readWrite
		Set whether the peripheral is enabled	1
8193	2001	platform.obc.PPS.locked	readOnly
		Whether the PPS output is locked to the input	1
8194	2002	platform.obc.PPS.adjusted	readOnly
		Set if the peripheral output frequency has changed	1
8195	2003	platform.obc.PPS.inputIgnored	readWrite
		Set whether to ignore, or attempt to synchronise to, the input signal	1
8196	2004	platform.obc.PPS.nominalReturnEnabled	readWrite
		Set whether the output should return to nominal timing when unlocked	1
8197	2005	platform.obc.PPS.syncToFallingEdge	readWrite
		Defines which input edge to synchronise to	1
8198	2006	platform.obc.PPS.outputIsActiveLow	readWrite
		Polarity of generated output pulse	1
8199	2007	platform.obc.PPS.measuredSecond	readOnly
		Length of 1 input second in units of the internal clock	32
8200	2008	platform.obc.PPS.rtcSeconds	readWrite
		Number of elapsed seconds	32
8201	2009	platform.obc.PPS.nominalSecond	readOnly
		Length of 1 nominal second in units of the internal clock	32
8202	200A	platform.obc.PPS.alarmEnabled	readWrite
		If set, an alarm will be triggered when RTC time matches the alarm time.	1
8203	200B	platform.obc.PPS.alarmSeconds	readWrite
		The full seconds part of the alarm time	32
8204	200C	platform.obc.PPS.alarmSubSeconds	readWrite
		The fractional seconds part of the alarm time. This feature is only supported on core version 2 and above.	32
8205	200D	platform.obc.PPS.interruptDelay	readWrite
		Phase delay of the pulse interrupt relative to the output pulse itself.	32
8206	200E	platform.obc.PPS.pulseCallbackDelays	readWrite
		Phase delay of callbacks relative to the pulse interrupt.	32
8207	200F	platform.obc.PPS.pulseCallbackLatestStart	readOnly
		Phase delay of callbacks relative to the pulse interrupt.	32
8208	2010	platform.obc.PPS.pulseCallbackLatestFinish	readOnly
		Phase delay of callbacks relative to the pulse interrupt.	32
8209	2011	platform.obc.PPS.pulseCallbackLateCount	readOnly
		Phase delay of callbacks relative to the pulse interrupt.	32
8210	2012	platform.obc.PPS.pulseCallbackFailCount	readOnly
		Phase delay of callbacks relative to the pulse interrupt.	32
8448	2100	platform.obc.GPSSerial.enabled	readWrite
		The enabled flag	1
8449	2101	platform.obc.GPSSerial.txFailures	readOnly
		The number of transmit failures.	32
8450	2102	platform.obc.GPSSerial.rxFailures	readOnly
		The number of receive failures.	32
8451	2103	platform.obc.GPSSerial.framingErrors	readOnly
		The number of framing errors reported by the UART.	32
8452	2104	platform.obc.GPSSerial.parityErrors	readOnly
		The number of parity errors reported by the UART.	32
8453	2105	platform.obc.GPSSerial.overrunErrors	readOnly
		The number of receive over-run errors reported by the UART.	32
8704	2200	platform.obc.GPS.enabled	readWrite
		Whether the component is enabled/disabled.	1
8705	2201	platform.obc.GPS.lastFrame	readOnly
		Contains the last retrieved ASCII debug frame.	18048
8706	2202	platform.obc.GPS.timeSinceLastStateVec	readOnly
		Returns the onboard time since the state vector was set.	32
8707	2203	platform.obc.GPS.stateVec	readOnly
		Get a state vector record.	376
8708	2204	platform.obc.GPS.validRxMsgCount	readOnly
		returns how many valid GPS messages have been received since startup.	16
8709	2205	platform.obc.GPS.invalidRxMsgCount	readOnly
		returns how many invalid GPS messages have been received since startup.	16
8710	2206	platform.obc.GPS.tasEpochOffset	readWrite
		The offset of the time set through the ‘newTimeUpdate’ service relative to GPS time measured in seconds.	32
8711	2207	platform.obc.GPS.LastGpsTimeLog	readOnly
		Returns the last recorded GPS time (in nanoseconds). This parameter is primarily being exposed for logging, hence the name to differentiate it from other parameters with similar names.	64
8712	2208	platform.obc.GPS.UpdateGpsTimeLog	readOnly
		Returns the time at which the State Vector was last updated. This parameter is primarily being exposed for logging, hence the name to differentiate it from other parameters with similar names. Row 0 and 1 are the basic and fractional time, respectively.	32
8713	2209	platform.obc.GPS.LockLostCount	readOnly
		This parameter increments when the GPS lock state changes from acquired to lost.	32
8714	220A	platform.obc.GPS.LockAcquiredCount	readOnly
		This parameter increments when the GPS lock state changes from lost to acquired.	32
8715	220B	platform.obc.GPS.lastValidStateVec	readOnly
		Get the last valid state vector record.	296
8960	2300	comms.Serial.enabled	readWrite
		The enabled flag	1
8961	2301	comms.Serial.txFailures	readOnly
		The number of transmit failures.	32
8962	2302	comms.Serial.rxFailures	readOnly
		The number of receive failures.	32
8963	2303	comms.Serial.framingErrors	readOnly
		The number of framing errors reported by the UART.	32
8964	2304	comms.Serial.parityErrors	readOnly
		The number of parity errors reported by the UART.	32
8965	2305	comms.Serial.overrunErrors	readOnly
		The number of receive over-run errors reported by the UART.	32
8966	2306	comms.Serial.baudRateParam	readWrite
		The desired baud rate.	32
9216	2400	comms.TMTCBuffer.spacelinkTxEnable	readWrite
		Flag specifying whether packets should be transmitted on the space link.	1
9217	2401	comms.TMTCBuffer.umbilicalTxEnable	readWrite
		Flag specifying whether packets should be transmitted on the umbilical.	1
9218	2402	comms.TMTCBuffer.umbilicalRxEnable	readWrite
		Flag specifying whether packets should be received from the umbilical.	1
9219	2403	comms.TMTCBuffer.umbilicalTimeout	readWrite
		Time, in seconds, after initialisation when the umbilical is disabled.	16
9220	2404	comms.TMTCBuffer.txCount	readOnly
		The number of packets transmitted	16
9221	2405	comms.TMTCBuffer.rxCount	readOnly
		The number of packets received	16
9472	2500	comms.HMAC.isAuthenticating	readWrite
		Whether the component is authenticating incoming frames.	1
9473	2501	comms.HMAC.isKeyValid	readOnly
		Whether the key is valid, or if it has become corrupt.	1
9474	2502	comms.HMAC.sequenceNumber	readWrite
		Get and set the frame sequence number.	24
9475	2503	comms.HMAC.updateSeqNum	readWrite
		Determines if the SequenceNumber parameter should be updated as authenticated frames are recieved. This parameter should ONLY be set to FALSE in the event where RF transmission must be disabled and isAuthenticating = FALSE is not desired. It will allow for some security without the uncertainty of what the current Sequence Number is while RF is off.	1
9476	2504	comms.HMAC.spacecraftId	readOnly
		The ID for the spacecraft	8
9477	2505	comms.HMAC.authenticatedFrameCount	readOnly
		Counts the number of authentic frames received.	16
9478	2506	comms.HMAC.failedAuthenticationCount	readOnly
		Counts the number of frames received that failed authentication.	8
9479	2507	comms.HMAC.droppedFrameCount	readOnly
		frames that were dropped for reasons other than failing authentication.	16
9480	2508	comms.HMAC.seqResyncCount	readOnly
		The number of times that the sequence counter has been resynced.	8
9728	2600	comms.TmSpaceDataLink.isOIDEnabled	readWrite
		Whether the possibility to generate frame with Only Idle Data is enabled.	1
9984	2700	comms.SpacePacket.lenErrorCount	readOnly
		The number of times an invalid packet length was encountered.	32
9985	2701	comms.SpacePacket.apidErrorCount	readOnly
		The number of invalid APIDs received.	32
9986	2702	comms.SpacePacket.crcErrorCount	readOnly
		The number of times a CRC error was encountered.	32
9987	2703	comms.SpacePacket.fieldErrorCount	readOnly
		The number of field errors. These are errors in other packet fields.	32
10240	2800	comms.pus.PUSLDT.txTransferState	readOnly
		Each row indicates if the state of the corresponding transmit transfer	3
10241	2801	comms.pus.PUSLDT.txTransferTransactionId	readOnly
		Each row contains the transaction ID for the corresponding transmit transfer	8
10242	2802	comms.pus.PUSLDT.txTransferTimeoutCount	readOnly
		Each row contains the timeout count for the corresponding transmit transfer	8
10243	2803	comms.pus.PUSLDT.rxTransferState	readOnly
		Each row indicates if the state of the corresponding receive transfer	3
10244	2804	comms.pus.PUSLDT.rxTransferTransactionId	readOnly
		Each row contains the transaction ID for the corresponding receive transfer	8
10245	2805	comms.pus.PUSLDT.rxTransferTimeoutCount	readOnly
		Each row contains the timeout count for the corresponding receive transfer	8
10246	2806	comms.pus.PUSLDT.txTimeout	readWrite
		The time after which a transmission transfer should be re-attempted	32
10247	2807	comms.pus.PUSLDT.txMaxTimeouts	readWrite
		The number of transmission timeouts permitted	8
10248	2808	comms.pus.PUSLDT.rxTimeout	readWrite
		The time after which a reception negative acknowledgement should be sent	32
10249	2809	comms.pus.PUSLDT.rxMaxTimeouts	readWrite
		The number of reception timeouts permitted	8
10250	280A	comms.pus.PUSLDT.txLostTransactions	readOnly
		The number of lost (leaked) transmit transactions	32
10251	280B	comms.pus.PUSLDT.rxLostTransactions	readOnly
		The number of lost (leaked) transmit transactions	32
10252	280C	comms.pus.PUSLDT.rxProcessingErrors	readOnly
		The number of processing errors during receive	32
10496	2900	cdh.tmtc.TMBeacon.enabled	readWrite
		The flag controlling the sending of all frames	1
10497	2901	cdh.tmtc.TMBeacon.frameDefinitions	readWrite
		Packed records defining each beacon frame to be sent	40
10498	2902	cdh.tmtc.TMBeacon.frameParams	readWrite
		The parameter IDs for each of the beacon frames	16
10499	2903	cdh.tmtc.TMBeacon.frameEnabled	readWrite
		The enable flags for each of the beacon frames	1
10500	2904	cdh.tmtc.TMBeacon.frameEnabledBitmask	readWrite
		A bitmask representing the frameEnabled parameter.	16
10501	2905	cdh.tmtc.TMBeacon.framePeriodMultipliers	readWrite
		The period multipliers for each of the beacon frames	8
10502	2906	cdh.tmtc.TMBeacon.frameSid	readOnly
		Returns the SID of a frame.	8
10752	2A00	cdh.tmtc.TMDebug.debugLevel	readWrite
		The level of debug messages which will be reported.	2
10753	2A01	cdh.tmtc.TMDebug.includeSourceRef	readWrite
		If true then debug messages will include a reference to the source file	1
10754	2A02	cdh.tmtc.TMDebug.includeThreadID	readOnly
		If true then debug messages will include the source thread ID	1
10755	2A03	cdh.tmtc.TMDebug.messageCount	readOnly
		The number of debug messages processed.	32
10756	2A04	cdh.tmtc.TMDebug.messagesDropped	readOnly
		The number of debug messages dropped.	32
10757	2A05	cdh.tmtc.TMDebug.transactionsLost	readOnly
		The number of transmission transactions lost.	8
11008	2B00	cdh.tmtc.TMTCAction.enabled	readWrite
		The enabled flag for the TMTCAction.	1
11009	2B01	cdh.tmtc.TMTCAction.lastTcSignature	readOnly
		The signature of the last processed telecommand.	32
11264	2C00	cdh.tmtc.TMTCParam.enabled	readWrite
		The enabled flag for the TMTCParam.	1
11265	2C01	cdh.tmtc.TMTCParam.lastTcSignature	readOnly
		The signature of the last processed telecommand.	32
11520	2D00	cdh.tmtc.TMTCEvent.enabled	readWrite
		The enabled flag for the TMTCEvent.	1
11521	2D01	cdh.tmtc.TMTCEvent.eventEnable	readWrite
		An enabled flag for each event type.	1
11776	2E00	cdh.tmtc.TMTCTransfer.enabled	readWrite
		The enabled flag for the TMTCTransfer.	1
11777	2E01	cdh.tmtc.TMTCTransfer.lastTcSignature	readOnly
		The signature of the last processed telecommand.	32
11778	2E02	cdh.tmtc.TMTCTransfer.getTransferInProgress	readOnly
		Each row indicates if the corresponding get transfer is in progress	1
11779	2E03	cdh.tmtc.TMTCTransfer.getTransferTransactionId	readOnly
		Each row contains the transaction ID for the corresponding get transfer	8
11780	2E04	cdh.tmtc.TMTCTransfer.setTransferInProgress	readOnly
		Each row indicates if the corresponding set transfer is in progress	1
11781	2E05	cdh.tmtc.TMTCTransfer.setTransferTransactionId	readOnly
		Each row contains the transaction ID for the corresponding set transfer	8
12032	2F00	cdh.telemetry.DataPool.lifeTime	readWrite
		How long a pooled parameter can be considered valid in seconds.	32
12033	2F01	cdh.telemetry.DataPool.paramRefreshTime	readOnly
		Lists the onboard time when a parameter was last refreshed.	32
12034	2F02	cdh.telemetry.DataPool.paramRefreshStatus	readOnly
		The status of the last attempt to refresh a parameter	32
12035	2F03	cdh.telemetry.DataPool.paramValid	readOnly
		Returns whether a parameter is marked as valid.	1
12036	2F04	cdh.telemetry.DataPool.platform.CMC.enabled	readWrite
		The flag controlling whether CMC transmission and reception is enabled	1
12037	2F05	cdh.telemetry.DataPool.platform.CMC.version	readOnly
		The firmware version number from the CMC.	8
12038	2F06	cdh.telemetry.DataPool.platform.CMC.mode	readWrite
		The modem configuration mode.	2
12039	2F07	cdh.telemetry.DataPool.platform.CMC.beaconEnable	readWrite
		The beacon enable flag.	1
12040	2F08	cdh.telemetry.DataPool.platform.CMC.beaconTimeout	readWrite
		The beacon timeout, in minutes.	3
12041	2F09	cdh.telemetry.DataPool.platform.CMC.beaconInterval	readWrite
		The interval between beacons, in seconds.	7
12042	2F0A	cdh.telemetry.DataPool.platform.CMC.beaconData	readWrite
		The beacon data.	1024
12043	2F0B	cdh.telemetry.DataPool.platform.CMC.txTransparent	readOnly
		Whether the CMC is in transparent mode	1
12044	2F0C	cdh.telemetry.DataPool.platform.CMC.txConvEnabled	readWrite
		Whether or not to use the convolutional encoder.	1
12045	2F0D	cdh.telemetry.DataPool.platform.CMC.txFrequencyOffset	readWrite
		The transmit frequency offset from 400MHz - 420MHz in 25kHz steps.	10
12046	2F0E	cdh.telemetry.DataPool.platform.CMC.txLock	readOnly
		Transmit frequency lock indicator.	1
12047	2F0F	cdh.telemetry.DataPool.platform.CMC.txPower	readWrite
		The transmit power amplifier power setting.	2
12048	2F10	cdh.telemetry.DataPool.platform.CMC.txFlagsCount	readWrite
		The number of flags bytes transmitted before each packet.	8
12049	2F11	cdh.telemetry.DataPool.platform.CMC.txSyncCount	readWrite
		The minimum number of sync bytes transmitted before data transmission.	8
12050	2F12	cdh.telemetry.DataPool.platform.CMC.txReady	readOnly
		The transmit ready flag.	1
12051	2F13	cdh.telemetry.DataPool.platform.CMC.txReadyThreshold	readWrite
		The threshold for determining whether TX is ready.	13
12052	2F14	cdh.telemetry.DataPool.platform.CMC.txSpaceAvailable	readOnly
		The number of bytes available in the transmit buffer.	16
12053	2F15	cdh.telemetry.DataPool.platform.CMC.txPacketCount	readOnly
		The number of packets transmitted.	16
12054	2F16	cdh.telemetry.DataPool.platform.CMC.txOverrunErrorCount	readOnly
		The number of transmit buffer overrun errors that have occurred.	16
12055	2F17	cdh.telemetry.DataPool.platform.CMC.rxFrequencyOffset	readWrite
		The receive frequency offset from 140MHz in 12.5kHz steps.	10
12056	2F18	cdh.telemetry.DataPool.platform.CMC.rxLock	readOnly
		Receive frequency lock indicator.	1
12057	2F19	cdh.telemetry.DataPool.platform.CMC.rxDtmfAndCounter	readOnly
		Flags indicating if DTMF codes have been received along with a counter.	8
12058	2F1A	cdh.telemetry.DataPool.platform.CMC.rxRssi	readOnly
		Received signal strength indicator.	12
12059	2F1B	cdh.telemetry.DataPool.platform.CMC.rxReady	readOnly
		The receive ready flag.	1
12060	2F1C	cdh.telemetry.DataPool.platform.CMC.rxDataWaiting	readOnly
		The number of bytes waiting in the receive buffer.	16
12061	2F1D	cdh.telemetry.DataPool.platform.CMC.rxFrameCount	readOnly
		The number of valid frames received by the CMC.	16
12062	2F1E	cdh.telemetry.DataPool.platform.CMC.rxPacketCount	readOnly
		The number of valid packets received from the CMC.	16
12063	2F1F	cdh.telemetry.DataPool.platform.CMC.rxDroppedErrorCount	readOnly
		The number of received packets that have been dropped.	16
12064	2F20	cdh.telemetry.DataPool.platform.CMC.rxCrcErrorCount	readOnly
		The number of frames received with an invalid frame check sequence.	16
12065	2F21	cdh.telemetry.DataPool.platform.CMC.rxOverrunErrorCount	readOnly
		The number of receive buffer overrun errors that have occurred.	8
12066	2F22	cdh.telemetry.DataPool.platform.CMC.rxProtocolErrorCount	readOnly
		The number of receive protocol errors that have occurred.	16
12067	2F23	cdh.telemetry.DataPool.platform.CMC.temperatureSmps	readOnly
		The temperature measured at the CMC switched-mode power supply.	8
12068	2F24	cdh.telemetry.DataPool.platform.CMC.temperaturePa	readOnly
		The temperature measured at the CMC power amplifier.	8
12069	2F25	cdh.telemetry.DataPool.platform.CMC.voltage3V3	readOnly
		The voltage of the 3.3V supply.	13
12070	2F26	cdh.telemetry.DataPool.platform.CMC.voltage5V	readOnly
		The voltage of the 5V supply.	13
12071	2F27	cdh.telemetry.DataPool.platform.CMC.current3V3	readOnly
		The current being drawn through the 3.3V supply.	16
12072	2F28	cdh.telemetry.DataPool.platform.CMC.current5V	readOnly
		The current being drawn through the 5V supply.	16
12073	2F29	cdh.telemetry.DataPool.platform.CMC.debugShowLock	readWrite
		Enable the CMC debug LEDS to show the transmit and receive lock signals.	1
12074	2F2A	cdh.telemetry.DataPool.platform.CMC.debugFlags	readWrite
		The value of the CMC debug LEDS, if debugShowLock is disabled.	2
12075	2F2B	cdh.telemetry.DataPool.platform.CMC.paForwardPower	readOnly
		The PA forward power.	12
12076	2F2C	cdh.telemetry.DataPool.platform.CMC.paReversePower	readOnly
		The PA reverse power.	12
12077	2F2D	cdh.telemetry.DataPool.platform.CMC.CMCAliveCheckFailLim	readWrite
		The number of times the CMC can fail to respond to the command called in the CMCAliveCheck action (in succession) prior to an event being raised that triggers an event action/OBC reset. E.g. if this parameter is 0 or 1, an event will be raised after every failed CMCAliveCheck. If this parameter is 2, an event will be raised after 2 (successive) failed CMCAliveChecks and so on.	8
12078	2F2E	cdh.telemetry.DataPool.platform.BAT.batteryCurrentDir	readOnly
		Returns whether the battery is charging	1
12079	2F2F	cdh.telemetry.DataPool.platform.BAT.batteryCurrent	readOnly
		Current for the batteries.	10
12080	2F30	cdh.telemetry.DataPool.platform.BAT.batteryVoltage	readOnly
		Voltage for the battery buses.	10
12081	2F31	cdh.telemetry.DataPool.platform.BAT.boardTemperature	readOnly
		Returns the board temperature.	10
12082	2F32	cdh.telemetry.DataPool.platform.BAT.batteryTemperature	readOnly
		Temperature for the batteries.	10
12083	2F33	cdh.telemetry.DataPool.platform.BAT.batteryHeaterStatus	readOnly
		Status of the heaters for the batteries.	10
12084	2F34	cdh.telemetry.DataPool.platform.BAT.version	readOnly
		Version information.	16
12085	2F35	cdh.telemetry.DataPool.platform.BAT.status	readOnly
		Status information.	16
12086	2F36	cdh.telemetry.DataPool.platform.BAT.lastError	readOnly
		Returns the last error.	8
12087	2F37	cdh.telemetry.DataPool.platform.BAT.romChecksum	readOnly
		Returns a generated checksum of the ROM contents.	16
12088	2F38	cdh.telemetry.DataPool.platform.BAT.manualSoftResetCount	readOnly
		Returns the amount of times that the user has reset the system.	8
12089	2F39	cdh.telemetry.DataPool.platform.BAT.autoResetCount	readOnly
		Returns the number times the PIC watchdog has reset the board.	8
12090	2F3A	cdh.telemetry.DataPool.platform.BAT.brownOutResetCount	readOnly
		Returns the number of brown-out resets that have occurred.	8
12091	2F3B	cdh.telemetry.DataPool.platform.BAT.heaterAutomationEnabled	readWrite
		Whether the heater automation is enabled.	1
12092	2F3C	cdh.telemetry.DataPool.platform.BAT.packedHeaterStatus	readOnly
		The Heater Statuses as booleans.	1
12093	2F3D	cdh.telemetry.DataPool.platform.EPS.version	readOnly
		Gets the firmware version information.	16
12094	2F3E	cdh.telemetry.DataPool.platform.EPS.status	readOnly
		Gets status information.	8
12095	2F3F	cdh.telemetry.DataPool.platform.EPS.lastError	readOnly
		Returns the last error.	8
12096	2F40	cdh.telemetry.DataPool.platform.EPS.romChecksum	readOnly
		Returns a generated checksum of the ROM contents.	16
12097	2F41	cdh.telemetry.DataPool.platform.EPS.watchDogTimeout	readWrite
		Gets or sets the time to pass before the watchdog times out.	7
12098	2F42	cdh.telemetry.DataPool.platform.EPS.brownOutResetCount	readOnly
		Returns the number of brown-out resets that have occurred.	8
12099	2F43	cdh.telemetry.DataPool.platform.EPS.autoResetCount	readOnly
		Returns the number times the PIC watchdog has reset the board.	8
12100	2F44	cdh.telemetry.DataPool.platform.EPS.watchdogResetCount	readOnly
		Get the number of times that the comms watchdog has reset the system.	8
12101	2F45	cdh.telemetry.DataPool.platform.EPS.softResetCount	readOnly
		Returns the amount of times that the user has reset the system.	8
12102	2F46	cdh.telemetry.DataPool.platform.EPS.switchVoltages	readOnly
		Voltage measurements for the switches.	10
12103	2F47	cdh.telemetry.DataPool.platform.EPS.switchCurrents	readOnly
		Measurements for the current of the switches.	10
12104	2F48	cdh.telemetry.DataPool.platform.EPS.initialSwitchStates	readWrite
		Get or set the initial states of one or more switches.	1
12105	2F49	cdh.telemetry.DataPool.platform.EPS.initialSwitchStatesBitmap	readWrite
		Get or set the initial states of all the switches.	10
12106	2F4A	cdh.telemetry.DataPool.platform.EPS.expectedSwitchStates	readWrite
		Get or set the expected state of one or more switches.	1
12107	2F4B	cdh.telemetry.DataPool.platform.EPS.expectedSwitchStatesBitmap	readWrite
		Get or set the expected state of the 10 switches.	10
12108	2F4C	cdh.telemetry.DataPool.platform.EPS.actualSwitchStates	readOnly
		Returns the actual state of one or more switches.	1
12109	2F4D	cdh.telemetry.DataPool.platform.EPS.actualSwitchStatesBitmap	readOnly
		Returns the actual state of all the switches.	10
12110	2F4E	cdh.telemetry.DataPool.platform.EPS.switchOvercurrentBitmap	readOnly
		Whether an over-current trip has been detected for a switch	10
12111	2F4F	cdh.telemetry.DataPool.platform.EPS.switchTimerLimit	readWrite
		The limit for the switch timers.	8
12112	2F50	cdh.telemetry.DataPool.platform.EPS.switchTimerElapsed	readOnly
		Returns the current value for the switch timers.	8
12113	2F51	cdh.telemetry.DataPool.platform.EPS.boardTemperature	readOnly
		Get the temperature of the board.	10
12114	2F52	cdh.telemetry.DataPool.platform.EPS.daughterboardTemperature	readOnly
		Get the temperature of the daughterboard.	10
12115	2F53	cdh.telemetry.DataPool.platform.EPS.solarArrayTemperatures	readOnly
		Temperature measurements for all solar arrays.	10
12116	2F54	cdh.telemetry.DataPool.platform.EPS.solarArrayCurrents	readOnly
		Measurement of current for all solar arrays.	10
12117	2F55	cdh.telemetry.DataPool.platform.EPS.solarArraysCurrentTotal	readOnly
		Returns the total current retrieved by the BCRs.	10
12118	2F56	cdh.telemetry.DataPool.platform.EPS.solarArraysVoltageTotal	readOnly
		Returns the total voltage retrieved by the BCRs.	10
12119	2F57	cdh.telemetry.DataPool.platform.EPS.solarArrayIlluminated	readOnly
		Returns the sun detector values for the solar arrays.	10
12120	2F58	cdh.telemetry.DataPool.platform.EPS.solarArrayVoltages	readOnly
		Voltage measurements for the solar array pairs.	10
12121	2F59	cdh.telemetry.DataPool.platform.EPS.busVoltages	readOnly
		Voltage measurements for the buses.	10
12122	2F5A	cdh.telemetry.DataPool.platform.EPS.busCurrents	readOnly
		Measurements for the current of the buses.	10
12123	2F5B	cdh.telemetry.DataPool.platform.EPS.busCurrentDraws	readOnly
		The current drawn by the EPS.	10
12124	2F5C	cdh.telemetry.DataPool.platform.ADCS.rawGyroRateTotalSqrd	readOnly
		Returns the squared total raw gyro rate value.	32
12125	2F5D	cdh.telemetry.DataPool.platform.ADCS.rawGyroRate	readOnly
		Returns a packed record of the raw gyro data for each axis.	16
12126	2F5E	cdh.telemetry.DataPool.platform.ADCS.gyroStatus	readOnly
		Returns the status byte for each of the axes.	24
12127	2F5F	cdh.telemetry.DataPool.platform.ADCS.mtm1Raw	readOnly
		Provides the raw value for magnetometer 1’s sensors on board.	16
12128	2F60	cdh.telemetry.DataPool.platform.ADCS.mtm2Raw	readOnly
		Provides the raw value for magnetometer 2’s sensors on board.	16
12129	2F61	cdh.telemetry.DataPool.platform.ADCS.fss1Unfiltered	readOnly
		returns the unfiltered fine sun sensor readings.	32
12130	2F62	cdh.telemetry.DataPool.platform.ADCS.fss1Filtered	readOnly
		returns the filtered fine sun sensor readings.	32
12131	2F63	cdh.telemetry.DataPool.platform.ADCS.fss1AlphaAngle	readOnly
		returns the fine sun sensor alpha angle.	32
12132	2F64	cdh.telemetry.DataPool.platform.ADCS.fss1BetaAngle	readOnly
		returns the fine sun sensor beta angle.	32
12133	2F65	cdh.telemetry.DataPool.platform.ADCS.fss1ErrorCodes	readOnly
		returns the fine sun sensor error codes for each sensor.	4
12134	2F66	cdh.telemetry.DataPool.platform.ADCS.cssRaw	readOnly
		Returns the raw ADC value for each Coarse Sun Sensor.	16
12135	2F67	cdh.telemetry.DataPool.platform.ADCS.mtqDirectionDuty	readOnly
		The magnetorquer’s direction and duty cycle.	8
12136	2F68	cdh.telemetry.DataPool.platform.ADCS.processedGyroRate	readOnly
		The processed rate gyroscope sensor data used by the ADCS.	16
12137	2F69	cdh.telemetry.DataPool.platform.ADCS.processedMtm1	readOnly
		The processed sensor data from magnetometer 1.	16
12138	2F6A	cdh.telemetry.DataPool.platform.ADCS.processedMtm2	readOnly
		The processed sensor data from magnetometer 2.	16
12139	2F6B	cdh.telemetry.DataPool.platform.ADCS.processedMtmADCS	readOnly
		The processed magnetometer sensor data used by the ADCS.	16
12140	2F6C	cdh.telemetry.DataPool.platform.ADCS.sunProcessed	readOnly
		The processed sun vector data used by the ADCS.	16
12141	2F6D	cdh.telemetry.DataPool.platform.ADCS.positionECI	readOnly
		Get the X, Y, Z ECI Position.	32
12142	2F6E	cdh.telemetry.DataPool.platform.ADCS.velocityECI	readOnly
		Get the X, Y, Z ECI Velocity.	32
12143	2F6F	cdh.telemetry.DataPool.platform.ADCS.latLongAlt	readOnly
		Get the latitude, longitude and altitude data.	32
12144	2F70	cdh.telemetry.DataPool.platform.ADCS.estAtt	readOnly
		The estimated attitude of the platform.	16
12145	2F71	cdh.telemetry.DataPool.platform.ADCS.mtmActiveSelected	readOnly
		Whether a magnetometer axis is active and being used.	2
12146	2F72	cdh.telemetry.DataPool.platform.ADCS.fssActiveSelected	readOnly
		Whether a fine sun sensor is active and being used.	2
12147	2F73	cdh.telemetry.DataPool.platform.ADCS.cssActiveSelected	readOnly
		Whether a coarse sun sensor is active and being used.	2
12148	2F74	cdh.telemetry.DataPool.platform.ADCS.sensorBit	readOnly
		Sensor Built In Test.	10
12149	2F75	cdh.telemetry.DataPool.platform.ADCS.attitudeBit	readOnly
		Attitude Built In Test.	4
12150	2F76	cdh.telemetry.DataPool.platform.ADCS.triadLimitBodyFrame	readWrite
		Configure angles below which KF is deactivated.	16
12151	2F77	cdh.telemetry.DataPool.platform.ADCS.triadLimitECI	readWrite
		Configure angles below which KF is deactivated.	16
12152	2F78	cdh.telemetry.DataPool.platform.ADCS.commandedDipole	readOnly
		Get the commanded dipole parameter.	16
12153	2F79	cdh.telemetry.DataPool.platform.ADCS.actuatorBit	readOnly
		Actuator Built In Test.	16
12154	2F7A	cdh.telemetry.DataPool.platform.ADCS.detumbleCounter	readOnly
		Counter of time in detumble.	16
12155	2F7B	cdh.telemetry.DataPool.platform.ADCS.spinControllerState	readOnly
		Get the state of the spin stablised controller.	16
12156	2F7C	cdh.telemetry.DataPool.platform.ADCS.busVoltages	readOnly
		Returns the voltages of the buses.	16
12157	2F7D	cdh.telemetry.DataPool.platform.ADCS.busCurrents	readOnly
		Returns the currents of the buses.	16
12158	2F7E	cdh.telemetry.DataPool.platform.ADCS.analogueToDigitalReference	readOnly
		Returns the reference value used for analogue to digital conversion.	16
12159	2F7F	cdh.telemetry.DataPool.platform.ADCS.sensorCurrent	readOnly
		Returns the current being used by the on board sensors.	16
12160	2F80	cdh.telemetry.DataPool.platform.ADCS.rawGyroTemperature	readOnly
		Returns the raw temperatures for each of the gyro sensors	16
12161	2F81	cdh.telemetry.DataPool.platform.ADCS.mtm1Temperature	readOnly
		Returns the temperature of magnetometer 1.	16
12162	2F82	cdh.telemetry.DataPool.platform.ADCS.mtm2Temperature	readOnly
		Returns the temperature of magnetometer 2.	16
12163	2F83	cdh.telemetry.DataPool.platform.ADCS.eccStatisticsPacked	readOnly
		Returns a packed record of the available ECC statistics.	16
12164	2F84	cdh.telemetry.DataPool.platform.ADCS.fss1ErrorCount	readOnly
		returns the number of fine sun sensor errors for each sensor.	16
12165	2F85	cdh.telemetry.DataPool.platform.ADCS.arrayTemperature	readOnly
		The current raw solar array temperatures from the board’s telemetry.	16
12166	2F86	cdh.telemetry.DataPool.platform.ADCS.packedAdcsMode	readOnly
		The ADCS Mode parameter contained within one byte for logging/TM efficiency.	8
12167	2F87	cdh.telemetry.DataPool.platform.ADCS.executionCount	readOnly
		Returns a count of the number software step executions.	16
12168	2F88	cdh.telemetry.DataPool.platform.ADCS.boardTemperature	readOnly
		Returns the current temperature of the board.	16
12169	2F89	cdh.telemetry.DataPool.platform.ADCS.rotationRateHigh	readOnly
		Whether a high rotation rate is detected.	1
12170	2F8A	cdh.telemetry.DataPool.platform.ADCS.mtqCurrent	readOnly
		The magnetorquer bias values from the ADCS device.	16
12171	2F8B	cdh.telemetry.DataPool.platform.ADCS.status	readOnly
		The status of the ADCS device.	16
12172	2F8C	cdh.telemetry.DataPool.platform.ADCS.adcsMode	readWrite
		The current controller mode of the ADCS device.	16
12173	2F8D	cdh.telemetry.DataPool.platform.ADCS.adcsState	readWrite
		The current state of the ADCS device.	16
12174	2F8E	cdh.telemetry.DataPool.platform.ADCS.detumbleComplete	readOnly
		Whether no longer expected to be detumbling.	1
12175	2F8F	cdh.telemetry.DataPool.payload.EMOD.AutoPollPages	readWrite
		Get/Set a boolean representing whether the OBC is or is not polling EMOD for any available pages.	1
12176	2F90	cdh.telemetry.DataPool.payload.EMOD.NextPageAddrToPoll	readWrite
		Get/set the address of the next page to be polled by the OBC when auto polling is enabled.	16
12177	2F91	cdh.telemetry.DataPool.payload.EMOD.DP_EMODMode	readOnly
		Implemented for datapool usage.	2
12178	2F92	cdh.telemetry.DataPool.payload.EMOD.DP_ResetCounter	readOnly
		Implemented for datapool usage.	8
12179	2F93	cdh.telemetry.DataPool.payload.EMOD.DP_LastPageAddr	readOnly
		Implemented for datapool usage.	24
12180	2F94	cdh.telemetry.DataPool.payload.GMOD.LastPageSumAddrRx	readOnly
		Updates with the memory address of the last summed channel TTE page received by the OBC from the MSP.	16
12181	2F95	cdh.telemetry.DataPool.payload.GMOD.LastPage16AddrRx	readOnly
		Updates with the memory address of the last 16 channel TTE page received by the OBC from the MSP.	16
12182	2F96	cdh.telemetry.DataPool.payload.GMOD.GRBTriggeringEnabled	readWrite
		Indicates whether GRB triggering on incoming summed channel TTE data is enabled or disabled.	1
12183	2F97	cdh.telemetry.DataPool.payload.GMOD.GRBTriggerCount	readOnly
		Returns the number of times a GRB trigger has occurred. This parameter is persisted through reboots.	16
12184	2F98	cdh.telemetry.DataPool.payload.GMOD.DP_GMODMode	readOnly
		Implemented for datapool usage.	4
12185	2F99	cdh.telemetry.DataPool.payload.GMOD.DP_ResetCounter	readOnly
		Implemented for datapool usage.	8
12186	2F9A	cdh.telemetry.DataPool.payload.GMOD.DP_LastPageSumAddr	readOnly
		Implemented for datapool usage.	24
12187	2F9B	cdh.telemetry.DataPool.payload.GMOD.DP_StreamSumChStatus	readOnly
		Implemented for datapool usage.	2
12188	2F9C	cdh.telemetry.DataPool.payload.GMOD.DP_LastPage16Addr	readOnly
		Implemented for datapool usage.	24
12189	2F9D	cdh.telemetry.DataPool.payload.GMOD.DP_Stream16ChStatus	readOnly
		Implemented for datapool usage.	2
12190	2F9E	cdh.telemetry.DataPool.payload.GMOD.DP_BiasVoltage	readOnly
		Implemented for datapool usage.	16
12191	2F9F	cdh.telemetry.DataPool.payload.GMOD.DP_BiasOffsetValue	readOnly
		Implemented for datapool usage.	16
12192	2FA0	cdh.telemetry.DataPool.payload.GMOD.DP_BoostConverterEnable	readOnly
		Implemented for datapool usage.	2
12193	2FA1	cdh.telemetry.DataPool.payload.GMOD.DP_BiasOffsetVoltage	readOnly
		Implemented for datapool usage.	16
12194	2FA2	cdh.telemetry.DataPool.payload.GMOD.DP_BiasOffsetEnable	readOnly
		Implemented for datapool usage.	2
12195	2FA3	cdh.telemetry.DataPool.payload.GMOD.DP_GMODMSPTemp	readOnly
		Implemented for datapool usage.	16
12196	2FA4	cdh.telemetry.DataPool.payload.GMOD.DP_ErrMessages	readOnly
		Implemented for datapool usage.	32
12197	2FA5	cdh.telemetry.DataPool.payload.GMOD.DP_FlashRolloverCounter	readOnly
		Implemented for datapool usage.	8
12198	2FA6	cdh.telemetry.DataPool.payload.GMOD.DP_CPLDTimeoutCounter	readOnly
		Implemented for datapool usage.	8
12199	2FA7	cdh.telemetry.DataPool.payload.GMOD.DP_SegFaultCount	readOnly
		Implemented for datapool usage.	16
12200	2FA8	cdh.telemetry.DataPool.payload.GMOD.DP_SegFaultType	readOnly
		Implemented for datapool usage.	3
12201	2FA9	cdh.telemetry.DataPool.payload.GMOD.DP_CorrBitErrorCount	readOnly
		Implemented for datapool usage.	16
12202	2FAA	cdh.telemetry.DataPool.payload.GMOD.DP_NonCorrBitErrorCount	readOnly
		Implemented for datapool usage.	16
12203	2FAB	cdh.telemetry.DataPool.payload.GMOD.DP_ForbiddenReadCount	readOnly
		Implemented for datapool usage.	8
12204	2FAC	cdh.telemetry.DataPool.payload.WBC.WBCEnabled	readWrite
		Boolean, where: 0 = nothing occurs on entry to the periodic experiment task, and 1 = the WBC experiment is run with whichever controller is the active controller on entry to the periodic experiment task.	1
12205	2FAD	cdh.telemetry.DataPool.payload.WBC.controllerExecutionCount	readWrite
		TODO	8
12206	2FAE	cdh.telemetry.DataPool.platform.obc.GPS.lastValidStateVec	readOnly
		Get the last valid state vector record.	296
12288	3000	cdh.telemetry.ParamStats.enabled	readWrite
		Whether the ParamStats component is enabled.	1
12289	3001	cdh.telemetry.ParamStats.statisticsPacked	readOnly
		The list of evaluated statistics.	256
12290	3002	cdh.telemetry.ParamStats.paramListPacked	readWrite
		The list of parameters to provide statistical records for.	40
12291	3003	cdh.telemetry.ParamStats.resetOnStatisticRead	readWrite
		When set to 1, the statistics will be reset after they are read.	1
12292	3004	cdh.telemetry.ParamStats.paramEnabled	readWrite
		Whether a parameter is enabled for statistical evaluation.	1
12293	3005	cdh.telemetry.ParamStats.statisticValid	readOnly
		If set high, the statistic is valid.	1
12294	3006	cdh.telemetry.ParamStats.isSigned	readOnly
		Returns whether a parameter is a signed value.	1
12295	3007	cdh.telemetry.ParamStats.maxSignedValue	readOnly
		The current stored maximum value recorded for a signed parameter.	32
12296	3008	cdh.telemetry.ParamStats.maxUnsignedValue	readOnly
		The current stored maximum value recorded for an unsigned parameter.	32
12297	3009	cdh.telemetry.ParamStats.maxTime	readOnly
		The on-board time recorded when the maximum value was set.	32
12298	300A	cdh.telemetry.ParamStats.timeSinceMax	readOnly
		The elapsed on-board time since the maximum value was set.	32
12299	300B	cdh.telemetry.ParamStats.minSignedValue	readOnly
		The current stored minimum value recorded for a signed parameter.	32
12300	300C	cdh.telemetry.ParamStats.minUnsignedValue	readOnly
		The current stored minimum value recorded for an unsigned parameter.	32
12301	300D	cdh.telemetry.ParamStats.minTime	readOnly
		The on-board time recorded when the minimum value was set.	32
12302	300E	cdh.telemetry.ParamStats.timeSinceMin	readOnly
		The elapsed on-board time since the minimum value was set.	32
12303	300F	cdh.telemetry.ParamStats.changeTime	readOnly
		The on-board time recorded when the value changed.	32
12304	3010	cdh.telemetry.ParamStats.timeSinceChange	readOnly
		The elapsed on-board time since the last recorded change	32
12305	3011	cdh.telemetry.ParamStats.meanSignedValue	readOnly
		Calculates and returns the current mean value for a signed parameter.	32
12306	3012	cdh.telemetry.ParamStats.meanUnsignedValue	readOnly
		Calculates and returns the current mean value for an unsigned parameter.	32
12307	3013	cdh.telemetry.ParamStats.periodMultiplier	readWrite
		Sets the period multiplier for the ParamStats component.	8
12544	3100	cdh.telemetry.BaseSampler.paramList	readWrite
		The list of indices for which DataPool parameters to sample.	16
12545	3101	cdh.telemetry.BaseSampler.periodMultiplier	readWrite
		Base sampling period multiplier.	8
12546	3102	cdh.telemetry.BaseSampler.burstSize	readWrite
		The maximum number of parameters sampled in a single period.	16
12547	3103	cdh.telemetry.BaseSampler.enabled	readWrite
		Enable flag.	1
12800	3200	cdh.telemetry.ADCSHighResSampler.paramList	readWrite
		The list of indices for which DataPool parameters to sample.	16
12801	3201	cdh.telemetry.ADCSHighResSampler.periodMultiplier	readWrite
		Base sampling period multiplier.	8
12802	3202	cdh.telemetry.ADCSHighResSampler.burstSize	readWrite
		The maximum number of parameters sampled in a single period.	16
12803	3203	cdh.telemetry.ADCSHighResSampler.enabled	readWrite
		Enable flag.	1
13056	3300	cdh.telemetry.HighResSampler.paramList	readWrite
		The list of indices for which DataPool parameters to sample.	16
13057	3301	cdh.telemetry.HighResSampler.periodMultiplier	readWrite
		Base sampling period multiplier.	8
13058	3302	cdh.telemetry.HighResSampler.burstSize	readWrite
		The maximum number of parameters sampled in a single period.	16
13059	3303	cdh.telemetry.HighResSampler.enabled	readWrite
		Enable flag.	1
13312	3400	cdh.telemetry.SoftwareBeaconAggregator.paramList	readWrite
		The list of parameters to aggregate as a simple list of IDs.	16
13313	3401	cdh.telemetry.SoftwareBeaconAggregator.paramListPacked	readWrite
		The list of fully-specified parameters to aggregate as a list of packed record.	64
13314	3402	cdh.telemetry.SoftwareBeaconAggregator.configId	readWrite
		Ground-defined identifier for the current aggregator configuration.	8
13315	3403	cdh.telemetry.SoftwareBeaconAggregator.packedOutput	readOnly
		Aggregated value as packed binary.	2048
13568	3500	cdh.telemetry.HardwareBeaconAggregator.paramList	readWrite
		The list of parameters to aggregate as a simple list of IDs.	16
13569	3501	cdh.telemetry.HardwareBeaconAggregator.paramListPacked	readWrite
		The list of fully-specified parameters to aggregate as a list of packed record.	64
13570	3502	cdh.telemetry.HardwareBeaconAggregator.configId	readWrite
		Ground-defined identifier for the current aggregator configuration.	8
13571	3503	cdh.telemetry.HardwareBeaconAggregator.packedOutput	readOnly
		Aggregated value as packed binary.	2048
13824	3600	cdh.telemetry.HKAggregator.paramList	readWrite
		The list of parameters to aggregate as a simple list of IDs.	16
13825	3601	cdh.telemetry.HKAggregator.paramListPacked	readWrite
		The list of fully-specified parameters to aggregate as a list of packed record.	64
13826	3602	cdh.telemetry.HKAggregator.configId	readWrite
		Ground-defined identifier for the current aggregator configuration.	8
13827	3603	cdh.telemetry.HKAggregator.packedOutput	readOnly
		Aggregated value as packed binary.	2048
14080	3700	cdh.telemetry.TEDAggregator.paramList	readWrite
		The list of parameters to aggregate as a simple list of IDs.	16
14081	3701	cdh.telemetry.TEDAggregator.paramListPacked	readWrite
		The list of fully-specified parameters to aggregate as a list of packed record.	64
14082	3702	cdh.telemetry.TEDAggregator.configId	readWrite
		Ground-defined identifier for the current aggregator configuration.	8
14083	3703	cdh.telemetry.TEDAggregator.packedOutput	readOnly
		Aggregated value as packed binary.	2048
14336	3800	cdh.telemetry.ADMAggregator.paramList	readWrite
		The list of parameters to aggregate as a simple list of IDs.	16
14337	3801	cdh.telemetry.ADMAggregator.paramListPacked	readWrite
		The list of fully-specified parameters to aggregate as a list of packed record.	64
14338	3802	cdh.telemetry.ADMAggregator.configId	readWrite
		Ground-defined identifier for the current aggregator configuration.	8
14339	3803	cdh.telemetry.ADMAggregator.packedOutput	readOnly
		Aggregated value as packed binary.	2048
14592	3900	cdh.telemetry.ADCSHKAggregator.paramList	readWrite
		The list of parameters to aggregate as a simple list of IDs.	16
14593	3901	cdh.telemetry.ADCSHKAggregator.paramListPacked	readWrite
		The list of fully-specified parameters to aggregate as a list of packed record.	64
14594	3902	cdh.telemetry.ADCSHKAggregator.configId	readWrite
		Ground-defined identifier for the current aggregator configuration.	8
14595	3903	cdh.telemetry.ADCSHKAggregator.packedOutput	readOnly
		Aggregated value as packed binary.	2048
14848	3A00	cdh.telemetry.ADCSDebugAggregator.paramList	readWrite
		The list of parameters to aggregate as a simple list of IDs.	16
14849	3A01	cdh.telemetry.ADCSDebugAggregator.paramListPacked	readWrite
		The list of fully-specified parameters to aggregate as a list of packed record.	64
14850	3A02	cdh.telemetry.ADCSDebugAggregator.configId	readWrite
		Ground-defined identifier for the current aggregator configuration.	8
14851	3A03	cdh.telemetry.ADCSDebugAggregator.packedOutput	readOnly
		Aggregated value as packed binary.	2048
15104	3B00	cdh.telemetry.PASCALAggregator.paramList	readWrite
		The list of parameters to aggregate as a simple list of IDs.	16
15105	3B01	cdh.telemetry.PASCALAggregator.paramListPacked	readWrite
		The list of fully-specified parameters to aggregate as a list of packed record.	64
15106	3B02	cdh.telemetry.PASCALAggregator.configId	readWrite
		Ground-defined identifier for the current aggregator configuration.	8
15107	3B03	cdh.telemetry.PASCALAggregator.packedOutput	readOnly
		Aggregated value as packed binary.	2048
15360	3C00	cdh.telemetry.SpareAggregator0.paramList	readWrite
		The list of parameters to aggregate as a simple list of IDs.	16
15361	3C01	cdh.telemetry.SpareAggregator0.paramListPacked	readWrite
		The list of fully-specified parameters to aggregate as a list of packed record.	64
15362	3C02	cdh.telemetry.SpareAggregator0.configId	readWrite
		Ground-defined identifier for the current aggregator configuration.	8
15363	3C03	cdh.telemetry.SpareAggregator0.packedOutput	readOnly
		Aggregated value as packed binary.	2048
15616	3D00	cdh.monitoring.BaseMonitor.enabled	readWrite
		The flag controlling the refresh of the monitor.	1
15617	3D01	cdh.monitoring.BaseMonitor.readOnly	readOnly
		The read-only flag protecting the monitoring list.	1
15618	3D02	cdh.monitoring.BaseMonitor.groupFailThreshold	readWrite
		The thresholds for each of the groups.	8
15619	3D03	cdh.monitoring.BaseMonitor.groupFailCount	readOnly
		The current fail count for each group.	8
15620	3D04	cdh.monitoring.BaseMonitor.checkListPacked	readWrite
		The list of monitoring checks as packed records.	160
15621	3D05	cdh.monitoring.BaseMonitor.checkEnabled	readWrite
		The enabled flag of each monitoring check.	1
15622	3D06	cdh.monitoring.BaseMonitor.checkIsValid	readOnly
		If HIGH, this check entry is valid. Invalid entries are not checked.	1
15623	3D07	cdh.monitoring.BaseMonitor.checkIsDelta	readOnly
		Whether this check is using a delta range.	1
15624	3D08	cdh.monitoring.BaseMonitor.checkCanWrap	readOnly
		Whether this check allows the value to wrap.	1
15625	3D09	cdh.monitoring.BaseMonitor.checkChecked	readOnly
		The checked flag of each monitoring check.	1
15626	3D0A	cdh.monitoring.BaseMonitor.checkFailed	readOnly
		The failed flag of each monitoring check.	1
15627	3D0B	cdh.monitoring.BaseMonitor.checkFailThreshold	readOnly
		How many periods a check needs to have consecutively failed before it raises an event.	16
15628	3D0C	cdh.monitoring.BaseMonitor.checkGetStatus	readOnly
		The status of the last get for a check.	32
15629	3D0D	cdh.monitoring.BaseMonitor.checkParameterId	readOnly
		Get the Parameter ID used for each check.	16
15630	3D0E	cdh.monitoring.BaseMonitor.checkParameterRow	readOnly
		Get the Parameter row used for each check.	16
15631	3D0F	cdh.monitoring.BaseMonitor.checkIsSigned	readOnly
		Get whether a check is for a signed parameter.	1
15632	3D10	cdh.monitoring.BaseMonitor.checkUpperBoundSigned	readOnly
		Gets the upper bound for each check as a signed value.	32
15633	3D11	cdh.monitoring.BaseMonitor.checkUpperBoundUnsigned	readOnly
		Gets the upper bound for each check as an unsigned value.	32
15634	3D12	cdh.monitoring.BaseMonitor.checkLowerBoundSigned	readOnly
		Gets the lower bound for each check as a signed value.	32
15635	3D13	cdh.monitoring.BaseMonitor.checkLowerBoundUnsigned	readOnly
		Gets the lower bound for each check as an unsigned value.	32
15636	3D14	cdh.monitoring.BaseMonitor.checkUpperEventId	readOnly
		Get the event ID for each upper bound check.	16
15637	3D15	cdh.monitoring.BaseMonitor.checkLowerEventId	readOnly
		Get the event ID for each lower bound check.	16
15638	3D16	cdh.monitoring.BaseMonitor.checkGroup	readOnly
		Get the assigned group for each check.	8
15872	3E00	cdh.monitoring.BeaconRateMonitor.enabled	readWrite
		The flag controlling the refresh of the monitor.	1
15873	3E01	cdh.monitoring.BeaconRateMonitor.readOnly	readOnly
		The read-only flag protecting the monitoring list.	1
15874	3E02	cdh.monitoring.BeaconRateMonitor.groupFailThreshold	readWrite
		The thresholds for each of the groups.	8
15875	3E03	cdh.monitoring.BeaconRateMonitor.groupFailCount	readOnly
		The current fail count for each group.	8
15876	3E04	cdh.monitoring.BeaconRateMonitor.checkListPacked	readWrite
		The list of monitoring checks as packed records.	160
15877	3E05	cdh.monitoring.BeaconRateMonitor.checkEnabled	readWrite
		The enabled flag of each monitoring check.	1
15878	3E06	cdh.monitoring.BeaconRateMonitor.checkIsValid	readOnly
		If HIGH, this check entry is valid. Invalid entries are not checked.	1
15879	3E07	cdh.monitoring.BeaconRateMonitor.checkIsDelta	readOnly
		Whether this check is using a delta range.	1
15880	3E08	cdh.monitoring.BeaconRateMonitor.checkCanWrap	readOnly
		Whether this check allows the value to wrap.	1
15881	3E09	cdh.monitoring.BeaconRateMonitor.checkChecked	readOnly
		The checked flag of each monitoring check.	1
15882	3E0A	cdh.monitoring.BeaconRateMonitor.checkFailed	readOnly
		The failed flag of each monitoring check.	1
15883	3E0B	cdh.monitoring.BeaconRateMonitor.checkFailThreshold	readOnly
		How many periods a check needs to have consecutively failed before it raises an event.	16
15884	3E0C	cdh.monitoring.BeaconRateMonitor.checkGetStatus	readOnly
		The status of the last get for a check.	32
15885	3E0D	cdh.monitoring.BeaconRateMonitor.checkParameterId	readOnly
		Get the Parameter ID used for each check.	16
15886	3E0E	cdh.monitoring.BeaconRateMonitor.checkParameterRow	readOnly
		Get the Parameter row used for each check.	16
15887	3E0F	cdh.monitoring.BeaconRateMonitor.checkIsSigned	readOnly
		Get whether a check is for a signed parameter.	1
15888	3E10	cdh.monitoring.BeaconRateMonitor.checkUpperBoundSigned	readOnly
		Gets the upper bound for each check as a signed value.	32
15889	3E11	cdh.monitoring.BeaconRateMonitor.checkUpperBoundUnsigned	readOnly
		Gets the upper bound for each check as an unsigned value.	32
15890	3E12	cdh.monitoring.BeaconRateMonitor.checkLowerBoundSigned	readOnly
		Gets the lower bound for each check as a signed value.	32
15891	3E13	cdh.monitoring.BeaconRateMonitor.checkLowerBoundUnsigned	readOnly
		Gets the lower bound for each check as an unsigned value.	32
15892	3E14	cdh.monitoring.BeaconRateMonitor.checkUpperEventId	readOnly
		Get the event ID for each upper bound check.	16
15893	3E15	cdh.monitoring.BeaconRateMonitor.checkLowerEventId	readOnly
		Get the event ID for each lower bound check.	16
15894	3E16	cdh.monitoring.BeaconRateMonitor.checkGroup	readOnly
		Get the assigned group for each check.	8
16128	3F00	cdh.monitoring.CriticalMonitor.enabled	readWrite
		The flag controlling the refresh of the monitor.	1
16129	3F01	cdh.monitoring.CriticalMonitor.readOnly	readOnly
		The read-only flag protecting the monitoring list.	1
16130	3F02	cdh.monitoring.CriticalMonitor.groupFailThreshold	readWrite
		The thresholds for each of the groups.	8
16131	3F03	cdh.monitoring.CriticalMonitor.groupFailCount	readOnly
		The current fail count for each group.	8
16132	3F04	cdh.monitoring.CriticalMonitor.checkListPacked	readWrite
		The list of monitoring checks as packed records.	160
16133	3F05	cdh.monitoring.CriticalMonitor.checkEnabled	readWrite
		The enabled flag of each monitoring check.	1
16134	3F06	cdh.monitoring.CriticalMonitor.checkIsValid	readOnly
		If HIGH, this check entry is valid. Invalid entries are not checked.	1
16135	3F07	cdh.monitoring.CriticalMonitor.checkIsDelta	readOnly
		Whether this check is using a delta range.	1
16136	3F08	cdh.monitoring.CriticalMonitor.checkCanWrap	readOnly
		Whether this check allows the value to wrap.	1
16137	3F09	cdh.monitoring.CriticalMonitor.checkChecked	readOnly
		The checked flag of each monitoring check.	1
16138	3F0A	cdh.monitoring.CriticalMonitor.checkFailed	readOnly
		The failed flag of each monitoring check.	1
16139	3F0B	cdh.monitoring.CriticalMonitor.checkFailThreshold	readOnly
		How many periods a check needs to have consecutively failed before it raises an event.	16
16140	3F0C	cdh.monitoring.CriticalMonitor.checkGetStatus	readOnly
		The status of the last get for a check.	32
16141	3F0D	cdh.monitoring.CriticalMonitor.checkParameterId	readOnly
		Get the Parameter ID used for each check.	16
16142	3F0E	cdh.monitoring.CriticalMonitor.checkParameterRow	readOnly
		Get the Parameter row used for each check.	16
16143	3F0F	cdh.monitoring.CriticalMonitor.checkIsSigned	readOnly
		Get whether a check is for a signed parameter.	1
16144	3F10	cdh.monitoring.CriticalMonitor.checkUpperBoundSigned	readOnly
		Gets the upper bound for each check as a signed value.	32
16145	3F11	cdh.monitoring.CriticalMonitor.checkUpperBoundUnsigned	readOnly
		Gets the upper bound for each check as an unsigned value.	32
16146	3F12	cdh.monitoring.CriticalMonitor.checkLowerBoundSigned	readOnly
		Gets the lower bound for each check as a signed value.	32
16147	3F13	cdh.monitoring.CriticalMonitor.checkLowerBoundUnsigned	readOnly
		Gets the lower bound for each check as an unsigned value.	32
16148	3F14	cdh.monitoring.CriticalMonitor.checkUpperEventId	readOnly
		Get the event ID for each upper bound check.	16
16149	3F15	cdh.monitoring.CriticalMonitor.checkLowerEventId	readOnly
		Get the event ID for each lower bound check.	16
16150	3F16	cdh.monitoring.CriticalMonitor.checkGroup	readOnly
		Get the assigned group for each check.	8
16384	4000	cdh.monitoring.WBCMonitor.enabled	readWrite
		The flag controlling the refresh of the monitor.	1
16385	4001	cdh.monitoring.WBCMonitor.readOnly	readOnly
		The read-only flag protecting the monitoring list.	1
16386	4002	cdh.monitoring.WBCMonitor.groupFailThreshold	readWrite
		The thresholds for each of the groups.	8
16387	4003	cdh.monitoring.WBCMonitor.groupFailCount	readOnly
		The current fail count for each group.	8
16388	4004	cdh.monitoring.WBCMonitor.checkListPacked	readWrite
		The list of monitoring checks as packed records.	160
16389	4005	cdh.monitoring.WBCMonitor.checkEnabled	readWrite
		The enabled flag of each monitoring check.	1
16390	4006	cdh.monitoring.WBCMonitor.checkIsValid	readOnly
		If HIGH, this check entry is valid. Invalid entries are not checked.	1
16391	4007	cdh.monitoring.WBCMonitor.checkIsDelta	readOnly
		Whether this check is using a delta range.	1
16392	4008	cdh.monitoring.WBCMonitor.checkCanWrap	readOnly
		Whether this check allows the value to wrap.	1
16393	4009	cdh.monitoring.WBCMonitor.checkChecked	readOnly
		The checked flag of each monitoring check.	1
16394	400A	cdh.monitoring.WBCMonitor.checkFailed	readOnly
		The failed flag of each monitoring check.	1
16395	400B	cdh.monitoring.WBCMonitor.checkFailThreshold	readOnly
		How many periods a check needs to have consecutively failed before it raises an event.	16
16396	400C	cdh.monitoring.WBCMonitor.checkGetStatus	readOnly
		The status of the last get for a check.	32
16397	400D	cdh.monitoring.WBCMonitor.checkParameterId	readOnly
		Get the Parameter ID used for each check.	16
16398	400E	cdh.monitoring.WBCMonitor.checkParameterRow	readOnly
		Get the Parameter row used for each check.	16
16399	400F	cdh.monitoring.WBCMonitor.checkIsSigned	readOnly
		Get whether a check is for a signed parameter.	1
16400	4010	cdh.monitoring.WBCMonitor.checkUpperBoundSigned	readOnly
		Gets the upper bound for each check as a signed value.	32
16401	4011	cdh.monitoring.WBCMonitor.checkUpperBoundUnsigned	readOnly
		Gets the upper bound for each check as an unsigned value.	32
16402	4012	cdh.monitoring.WBCMonitor.checkLowerBoundSigned	readOnly
		Gets the lower bound for each check as a signed value.	32
16403	4013	cdh.monitoring.WBCMonitor.checkLowerBoundUnsigned	readOnly
		Gets the lower bound for each check as an unsigned value.	32
16404	4014	cdh.monitoring.WBCMonitor.checkUpperEventId	readOnly
		Get the event ID for each upper bound check.	16
16405	4015	cdh.monitoring.WBCMonitor.checkLowerEventId	readOnly
		Get the event ID for each lower bound check.	16
16406	4016	cdh.monitoring.WBCMonitor.checkGroup	readOnly
		Get the assigned group for each check.	8
16640	4100	cdh.logging.ADMLogger.enabled	readWrite
		Logger enable	1
16641	4101	cdh.logging.ADMLogger.channelId	readWrite
		Global ID of the channel to write to.	16
16642	4102	cdh.logging.ADMLogger.paramId	readWrite
		The ID of the parameter to sample.	16
16643	4103	cdh.logging.ADMLogger.periodMultiplier	readWrite
		Base logging period multiplier.	8
16644	4104	cdh.logging.ADMLogger.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
16645	4105	cdh.logging.ADMLogger.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
16896	4200	cdh.logging.EventLogger.enabled	readWrite
		Logger enable	1
16897	4201	cdh.logging.EventLogger.channelId	readWrite
		Global ID of the channel to write to.	16
16898	4202	cdh.logging.EventLogger.severityFilterType	readWrite
		The type of filtering which is done on the severity filter level	1
16899	4203	cdh.logging.EventLogger.severityFilter	readWrite
		The filter applied to events to determine if they should be logged	2
16900	4204	cdh.logging.EventLogger.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
16901	4205	cdh.logging.EventLogger.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
17152	4300	cdh.logging.HKLogger_MRAM.enabled	readWrite
		Logger enable	1
17153	4301	cdh.logging.HKLogger_MRAM.channelId	readWrite
		Global ID of the channel to write to.	16
17154	4302	cdh.logging.HKLogger_MRAM.paramId	readWrite
		The ID of the parameter to sample.	16
17155	4303	cdh.logging.HKLogger_MRAM.periodMultiplier	readWrite
		Base logging period multiplier.	8
17156	4304	cdh.logging.HKLogger_MRAM.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
17157	4305	cdh.logging.HKLogger_MRAM.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
17408	4400	cdh.logging.HKLogger_Flash.enabled	readWrite
		Logger enable	1
17409	4401	cdh.logging.HKLogger_Flash.channelId	readWrite
		Global ID of the channel to write to.	16
17410	4402	cdh.logging.HKLogger_Flash.paramId	readWrite
		The ID of the parameter to sample.	16
17411	4403	cdh.logging.HKLogger_Flash.periodMultiplier	readWrite
		Base logging period multiplier.	8
17412	4404	cdh.logging.HKLogger_Flash.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
17413	4405	cdh.logging.HKLogger_Flash.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
17664	4500	cdh.logging.TEDLogger_MRAM.enabled	readWrite
		Logger enable	1
17665	4501	cdh.logging.TEDLogger_MRAM.channelId	readWrite
		Global ID of the channel to write to.	16
17666	4502	cdh.logging.TEDLogger_MRAM.paramId	readWrite
		The ID of the parameter to sample.	16
17667	4503	cdh.logging.TEDLogger_MRAM.periodMultiplier	readWrite
		Base logging period multiplier.	8
17668	4504	cdh.logging.TEDLogger_MRAM.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
17669	4505	cdh.logging.TEDLogger_MRAM.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
17920	4600	cdh.logging.TEDLogger_Flash.enabled	readWrite
		Logger enable	1
17921	4601	cdh.logging.TEDLogger_Flash.channelId	readWrite
		Global ID of the channel to write to.	16
17922	4602	cdh.logging.TEDLogger_Flash.paramId	readWrite
		The ID of the parameter to sample.	16
17923	4603	cdh.logging.TEDLogger_Flash.periodMultiplier	readWrite
		Base logging period multiplier.	8
17924	4604	cdh.logging.TEDLogger_Flash.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
17925	4605	cdh.logging.TEDLogger_Flash.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
18176	4700	cdh.logging.ADCSHKLogger_MRAM.enabled	readWrite
		Logger enable	1
18177	4701	cdh.logging.ADCSHKLogger_MRAM.channelId	readWrite
		Global ID of the channel to write to.	16
18178	4702	cdh.logging.ADCSHKLogger_MRAM.paramId	readWrite
		The ID of the parameter to sample.	16
18179	4703	cdh.logging.ADCSHKLogger_MRAM.periodMultiplier	readWrite
		Base logging period multiplier.	8
18180	4704	cdh.logging.ADCSHKLogger_MRAM.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
18181	4705	cdh.logging.ADCSHKLogger_MRAM.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
18432	4800	cdh.logging.ADCSHKLogger_Flash.enabled	readWrite
		Logger enable	1
18433	4801	cdh.logging.ADCSHKLogger_Flash.channelId	readWrite
		Global ID of the channel to write to.	16
18434	4802	cdh.logging.ADCSHKLogger_Flash.paramId	readWrite
		The ID of the parameter to sample.	16
18435	4803	cdh.logging.ADCSHKLogger_Flash.periodMultiplier	readWrite
		Base logging period multiplier.	8
18436	4804	cdh.logging.ADCSHKLogger_Flash.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
18437	4805	cdh.logging.ADCSHKLogger_Flash.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
18688	4900	cdh.logging.ADCSDebugLogger.enabled	readWrite
		Logger enable	1
18689	4901	cdh.logging.ADCSDebugLogger.channelId	readWrite
		Global ID of the channel to write to.	16
18690	4902	cdh.logging.ADCSDebugLogger.paramId	readWrite
		The ID of the parameter to sample.	16
18691	4903	cdh.logging.ADCSDebugLogger.periodMultiplier	readWrite
		Base logging period multiplier.	8
18692	4904	cdh.logging.ADCSDebugLogger.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
18693	4905	cdh.logging.ADCSDebugLogger.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
18944	4A00	cdh.logging.PASCALLogger_MRAM.enabled	readWrite
		Logger enable	1
18945	4A01	cdh.logging.PASCALLogger_MRAM.channelId	readWrite
		Global ID of the channel to write to.	16
18946	4A02	cdh.logging.PASCALLogger_MRAM.paramId	readWrite
		The ID of the parameter to sample.	16
18947	4A03	cdh.logging.PASCALLogger_MRAM.periodMultiplier	readWrite
		Base logging period multiplier.	8
18948	4A04	cdh.logging.PASCALLogger_MRAM.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
18949	4A05	cdh.logging.PASCALLogger_MRAM.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
19200	4B00	cdh.logging.PASCALLogger_Flash.enabled	readWrite
		Logger enable	1
19201	4B01	cdh.logging.PASCALLogger_Flash.channelId	readWrite
		Global ID of the channel to write to.	16
19202	4B02	cdh.logging.PASCALLogger_Flash.paramId	readWrite
		The ID of the parameter to sample.	16
19203	4B03	cdh.logging.PASCALLogger_Flash.periodMultiplier	readWrite
		Base logging period multiplier.	8
19204	4B04	cdh.logging.PASCALLogger_Flash.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
19205	4B05	cdh.logging.PASCALLogger_Flash.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
19456	4C00	cdh.logging.TCLogger.enabled	readWrite
		Logger enable	1
19457	4C01	cdh.logging.TCLogger.channelId	readWrite
		Global ID of the channel to write to.	16
19458	4C02	cdh.logging.TCLogger.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
19459	4C03	cdh.logging.TCLogger.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
19712	4D00	cdh.logging.GPSLogger.enabled	readWrite
		Logger enable	1
19713	4D01	cdh.logging.GPSLogger.channelId	readWrite
		Global ID of the channel to write to.	16
19714	4D02	cdh.logging.GPSLogger.paramId	readWrite
		The ID of the parameter to sample.	16
19715	4D03	cdh.logging.GPSLogger.periodMultiplier	readWrite
		Base logging period multiplier.	8
19716	4D04	cdh.logging.GPSLogger.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
19717	4D05	cdh.logging.GPSLogger.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
19968	4E00	cdh.logging.EMODLogger.enabled	readWrite
		Logger enable	1
19969	4E01	cdh.logging.EMODLogger.channelId	readWrite
		Global ID of the channel to write to.	16
19970	4E02	cdh.logging.EMODLogger.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
19971	4E03	cdh.logging.EMODLogger.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
20224	4F00	cdh.logging.WBCLogger.enabled	readWrite
		Logger enable	1
20225	4F01	cdh.logging.WBCLogger.channelId	readWrite
		Global ID of the channel to write to.	16
20226	4F02	cdh.logging.WBCLogger.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
20227	4F03	cdh.logging.WBCLogger.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
20480	5000	cdh.logging.GMODLCLogger.enabled	readWrite
		Logger enable	1
20481	5001	cdh.logging.GMODLCLogger.channelId	readWrite
		Global ID of the channel to write to.	16
20482	5002	cdh.logging.GMODLCLogger.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
20483	5003	cdh.logging.GMODLCLogger.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
20736	5100	cdh.logging.GMODSpecLogger.enabled	readWrite
		Logger enable	1
20737	5101	cdh.logging.GMODSpecLogger.channelId	readWrite
		Global ID of the channel to write to.	16
20738	5102	cdh.logging.GMODSpecLogger.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
20739	5103	cdh.logging.GMODSpecLogger.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
20992	5200	cdh.logging.GMODTTELogger.enabled	readWrite
		Logger enable	1
20993	5201	cdh.logging.GMODTTELogger.channelId	readWrite
		Global ID of the channel to write to.	16
20994	5202	cdh.logging.GMODTTELogger.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
20995	5203	cdh.logging.GMODTTELogger.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
21248	5300	cdh.logging.GMODTTETimeIndexLogger.enabled	readWrite
		Logger enable	1
21249	5301	cdh.logging.GMODTTETimeIndexLogger.channelId	readWrite
		Global ID of the channel to write to.	16
21250	5302	cdh.logging.GMODTTETimeIndexLogger.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
21251	5303	cdh.logging.GMODTTETimeIndexLogger.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
21504	5400	cdh.logging.GMOD16TTELogger.enabled	readWrite
		Logger enable	1
21505	5401	cdh.logging.GMOD16TTELogger.channelId	readWrite
		Global ID of the channel to write to.	16
21506	5402	cdh.logging.GMOD16TTELogger.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
21507	5403	cdh.logging.GMOD16TTELogger.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
21760	5500	cdh.logging.GMODTTEBufferLogger.enabled	readWrite
		Logger enable	1
21761	5501	cdh.logging.GMODTTEBufferLogger.channelId	readWrite
		Global ID of the channel to write to.	16
21762	5502	cdh.logging.GMODTTEBufferLogger.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
21763	5503	cdh.logging.GMODTTEBufferLogger.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
22016	5600	cdh.logging.GMODTriggLogger.enabled	readWrite
		Logger enable	1
22017	5601	cdh.logging.GMODTriggLogger.channelId	readWrite
		Global ID of the channel to write to.	16
22018	5602	cdh.logging.GMODTriggLogger.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
22019	5603	cdh.logging.GMODTriggLogger.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
22272	5700	cdh.scheduling.EventAction.enabled	readWrite
		The flag controlling the execution of actions due to events.	1
22273	5701	cdh.scheduling.EventAction.entryListPacked	readWrite
		The event-action entry list as packed records.	96
22274	5702	cdh.scheduling.EventAction.entryEventId	readOnly
		The event ID for each event-action entry.	16
22275	5703	cdh.scheduling.EventAction.entryId	readOnly
		The ID of the Action/Parameter to invoke/set.	16
22276	5704	cdh.scheduling.EventAction.entryEnabled	readWrite
		The enabled flag of each event-action entry.	1
22277	5705	cdh.scheduling.EventAction.entrySeverity	readOnly
		The severity flag of each event-action entry.	1
22278	5706	cdh.scheduling.EventAction.entryOnce	readOnly
		The once flag of each event-action entry.	1
22279	5707	cdh.scheduling.EventAction.entryExecuted	readOnly
		The executed flag of each event-action entry.	1
22280	5708	cdh.scheduling.EventAction.entryAck	readWrite
		The acknowledge flag of each event-action entry.	1
22281	5709	cdh.scheduling.EventAction.entryStatus	readOnly
		The action execution status of each event-action entry.	32
22282	570A	cdh.scheduling.EventAction.entryIdIsAction	readOnly
		Determines whether the listed id is an action or parameter.	1
22283	570B	cdh.scheduling.EventAction.entryParamRowList	readOnly
		The list of the row number (used for parameters)	16
22528	5800	cdh.scheduling.EileEventAction.enabled	readWrite
		The flag controlling the execution of actions due to events.	1
22529	5801	cdh.scheduling.EileEventAction.entryListPacked	readWrite
		The event-action entry list as packed records.	96
22530	5802	cdh.scheduling.EileEventAction.entryEventId	readOnly
		The event ID for each event-action entry.	16
22531	5803	cdh.scheduling.EileEventAction.entryId	readOnly
		The ID of the Action/Parameter to invoke/set.	16
22532	5804	cdh.scheduling.EileEventAction.entryEnabled	readWrite
		The enabled flag of each event-action entry.	1
22533	5805	cdh.scheduling.EileEventAction.entrySeverity	readOnly
		The severity flag of each event-action entry.	1
22534	5806	cdh.scheduling.EileEventAction.entryOnce	readOnly
		The once flag of each event-action entry.	1
22535	5807	cdh.scheduling.EileEventAction.entryExecuted	readOnly
		The executed flag of each event-action entry.	1
22536	5808	cdh.scheduling.EileEventAction.entryAck	readWrite
		The acknowledge flag of each event-action entry.	1
22537	5809	cdh.scheduling.EileEventAction.entryStatus	readOnly
		The action execution status of each event-action entry.	32
22538	580A	cdh.scheduling.EileEventAction.entryIdIsAction	readOnly
		Determines whether the listed id is an action or parameter.	1
22539	580B	cdh.scheduling.EileEventAction.entryParamRowList	readOnly
		The list of the row number (used for parameters)	16
22784	5900	cdh.scheduling.TimeAction.enabled	readWrite
		The flag controlling the execution of schedule actions.	1
22785	5901	cdh.scheduling.TimeAction.entryListPacked	readWrite
		The schedule entry list as packed records.	152
22786	5902	cdh.scheduling.TimeAction.entryTime	readWrite
		The schedule time of each entry.	32
22787	5903	cdh.scheduling.TimeAction.entryId	readOnly
		The ID of the Action/Parameter to invoke/set.	16
22788	5904	cdh.scheduling.TimeAction.entryEnabled	readWrite
		The enabled flag of each schedule entry.	1
22789	5905	cdh.scheduling.TimeAction.entryIsRelative	readOnly
		Whether this entry is using a relative time	1
22790	5906	cdh.scheduling.TimeAction.entryOneShot	readOnly
		Whether this entry is a one-shot.	1
22791	5907	cdh.scheduling.TimeAction.entryExpired	readOnly
		The expired flag of each schedule entry.	1
22792	5908	cdh.scheduling.TimeAction.entryExecuted	readOnly
		The executed flag of each schedule entry.	1
22793	5909	cdh.scheduling.TimeAction.entryStatus	readOnly
		The action execution status of each schedule entry.	32
22794	590A	cdh.scheduling.TimeAction.entryIdIsAction	readOnly
		Determines whether the listed id is an action or parameter.	1
22795	590B	cdh.scheduling.TimeAction.entryParamRowList	readOnly
		The list of the row number (used for parameters)	16
22796	590C	cdh.scheduling.TimeAction.entryRepeatDelay	readWrite
		How long of a time delay there is between each repeat execution.	32
22797	590D	cdh.scheduling.TimeAction.entryRepeatCount	readWrite
		The amount of times that an entry should be repeated.	8
23040	5A00	cdh.scheduling.WatchdogPeriodicAction.enabled	readWrite
		Enable periodic action service.	1
23041	5A01	cdh.scheduling.WatchdogPeriodicAction.idIsAction	readWrite
		Determines whether the listed id is an action or parameter.	1
23042	5A02	cdh.scheduling.WatchdogPeriodicAction.actionListPacked	readWrite
		The list of packed record entries.	96
23043	5A03	cdh.scheduling.WatchdogPeriodicAction.actionListPeriodMultiplier	readWrite
		The list of period multipliers for the actions.	8
23044	5A04	cdh.scheduling.WatchdogPeriodicAction.actionListCurrentPeriods	readWrite
		The list of current period for the actions.	8
23045	5A05	cdh.scheduling.WatchdogPeriodicAction.actionListIds	readWrite
		The list of action IDs	16
23046	5A06	cdh.scheduling.WatchdogPeriodicAction.actionListEnabled	readWrite
		Returns the flag for whether the action is enabled.	1
23047	5A07	cdh.scheduling.WatchdogPeriodicAction.actionListInvoked	readOnly
		Returns the flag that indicates whether an action has been invoked.	1
23048	5A08	cdh.scheduling.WatchdogPeriodicAction.actionListAck	readWrite
		Returns the flag for whether an action raises an event on success.	1
23049	5A09	cdh.scheduling.WatchdogPeriodicAction.paramRowList	readWrite
		The list of the row number (used for parameters)	16
23296	5B00	cdh.scheduling.PeriodicAction.enabled	readWrite
		Enable periodic action service.	1
23297	5B01	cdh.scheduling.PeriodicAction.idIsAction	readWrite
		Determines whether the listed id is an action or parameter.	1
23298	5B02	cdh.scheduling.PeriodicAction.actionListPacked	readWrite
		The list of packed record entries.	96
23299	5B03	cdh.scheduling.PeriodicAction.actionListPeriodMultiplier	readWrite
		The list of period multipliers for the actions.	8
23300	5B04	cdh.scheduling.PeriodicAction.actionListCurrentPeriods	readWrite
		The list of current period for the actions.	8
23301	5B05	cdh.scheduling.PeriodicAction.actionListIds	readWrite
		The list of action IDs	16
23302	5B06	cdh.scheduling.PeriodicAction.actionListEnabled	readWrite
		Returns the flag for whether the action is enabled.	1
23303	5B07	cdh.scheduling.PeriodicAction.actionListInvoked	readOnly
		Returns the flag that indicates whether an action has been invoked.	1
23304	5B08	cdh.scheduling.PeriodicAction.actionListAck	readWrite
		Returns the flag for whether an action raises an event on success.	1
23305	5B09	cdh.scheduling.PeriodicAction.paramRowList	readWrite
		The list of the row number (used for parameters)	16
23552	5C00	platform.obc.Watchdog.currentCredit	readOnly
		How much credit is available for kicking the watchdog	32
23553	5C01	platform.obc.Watchdog.restoreAmount	readWrite
		How much credit is restored by the restore task	32
23808	5D00	cdh.scheduling.CriticalEventAction.enabled	readWrite
		The flag controlling the execution of actions due to events.	1
23809	5D01	cdh.scheduling.CriticalEventAction.entryListPacked	readWrite
		The event-action entry list as packed records.	96
23810	5D02	cdh.scheduling.CriticalEventAction.entryEventId	readOnly
		The event ID for each event-action entry.	16
23811	5D03	cdh.scheduling.CriticalEventAction.entryId	readOnly
		The ID of the Action/Parameter to invoke/set.	16
23812	5D04	cdh.scheduling.CriticalEventAction.entryEnabled	readWrite
		The enabled flag of each event-action entry.	1
23813	5D05	cdh.scheduling.CriticalEventAction.entrySeverity	readOnly
		The severity flag of each event-action entry.	1
23814	5D06	cdh.scheduling.CriticalEventAction.entryOnce	readOnly
		The once flag of each event-action entry.	1
23815	5D07	cdh.scheduling.CriticalEventAction.entryExecuted	readOnly
		The executed flag of each event-action entry.	1
23816	5D08	cdh.scheduling.CriticalEventAction.entryAck	readWrite
		The acknowledge flag of each event-action entry.	1
23817	5D09	cdh.scheduling.CriticalEventAction.entryStatus	readOnly
		The action execution status of each event-action entry.	32
23818	5D0A	cdh.scheduling.CriticalEventAction.entryIdIsAction	readOnly
		Determines whether the listed id is an action or parameter.	1
23819	5D0B	cdh.scheduling.CriticalEventAction.entryParamRowList	readOnly
		The list of the row number (used for parameters)	16
24064	5E00	mission.SeparationSequence.state	readOnly
		This parameter contains the current state of the separation sequence.	8
24065	5E01	mission.SeparationSequence.InhibitPinStatus	readOnly
		This will get the current inhibit pin state as stored by the separation sequence.	1
24066	5E02	mission.SeparationSequence.BurnAttempts	readOnly
		This parameter will indicate how many loops (primary and secondary)resistors burns have occurred. Reset on reboots but information can also be inferred from Event Log.	16
24067	5E03	mission.SeparationSequence.AntSwitchesStatuses	readOnly
		The status flags for switches on the doors of each antenna element. If bit is LOW, the switch is closed (indicating that the antenna element door is closed and the antenna element is stowed): - bit 0: +X antenna element door switch - bit 1: +Y antenna element door switch - bit 2: -X antenna element door switch - bit 3: -Y antenna element door switch	4
24068	5E04	mission.SeparationSequence.TimerTimeRemaining	readOnly
		This parameter will indicate how many seconds are remaining in the timer time before a transition to a new state occurs.	32
24320	5F00	mission.ADCSManager.enabled	readWrite
		Determine if state vector handling is enabled or not	1
24321	5F01	mission.ADCSManager.useGps	readWrite
		Signals whether to try to use the GPS or state vectors.	1
24322	5F02	mission.ADCSManager.gpsFixTimeout	readWrite
		The number of task periods to spend in the GPS lock” state”	16
24323	5F03	mission.ADCSManager.gpsFixFailThreshold	readWrite
		The number of times the GPS lock” state can fail to lock and go back to the “GPS wait” state.”	8
24324	5F04	mission.ADCSManager.gpsFixFailed	readWrite
		Returns whether attempts to get a GPS fix failed too many times.	1
24325	5F05	mission.ADCSManager.gpsMaxEntries	readWrite
		Count of state vectors to pass from the GPS to the ADCS in the GPS update” state”	16
24326	5F06	mission.ADCSManager.gpsDowntime	readWrite
		The minimum time, in seconds, to spend in the GPS wait” state.”	16
24327	5F07	mission.ADCSManager.gpsSvInterval	readWrite
		The number of seconds between state vectors being passed from the GPS to the ADCS in the GPS update” state”	16
24328	5F08	mission.ADCSManager.maxGpsSvAge	readWrite
		The maximum time a state vector can be considered valid.	32
24329	5F09	mission.ADCSManager.utcOffset	readWrite
		The offset between GPS time and UTC time in seconds.	32
24330	5F0A	mission.ADCSManager.channelId	readWrite
		The ID of the channel to read state vectors from	16
24331	5F0B	mission.ADCSManager.state	readOnly
		The current ADCSManager state	3
24332	5F0C	mission.ADCSManager.currRow	readOnly
		The current row in the state vector channel	16
24333	5F0D	mission.ADCSManager.stateVectorsRemaining	readOnly
		Indicates if there are more state vectors to be processed	1
24334	5F0E	mission.ADCSManager.lastSvUpdate	readOnly
		Returns the onboard time that the ADCS was last successfully updated.	32
24335	5F0F	mission.ADCSManager.successfulSvUpdates	readOnly
		Returns the number of times the ADCS was successfully updated.	16
24336	5F10	mission.ADCSManager.totalFixFailures	readOnly
		Returns the number of times there was a fix failure.	16
24337	5F11	mission.ADCSManager.maxLockLosses	readWrite
		Returns the maximum number of times that the GPS can lose lock while in the GPSUpdate state before transitioning to the GPSWait state instead of reattempting to re-obtain a lock. This prevents the GPS from getting left on indefinitely.	8
24576	6000	mission.ModeManager.Mode	readOnly
		This parameter contains the current mode of the satellite.	4
24577	6001	mission.ModeManager.EntryErrorCount	readOnly
		Retrieve the last number of mode entry function errors	8
24578	6002	mission.ModeManager.ExitErrorCount	readOnly
		Retrieve the last number of mode entry function errors	8
24579	6003	mission.ModeManager.NoTCWatchdogTimeout	readWrite
		Get or set the number of days to pass before the no TC watchdog triggers. If this parameter is 0, the no TC watchdog is essentially disabled.	8
24580	6004	mission.ModeManager.NominalEntryGMODMode	readWrite
		The GMOD mode to set when going into Nominal mode.	8
24581	6005	mission.ModeManager.NominalEntryEMODMode	readWrite
		The EMOD mode to set when going into Nominal mode.	8
24582	6006	mission.ModeManager.NominalEntryEPSSwStatesBitmap	readWrite
		The EPS Switch states to set when going into Nominal mode.	16
24583	6007	mission.ModeManager.passInProgress	readOnly
		Returns whether a pass is in progress.	1
24584	6008	mission.ModeManager.passTimeout	readWrite
		The timeout used to end a pass. This timeout will be reset during a pass whenever a TC has been recieved. If this parameter is 0, passes will never timeout.	16
24585	6009	mission.ModeManager.CompiledFor	readOnly
		This parameter indicates image slot this image was compiled for, where: 1: Compiler flag, IMAGE = 1 (primary1) 2: Compiler flag, IMAGE = 2 (primary2)	8

Failsafe Image Parameters

Tip

Scroll to the right to view the full table.

ID	ID (hex)	Parameter	Type - Bits/Row
0	0000	Version.version	readOnly
		The full version number.	32
1	0001	Version.majorVersion	readOnly
		The major version number.	8
2	0002	Version.minorVersion	readOnly
		The minor version number.	8
3	0003	Version.build	readOnly
		The build number.	16
4	0004	Version.buildDate	readOnly
		The build date.	88
5	0005	Version.buildTime	readOnly
		The build time.	64
6	0006	Version.satelliteString	readOnly
		The EIRSAT-1” string.”	64
7	0007	Version.messageString	readOnly
		A 32byte parameter to be used for adding messages to TMBeacon. Update the message contents via the UpdateMessage action. Warning: Before adding this to the TMBeacon, the Operators should ensure there is room in the TMBeacon frame which is capped at 245 bytes.	256
8	0008	Version.longMessageString	readOnly
		A 64byte parameter to be used for adding messages to TMBeacon. Update the message contents via the UpdateMessage action. Warning: Before adding this to the TMBeacon, the Operators should ensure there is room in the TMBeacon frame which is capped at 245 bytes.	512
256	0100	platform.obc.OBC.firmwareVersion	readOnly
		The version code for the OBC firmware.	16
257	0101	platform.obc.OBC.partNumber	readOnly
		The part number of the OBC.	32
258	0102	platform.obc.OBC.mpuEnable	readWrite
		Enable or disable the MPU	1
259	0103	platform.obc.OBC.currBootImage	readOnly
		The index of the currently executing software image	8
260	0104	platform.obc.OBC.nextBootImage	readOnly
		The index of the software image to execute on the next boot assuming the image CRC is valid.	8
261	0105	platform.obc.OBC.image1	readWrite
		The software image for image 1	128
262	0106	platform.obc.OBC.image2	readWrite
		The software image for image 2	128
263	0107	platform.obc.OBC.imageCrc	readOnly
		The stored CRCs for each of the software images.	32
264	0108	platform.obc.OBC.imageValid	readOnly
		The validity flags for each of the software images.	1
265	0109	platform.obc.OBC.imagePriority	readWrite
		Priority of the image.	32
266	010A	platform.obc.OBC.imageIsStable	readWrite
		Is the image stable.	1
267	010B	platform.obc.OBC.dtmfSequence	readWrite
		The sequence of DTMF symbols which can be used to cause a reboot	2040
268	010C	platform.obc.OBC.dtmfSequenceLocked	readOnly
		The lock status for the DTMF sequence.	1
269	010D	platform.obc.OBC.dtmfFrequency	readWrite
		The frequency at which DTMF symbols must be received to cause a reboot	32
270	010E	platform.obc.OBC.mramCorrectableErrorCount	readOnly
		The number of correctable errors detected in MRAM	32
271	010F	platform.obc.OBC.mramNonCorrectableErrorCount	readOnly
		The number of non-correctable errors detected in MRAM	32
272	0110	platform.obc.OBC.flashCorrectableErrorCount	readOnly
		The number of correctable errors detected in flash	32
273	0111	platform.obc.OBC.flashNonCorrectableErrorCount	readOnly
		The number of non-correctable errors detected in flash	32
274	0112	platform.obc.OBC.gpsEnable	readWrite
		The enable (power) state of the GPS	1
275	0113	platform.obc.OBC.adcEnable	readWrite
		The enable (power) state of the ADCs	1
276	0114	platform.obc.OBC.gyroEnable	readWrite
		The enable (power) state of the gyroscopes	1
277	0115	platform.obc.OBC.magnetometerEnable	readWrite
		The enable (power) state of the magnetometer	1
512	0200	platform.obc.GPIO.pins	readWrite
		The values of GPIO pins	1
768	0300	platform.obc.MagnetometerI2C.enabled	readWrite
		Whether the component is enabled	1
769	0301	platform.obc.MagnetometerI2C.channelAddress	readWrite
		The unshifted I2C address for each connected channel.	8
770	0302	platform.obc.MagnetometerI2C.nackAddrCount	readOnly
		Number of NACKs received when addressing a slave	16
771	0303	platform.obc.MagnetometerI2C.nackDataCount	readOnly
		Number of NACKed data bytes	16
772	0304	platform.obc.MagnetometerI2C.ackAddrCount	readOnly
		Number of ACKs received when addressing a slave	16
773	0305	platform.obc.MagnetometerI2C.ackDataCount	readOnly
		Number of ACKed data bytes	16
774	0306	platform.obc.MagnetometerI2C.hwStateErrorCount	readOnly
		Number of times the hardware peripheral entered an unexpected state	16
775	0307	platform.obc.MagnetometerI2C.isrErrorCount	readOnly
		Number of times an error occurred in the I2CMaster ISR task	16
1024	0400	platform.obc.I2CBusA.enabled	readWrite
		Whether the component is enabled	1
1025	0401	platform.obc.I2CBusA.channelAddress	readWrite
		The unshifted I2C address for each connected channel.	8
1026	0402	platform.obc.I2CBusA.nackAddrCount	readOnly
		Number of NACKs received when addressing a slave	16
1027	0403	platform.obc.I2CBusA.nackDataCount	readOnly
		Number of NACKed data bytes	16
1028	0404	platform.obc.I2CBusA.ackAddrCount	readOnly
		Number of ACKs received when addressing a slave	16
1029	0405	platform.obc.I2CBusA.ackDataCount	readOnly
		Number of ACKed data bytes	16
1030	0406	platform.obc.I2CBusA.hwStateErrorCount	readOnly
		Number of times the hardware peripheral entered an unexpected state	16
1031	0407	platform.obc.I2CBusA.isrErrorCount	readOnly
		Number of times an error occurred in the I2CMaster ISR task	16
1280	0500	platform.obc.I2CBusB.enabled	readWrite
		Whether the component is enabled	1
1281	0501	platform.obc.I2CBusB.channelAddress	readWrite
		The unshifted I2C address for each connected channel.	8
1282	0502	platform.obc.I2CBusB.nackAddrCount	readOnly
		Number of NACKs received when addressing a slave	16
1283	0503	platform.obc.I2CBusB.nackDataCount	readOnly
		Number of NACKed data bytes	16
1284	0504	platform.obc.I2CBusB.ackAddrCount	readOnly
		Number of ACKs received when addressing a slave	16
1285	0505	platform.obc.I2CBusB.ackDataCount	readOnly
		Number of ACKed data bytes	16
1286	0506	platform.obc.I2CBusB.hwStateErrorCount	readOnly
		Number of times the hardware peripheral entered an unexpected state	16
1287	0507	platform.obc.I2CBusB.isrErrorCount	readOnly
		Number of times an error occurred in the I2CMaster ISR task	16
1536	0600	platform.obc.I2CBusC.enabled	readWrite
		Whether the component is enabled	1
1537	0601	platform.obc.I2CBusC.channelAddress	readWrite
		The unshifted I2C address for each connected channel.	8
1538	0602	platform.obc.I2CBusC.nackAddrCount	readOnly
		Number of NACKs received when addressing a slave	16
1539	0603	platform.obc.I2CBusC.nackDataCount	readOnly
		Number of NACKed data bytes	16
1540	0604	platform.obc.I2CBusC.ackAddrCount	readOnly
		Number of ACKs received when addressing a slave	16
1541	0605	platform.obc.I2CBusC.ackDataCount	readOnly
		Number of ACKed data bytes	16
1542	0606	platform.obc.I2CBusC.hwStateErrorCount	readOnly
		Number of times the hardware peripheral entered an unexpected state	16
1543	0607	platform.obc.I2CBusC.isrErrorCount	readOnly
		Number of times an error occurred in the I2CMaster ISR task	16
1792	0700	platform.obc.Magnetometer.mode	readWrite
		The measurement mode used by the digital compass	2
1793	0701	platform.obc.Magnetometer.rate	readWrite
		The data output rate used by measurements on the digital compass	3
1794	0702	platform.obc.Magnetometer.bias	readWrite
		The measurement bias configuration used by the digital compass	2
1795	0703	platform.obc.Magnetometer.gain	readWrite
		The gain used by magnetometer measurements	3
1796	0704	platform.obc.Magnetometer.status	readOnly
		The status field from the digital compass	3
1797	0705	platform.obc.Magnetometer.heading	readOnly
		The heading measurements (magnetometer readings) from the digital compass	16
1798	0706	platform.obc.Magnetometer.id	readOnly
		The constant identity field from the digital compass	24
2048	0800	platform.EPS.version	readOnly
		Gets the firmware version information.	16
2049	0801	platform.EPS.status	readOnly
		Gets status information.	8
2050	0802	platform.EPS.lastError	readOnly
		Returns the last error.	8
2051	0803	platform.EPS.romChecksum	readOnly
		Returns a generated checksum of the ROM contents.	16
2052	0804	platform.EPS.watchDogTimeout	readWrite
		Gets or sets the time to pass before the watchdog times out.	7
2053	0805	platform.EPS.brownOutResetCount	readOnly
		Returns the number of brown-out resets that have occurred.	8
2054	0806	platform.EPS.autoResetCount	readOnly
		Returns the number times the PIC watchdog has reset the board.	8
2055	0807	platform.EPS.watchdogResetCount	readOnly
		Get the number of times that the comms watchdog has reset the system.	8
2056	0808	platform.EPS.softResetCount	readOnly
		Returns the amount of times that the user has reset the system.	8
2057	0809	platform.EPS.switchVoltages	readOnly
		Voltage measurements for the switches.	10
2058	080A	platform.EPS.switchCurrents	readOnly
		Measurements for the current of the switches.	10
2059	080B	platform.EPS.initialSwitchStates	readWrite
		Get or set the initial states of one or more switches.	1
2060	080C	platform.EPS.initialSwitchStatesBitmap	readWrite
		Get or set the initial states of all the switches.	10
2061	080D	platform.EPS.expectedSwitchStates	readWrite
		Get or set the expected state of one or more switches.	1
2062	080E	platform.EPS.expectedSwitchStatesBitmap	readWrite
		Get or set the expected state of the 10 switches.	10
2063	080F	platform.EPS.actualSwitchStates	readOnly
		Returns the actual state of one or more switches.	1
2064	0810	platform.EPS.actualSwitchStatesBitmap	readOnly
		Returns the actual state of all the switches.	10
2065	0811	platform.EPS.switchOvercurrentBitmap	readOnly
		Whether an over-current trip has been detected for a switch	10
2066	0812	platform.EPS.switchTimerLimit	readWrite
		The limit for the switch timers.	8
2067	0813	platform.EPS.switchTimerElapsed	readOnly
		Returns the current value for the switch timers.	8
2068	0814	platform.EPS.boardTemperature	readOnly
		Get the temperature of the board.	10
2069	0815	platform.EPS.daughterboardTemperature	readOnly
		Get the temperature of the daughterboard.	10
2070	0816	platform.EPS.solarArrayTemperatures	readOnly
		Temperature measurements for all solar arrays.	10
2071	0817	platform.EPS.solarArrayCurrents	readOnly
		Measurement of current for all solar arrays.	10
2072	0818	platform.EPS.solarArraysCurrentTotal	readOnly
		Returns the total current retrieved by the BCRs.	10
2073	0819	platform.EPS.solarArraysVoltageTotal	readOnly
		Returns the total voltage retrieved by the BCRs.	10
2074	081A	platform.EPS.solarArrayIlluminated	readOnly
		Returns the sun detector values for the solar arrays.	10
2075	081B	platform.EPS.solarArrayVoltages	readOnly
		Voltage measurements for the solar array pairs.	10
2076	081C	platform.EPS.busVoltages	readOnly
		Voltage measurements for the buses.	10
2077	081D	platform.EPS.busCurrents	readOnly
		Measurements for the current of the buses.	10
2078	081E	platform.EPS.busCurrentDraws	readOnly
		The current drawn by the EPS.	10
2304	0900	platform.BAT.batteryCurrentDir	readOnly
		Returns whether the battery is charging	1
2305	0901	platform.BAT.batteryCurrent	readOnly
		Current for the batteries.	10
2306	0902	platform.BAT.batteryVoltage	readOnly
		Voltage for the battery buses.	10
2307	0903	platform.BAT.boardTemperature	readOnly
		Returns the board temperature.	10
2308	0904	platform.BAT.batteryTemperature	readOnly
		Temperature for the batteries.	10
2309	0905	platform.BAT.batteryHeaterStatus	readOnly
		Status of the heaters for the batteries.	10
2310	0906	platform.BAT.version	readOnly
		Version information.	16
2311	0907	platform.BAT.status	readOnly
		Status information.	16
2312	0908	platform.BAT.lastError	readOnly
		Returns the last error.	8
2313	0909	platform.BAT.romChecksum	readOnly
		Returns a generated checksum of the ROM contents.	16
2314	090A	platform.BAT.manualSoftResetCount	readOnly
		Returns the amount of times that the user has reset the system.	8
2315	090B	platform.BAT.autoResetCount	readOnly
		Returns the number times the PIC watchdog has reset the board.	8
2316	090C	platform.BAT.brownOutResetCount	readOnly
		Returns the number of brown-out resets that have occurred.	8
2317	090D	platform.BAT.heaterAutomationEnabled	readWrite
		Whether the heater automation is enabled.	1
2318	090E	platform.BAT.packedHeaterStatus	readOnly
		The Heater Statuses as booleans.	1
2560	0A00	platform.ADCS.rawGyroRate	readOnly
		Returns a packed record of the raw gyro data for each axis.	16
2561	0A01	platform.ADCS.rawGyroRateTotalSqrd	readOnly
		Returns the squared total raw gyro rate value.	32
2562	0A02	platform.ADCS.rawGyroTemperature	readOnly
		Returns the raw temperatures for each of the gyro sensors	16
2563	0A03	platform.ADCS.gyroStatus	readOnly
		Returns the status byte for each of the axes.	24
2564	0A04	platform.ADCS.mtm1Raw	readOnly
		Provides the raw value for magnetometer 1’s sensors on board.	16
2565	0A05	platform.ADCS.mtm2Raw	readOnly
		Provides the raw value for magnetometer 2’s sensors on board.	16
2566	0A06	platform.ADCS.fss1Unfiltered	readOnly
		returns the unfiltered fine sun sensor readings.	32
2567	0A07	platform.ADCS.fss1Filtered	readOnly
		returns the filtered fine sun sensor readings.	32
2568	0A08	platform.ADCS.fss1AlphaAngle	readOnly
		returns the fine sun sensor alpha angle.	32
2569	0A09	platform.ADCS.fss1BetaAngle	readOnly
		returns the fine sun sensor beta angle.	32
2570	0A0A	platform.ADCS.fss1ErrorCodes	readOnly
		returns the fine sun sensor error codes for each sensor.	4
2571	0A0B	platform.ADCS.fss1ErrorCount	readOnly
		returns the number of fine sun sensor errors for each sensor.	16
2572	0A0C	platform.ADCS.mtqDirectionDuty	readOnly
		The magnetorquer’s direction and duty cycle.	8
2573	0A0D	platform.ADCS.status	readOnly
		The status of the ADCS device.	16
2574	0A0E	platform.ADCS.firmwareVersion	readOnly
		Version information.	16
2575	0A0F	platform.ADCS.busVoltages	readOnly
		Returns the voltages of the buses.	16
2576	0A10	platform.ADCS.busCurrents	readOnly
		Returns the currents of the buses.	16
2577	0A11	platform.ADCS.boardTemperature	readOnly
		Returns the current temperature of the board.	16
2578	0A12	platform.ADCS.analogueToDigitalReference	readOnly
		Returns the reference value used for analogue to digital conversion.	16
2579	0A13	platform.ADCS.sensorCurrent	readOnly
		Returns the current being used by the on board sensors.	16
2580	0A14	platform.ADCS.mtqCurrent	readOnly
		The magnetorquer bias values from the ADCS device.	16
2581	0A15	platform.ADCS.mtm1Temperature	readOnly
		Returns the temperature of magnetometer 1.	16
2582	0A16	platform.ADCS.mtm2Temperature	readOnly
		Returns the temperature of magnetometer 2.	16
2583	0A17	platform.ADCS.arrayTemperature	readOnly
		The current raw solar array temperatures from the board’s telemetry.	16
2584	0A18	platform.ADCS.cssRaw	readOnly
		Returns the raw ADC value for each Coarse Sun Sensor.	16
2585	0A19	platform.ADCS.eccStatisticsPacked	readOnly
		Returns a packed record of the available ECC statistics.	16
2586	0A1A	platform.ADCS.correctedRamErrorCount	readOnly
		Returns the number of corrected (single bit) RAM errors.	16
2587	0A1B	platform.ADCS.uncorrectableRamErrorCount	readOnly
		Returns the number of uncorrectable (multi bit) RAM errors.	16
2588	0A1C	platform.ADCS.eccCorrectionRamPage	readOnly
		Returns RAM page containing latest ECC correction.	16
2589	0A1D	platform.ADCS.eccUncorrectableRamPage	readOnly
		Returns RAM page containing latest uncorrectable error.	16
2590	0A1E	platform.ADCS.correctedEepromErrorCount	readOnly
		Returns the number of corrected (single bit) EEPROM errors.	16
2591	0A1F	platform.ADCS.uncorrectableEepromErrorCount	readOnly
		Returns the number of uncorrectable (multi bit) EEPROM errors.	16
2592	0A20	platform.ADCS.eccCorrectionEepromPage	readOnly
		Returns EEPROM page containing latest ECC correction.	16
2593	0A21	platform.ADCS.eccUncorrectableEepromPage	readOnly
		Returns EEPROM page containing latest uncorrectable error.	16
2594	0A22	platform.ADCS.mtqEnable	readWrite
		Get and set whether the magnetorquer is enabled.	1
2595	0A23	platform.ADCS.mtmEnable	readWrite
		Get and set whether the magnetometers are enabled.	1
2596	0A24	platform.ADCS.nvmPageAddress	readWrite
		Page address for the non volatile memory.	16
2597	0A25	platform.ADCS.nvmBufferByteAddress	readWrite
		Byte address within page for the non volatile memory.	16
2598	0A26	platform.ADCS.nvmBufferByteData	readWrite
		Read/Write non volatile memory byte.	16
2599	0A27	platform.ADCS.nvmPageData	readWrite
		Used to read/write more than a single byte of data to pages.	1024
2600	0A28	platform.ADCS.nvmControl	readWrite
		Non volatile memory control bits.	3
2601	0A29	platform.ADCS.processedGyroRate	readOnly
		The processed rate gyroscope sensor data used by the ADCS.	16
2602	0A2A	platform.ADCS.processedMtm1	readOnly
		The processed sensor data from magnetometer 1.	16
2603	0A2B	platform.ADCS.processedMtm2	readOnly
		The processed sensor data from magnetometer 2.	16
2604	0A2C	platform.ADCS.processedMtmADCS	readOnly
		The processed magnetometer sensor data used by the ADCS.	16
2605	0A2D	platform.ADCS.mtmActiveSelected	readOnly
		Whether a magnetometer axis is active and being used.	2
2606	0A2E	platform.ADCS.fssActiveSelected	readOnly
		Whether a fine sun sensor is active and being used.	2
2607	0A2F	platform.ADCS.cssActiveSelected	readOnly
		Whether a coarse sun sensor is active and being used.	2
2608	0A30	platform.ADCS.sunProcessed	readOnly
		The processed sun vector data used by the ADCS.	16
2609	0A31	platform.ADCS.latLongAlt	readOnly
		Get the latitude, longitude and altitude data.	32
2610	0A32	platform.ADCS.estAtt	readOnly
		The estimated attitude of the platform.	16
2611	0A33	platform.ADCS.softwareVersion	readOnly
		Version information.	16
2612	0A34	platform.ADCS.rotationRateHigh	readOnly
		Whether a high rotation rate is detected.	1
2613	0A35	platform.ADCS.detumbleComplete	readOnly
		Whether no longer expected to be detumbling.	1
2614	0A36	platform.ADCS.detumbleCounter	readOnly
		Counter of time in detumble.	16
2615	0A37	platform.ADCS.targetAngleEst	readOnly
		The target angle estimates.	16
2616	0A38	platform.ADCS.slantElevationEst	readOnly
		The slant range and elevation estimates.	16
2617	0A39	platform.ADCS.sensorBit	readOnly
		Sensor Built In Test.	10
2618	0A3A	platform.ADCS.targetBit	readOnly
		Target Built In Test.	4
2619	0A3B	platform.ADCS.actuatorBit	readOnly
		Actuator Built In Test.	16
2620	0A3C	platform.ADCS.propagatorBit	readOnly
		Propagator Built In Test.	3
2621	0A3D	platform.ADCS.attitudeBit	readOnly
		Attitude Built In Test.	4
2622	0A3E	platform.ADCS.executionCount	readOnly
		Returns a count of the number software step executions.	16
2623	0A3F	platform.ADCS.adcsMode	readWrite
		The current controller mode of the ADCS device.	16
2624	0A40	platform.ADCS.adcsState	readWrite
		The current state of the ADCS device.	16
2625	0A41	platform.ADCS.adcsModeState	readWrite
		Atomically access the mode and state.	32
2626	0A42	platform.ADCS.syncIn	readWrite
		Control whether the ADCS tick is driven by a clock internal to the ADCS or an external pulse.	1
2627	0A43	platform.ADCS.timePositionCoordinates	readWrite
		Get/Set the position of the spacecraft in ECEF coordinates.	32
2628	0A44	platform.ADCS.timePositionVelocity	readWrite
		Get/Set the velocity of the spacecraft.	32
2629	0A45	platform.ADCS.timePositionDateTime	readWrite
		Get/Set the date and time for the spacecraft	16
2630	0A46	platform.ADCS.timePositionUpdated	readWrite
		Returns whether the date and time values have been updated.	2
2631	0A47	platform.ADCS.pointingThreshold	readWrite
		The pointing threshold used by the Target BIT.	16
2632	0A48	platform.ADCS.llaTarget	readWrite
		An LLA target on the Earth.	16
2633	0A49	platform.ADCS.testModeMtq	readWrite
		Used in test mode to control the magnetorquer.	16
2634	0A4A	platform.ADCS.rawAccess	readWrite
		Write/Read directly to a memory address (8-1023)	16
2635	0A4B	platform.ADCS.packedAdcsMode	readOnly
		The ADCS Mode parameter contained within one byte for logging/TM efficiency.	8
2636	0A4C	platform.ADCS.packedAdcsState	readOnly
		The ADCS State parameter contained within one byte for logging/TM efficiency.	8
2637	0A4D	platform.ADCS.packedAdcsStatus	readOnly
		The ADCS Status parameter contained within one byte for logging/TM efficiency.	8
2638	0A4E	platform.ADCS.spinControllerState	readOnly
		Get the state of the spin stablised controller.	16
2639	0A4F	platform.ADCS.bodyControlEuler	readWrite
		Get/Set the 3 angles which define orientation of control frame relative to body frame.	16
2640	0A50	platform.ADCS.inertiaBodyFrame	readWrite
		Get/Set the Inertia tensor in body frame ().	16
2641	0A51	platform.ADCS.detumbleControllerGains	readWrite
		Get/Set the gains for BDot detumble controller.	16
2642	0A52	platform.ADCS.spinControllerGains	readWrite
		Get/Set the gains k1-k3 for spin stabilised controller	16
2643	0A53	platform.ADCS.spinControllerDipoleOffset	readWrite
		Get/Set the fixed dipole for cancelling residual dipole in Z axis	16
2644	0A54	platform.ADCS.spinControllerMTQEnables	readWrite
		Get/Set the first 6 bits define which MTQs are enabled	16
2645	0A55	platform.ADCS.spinControllerMTQPolarity	readWrite
		Get/Set the first 6 bits define MTQ polarities	16
2646	0A56	platform.ADCS.spinControllerDipoleMax	readWrite
		Get/Set the max commanded dipoles on each axis.	16
2647	0A57	platform.ADCS.bodyFSSQuaternion	readWrite
		Rotation between body and FSS frames.	16
2648	0A58	platform.ADCS.maxRotationRate	readWrite
		Configures the spin rate limits which trigger bits in RN727 or 729 (need to clarify with CS).	16
2649	0A59	platform.ADCS.maxRotationRateSpin	readWrite
		Configures the spin rate limits which trigger bits in RN727 or 729 (need to clarify with CS).	16
2650	0A5A	platform.ADCS.triadLimitBodyFrame	readWrite
		Configure angles below which KF is deactivated.	16
2651	0A5B	platform.ADCS.triadLimitECI	readWrite
		Configure angles below which KF is deactivated.	16
2652	0A5C	platform.ADCS.spinControllerOmegaDes	readWrite
		Get/Set the the desired spin rate.	16
2653	0A5D	platform.ADCS.spinControllerRhoDes	readWrite
		Get/Set the the desired rho angle.	16
2654	0A5E	platform.ADCS.spinControllerSigmaDes	readWrite
		Get/Set the the desired sigma angle.	16
2655	0A5F	platform.ADCS.positionECI	readOnly
		Get the X, Y, Z ECI Position.	32
2656	0A60	platform.ADCS.velocityECI	readOnly
		Get the X, Y, Z ECI Velocity.	32
2657	0A61	platform.ADCS.commandedDipole	readOnly
		Get the commanded dipole parameter.	16
2816	0B00	platform.CMC.enabled	readWrite
		The flag controlling whether CMC transmission and reception is enabled	1
2817	0B01	platform.CMC.version	readOnly
		The firmware version number from the CMC.	8
2818	0B02	platform.CMC.mode	readWrite
		The modem configuration mode.	2
2819	0B03	platform.CMC.beaconEnable	readWrite
		The beacon enable flag.	1
2820	0B04	platform.CMC.beaconTimeout	readWrite
		The beacon timeout, in minutes.	3
2821	0B05	platform.CMC.beaconInterval	readWrite
		The interval between beacons, in seconds.	7
2822	0B06	platform.CMC.beaconData	readWrite
		The beacon data.	1024
2823	0B07	platform.CMC.txTransparent	readOnly
		Whether the CMC is in transparent mode	1
2824	0B08	platform.CMC.txConvEnabled	readWrite
		Whether or not to use the convolutional encoder.	1
2825	0B09	platform.CMC.txFrequencyOffset	readWrite
		The transmit frequency offset from 400MHz - 420MHz in 25kHz steps.	10
2826	0B0A	platform.CMC.txLock	readOnly
		Transmit frequency lock indicator.	1
2827	0B0B	platform.CMC.txPower	readWrite
		The transmit power amplifier power setting.	2
2828	0B0C	platform.CMC.txFlagsCount	readWrite
		The number of flags bytes transmitted before each packet.	8
2829	0B0D	platform.CMC.txSyncCount	readWrite
		The minimum number of sync bytes transmitted before data transmission.	8
2830	0B0E	platform.CMC.txReady	readOnly
		The transmit ready flag.	1
2831	0B0F	platform.CMC.txReadyThreshold	readWrite
		The threshold for determining whether TX is ready.	13
2832	0B10	platform.CMC.txSpaceAvailable	readOnly
		The number of bytes available in the transmit buffer.	16
2833	0B11	platform.CMC.txPacketCount	readOnly
		The number of packets transmitted.	16
2834	0B12	platform.CMC.txOverrunErrorCount	readOnly
		The number of transmit buffer overrun errors that have occurred.	16
2835	0B13	platform.CMC.rxFrequencyOffset	readWrite
		The receive frequency offset from 140MHz in 12.5kHz steps.	10
2836	0B14	platform.CMC.rxLock	readOnly
		Receive frequency lock indicator.	1
2837	0B15	platform.CMC.rxDtmfAndCounter	readOnly
		Flags indicating if DTMF codes have been received along with a counter.	8
2838	0B16	platform.CMC.rxRssi	readOnly
		Received signal strength indicator.	12
2839	0B17	platform.CMC.rxReady	readOnly
		The receive ready flag.	1
2840	0B18	platform.CMC.rxDataWaiting	readOnly
		The number of bytes waiting in the receive buffer.	16
2841	0B19	platform.CMC.rxFrameCount	readOnly
		The number of valid frames received by the CMC.	16
2842	0B1A	platform.CMC.rxPacketCount	readOnly
		The number of valid packets received from the CMC.	16
2843	0B1B	platform.CMC.rxDroppedErrorCount	readOnly
		The number of received packets that have been dropped.	16
2844	0B1C	platform.CMC.rxCrcErrorCount	readOnly
		The number of frames received with an invalid frame check sequence.	16
2845	0B1D	platform.CMC.rxOverrunErrorCount	readOnly
		The number of receive buffer overrun errors that have occurred.	8
2846	0B1E	platform.CMC.rxProtocolErrorCount	readOnly
		The number of receive protocol errors that have occurred.	16
2847	0B1F	platform.CMC.temperatureSmps	readOnly
		The temperature measured at the CMC switched-mode power supply.	8
2848	0B20	platform.CMC.temperaturePa	readOnly
		The temperature measured at the CMC power amplifier.	8
2849	0B21	platform.CMC.voltage3V3	readOnly
		The voltage of the 3.3V supply.	13
2850	0B22	platform.CMC.voltage5V	readOnly
		The voltage of the 5V supply.	13
2851	0B23	platform.CMC.current3V3	readOnly
		The current being drawn through the 3.3V supply.	16
2852	0B24	platform.CMC.current5V	readOnly
		The current being drawn through the 5V supply.	16
2853	0B25	platform.CMC.debugShowLock	readWrite
		Enable the CMC debug LEDS to show the transmit and receive lock signals.	1
2854	0B26	platform.CMC.debugFlags	readWrite
		The value of the CMC debug LEDS, if debugShowLock is disabled.	2
2855	0B27	platform.CMC.paForwardPower	readOnly
		The PA forward power.	12
2856	0B28	platform.CMC.paReversePower	readOnly
		The PA reverse power.	12
2857	0B29	platform.CMC.CMCAliveCheckFailLim	readWrite
		The number of times the CMC can fail to respond to the command called in the CMCAliveCheck action (in succession) prior to an event being raised that triggers an event action/OBC reset. E.g. if this parameter is 0 or 1, an event will be raised after every failed CMCAliveCheck. If this parameter is 2, an event will be raised after 2 (successive) failed CMCAliveChecks and so on.	8
3072	0C00	platform.ADM.FirmwareVersion	readOnly
		The firmware version on the EMOD MSP.	16
3073	0C01	platform.ADM.ErrorCounter	readOnly
		The number of errors registered by the ADM firmware.	8
3074	0C02	platform.ADM.LastErrorTypes	readOnly
		The last 5 error type that occurred.	40
3075	0C03	platform.ADM.PrimResistsStatuses	readOnly
		The status flags for the pins associated with the four primary resistors.	5
3076	0C04	platform.ADM.SwitchesStatuses	readOnly
		The status flags for switches on the doors of each antenna element.	5
3077	0C05	platform.ADM.SwitchTimes	readOnly
		The burn times for a given primary resistor until the switch opens.	32
3078	0C06	platform.ADM.PrimBurnTimes	readOnly
		The burn times for a given primary resistor.	32
3079	0C07	platform.ADM.PrimBurnTimeout	readWrite
		The primary resistor burn timeout that will be applied by the MSP to automatically stop a burn. This is set to 120 seconds by default. A value of 0 is equivalent to no timeout.	16
3080	0C08	platform.ADM.CommandRepeats	readWrite
		The number of times the OBC should try to send a command to EMOD if/while the command ‘fails’ (i.e. due to EMOD returning 0xFF or due to an I2C error).	8
3081	0C09	platform.ADM.ADMAliveCheckFailLim	readWrite
		The number of times the ADM can fail to respond to the command called in the ADMAliveCheck action (in succession) prior to an MSP powercycle being invoked. E.g. if this parameter is 0 or 1, the MSP will be powercycled after every failed ADMAliveCheck. If this parameter is 2, the MSP will be powercycled after 2 (successive) failed ADMAliveChecks and so on.	8
3328	0D00	platform.obc.Time.enabled	readWrite
		The onboard time enable flag.	1
3329	0D01	platform.obc.Time.time	readWrite
		The current fine time.	32
3584	0E00	core.Storage.description	readOnly
		Packed description of each storage channels	104
3585	0E01	core.Storage.isCircular	readWrite
		Flag controlling whether channels are circular or linear	1
3586	0E02	core.Storage.isClaimed	readOnly
		Flag indicating whether or not a channel is in use	1
3587	0E03	core.Storage.isFull	readOnly
		Flag indicating whether or not a channel is full	1
3588	0E04	core.Storage.maxBytes	readOnly
		The maximum size of each channel	32
3589	0E05	core.Storage.rowLength	readWrite
		The current row length of each channel	32
3590	0E06	core.Storage.numRows	readOnly
		The number of rows in each channel	32
3840	0F00	core.ConfigurationManager.enabled	readWrite
		Enable/disable the configuration manager component.	1
3841	0F01	core.ConfigurationManager.configurationIds	readWrite
		The configuration context ID for each component in the deployment.	8
3842	0F02	core.ConfigurationManager.configSizes	readOnly
		Get the size of the configurations for components.	32
3843	0F03	core.ConfigurationManager.profileCount	readOnly
		The number of configuration profiles for a deployment.	8
4096	1000	platform.obc.FlashDevice.pageAddress	readWrite
		Set the page address to access via pageData” and “blockErase””	19
4097	1001	platform.obc.FlashDevice.writeRepeats	readWrite
		Control how many pages are written when setting pageData””	32
4098	1002	platform.obc.FlashDevice.pageData	readWrite
		Access the flash page addressed by the pageAddress parameter	8
4352	1100	core.Memory.addressWidth	readOnly
		Returns the width of memory addresses on this architecture	8
4353	1101	core.Memory.blockAddress	readWrite
		The memory block base address to read memory from.	16
4354	1102	core.Memory.memory	readWrite
		The memory block.	8
4608	1200	core.OBT.time	readWrite
		The onboard time.	32
4609	1201	core.OBT.uptime	readOnly
		The uptime since reboot or reset.	32
4610	1202	core.OBT.fineTime	readOnly
		The onboard fine time.	32
4864	1300	core.EventDispatcher.enabled	readWrite
		Whether the event dispatcher is enabled.	1
4865	1301	core.EventDispatcher.pendingCount	readOnly
		The number of events pending in the dispatch queue.	32
4866	1302	core.EventDispatcher.eventCount	readOnly
		The total number of events dispatched.	32
4867	1303	core.EventDispatcher.overflowCount	readOnly
		The number of events not dispatched due to queue overflow.	32
4868	1304	core.EventDispatcher.lastEvent	readOnly
		The signature of the last event dispatched.	64
5120	1400	comms.Serial.enabled	readWrite
		The enabled flag	1
5121	1401	comms.Serial.txFailures	readOnly
		The number of transmit failures.	32
5122	1402	comms.Serial.rxFailures	readOnly
		The number of receive failures.	32
5123	1403	comms.Serial.framingErrors	readOnly
		The number of framing errors reported by the UART.	32
5124	1404	comms.Serial.parityErrors	readOnly
		The number of parity errors reported by the UART.	32
5125	1405	comms.Serial.overrunErrors	readOnly
		The number of receive over-run errors reported by the UART.	32
5126	1406	comms.Serial.baudRateParam	readWrite
		The desired baud rate.	32
5376	1500	comms.TMTCBuffer.spacelinkTxEnable	readWrite
		Flag specifying whether packets should be transmitted on the space link.	1
5377	1501	comms.TMTCBuffer.umbilicalTxEnable	readWrite
		Flag specifying whether packets should be transmitted on the umbilical.	1
5378	1502	comms.TMTCBuffer.umbilicalRxEnable	readWrite
		Flag specifying whether packets should be received from the umbilical.	1
5379	1503	comms.TMTCBuffer.umbilicalTimeout	readWrite
		Time, in seconds, after initialisation when the umbilical is disabled.	16
5380	1504	comms.TMTCBuffer.txCount	readOnly
		The number of packets transmitted	16
5381	1505	comms.TMTCBuffer.rxCount	readOnly
		The number of packets received	16
5632	1600	comms.HMAC.isAuthenticating	readWrite
		Whether the component is authenticating incoming frames.	1
5633	1601	comms.HMAC.isKeyValid	readOnly
		Whether the key is valid, or if it has become corrupt.	1
5634	1602	comms.HMAC.sequenceNumber	readWrite
		Get and set the frame sequence number.	24
5635	1603	comms.HMAC.updateSeqNum	readWrite
		Determines if the SequenceNumber parameter should be updated as authenticated frames are recieved. This parameter should ONLY be set to FALSE in the event where RF transmission must be disabled and isAuthenticating = FALSE is not desired. It will allow for some security without the uncertainty of what the current Sequence Number is while RF is off.	1
5636	1604	comms.HMAC.spacecraftId	readOnly
		The ID for the spacecraft	8
5637	1605	comms.HMAC.authenticatedFrameCount	readOnly
		Counts the number of authentic frames received.	16
5638	1606	comms.HMAC.failedAuthenticationCount	readOnly
		Counts the number of frames received that failed authentication.	8
5639	1607	comms.HMAC.droppedFrameCount	readOnly
		frames that were dropped for reasons other than failing authentication.	16
5640	1608	comms.HMAC.seqResyncCount	readOnly
		The number of times that the sequence counter has been resynced.	8
5888	1700	comms.TmSpaceDataLink.isOIDEnabled	readWrite
		Whether the possibility to generate frame with Only Idle Data is enabled.	1
6144	1800	comms.SpacePacket.lenErrorCount	readOnly
		The number of times an invalid packet length was encountered.	32
6145	1801	comms.SpacePacket.apidErrorCount	readOnly
		The number of invalid APIDs received.	32
6146	1802	comms.SpacePacket.crcErrorCount	readOnly
		The number of times a CRC error was encountered.	32
6147	1803	comms.SpacePacket.fieldErrorCount	readOnly
		The number of field errors. These are errors in other packet fields.	32
6400	1900	comms.pus.PUSLDT.txTransferState	readOnly
		Each row indicates if the state of the corresponding transmit transfer	3
6401	1901	comms.pus.PUSLDT.txTransferTransactionId	readOnly
		Each row contains the transaction ID for the corresponding transmit transfer	8
6402	1902	comms.pus.PUSLDT.txTransferTimeoutCount	readOnly
		Each row contains the timeout count for the corresponding transmit transfer	8
6403	1903	comms.pus.PUSLDT.rxTransferState	readOnly
		Each row indicates if the state of the corresponding receive transfer	3
6404	1904	comms.pus.PUSLDT.rxTransferTransactionId	readOnly
		Each row contains the transaction ID for the corresponding receive transfer	8
6405	1905	comms.pus.PUSLDT.rxTransferTimeoutCount	readOnly
		Each row contains the timeout count for the corresponding receive transfer	8
6406	1906	comms.pus.PUSLDT.txTimeout	readWrite
		The time after which a transmission transfer should be re-attempted	32
6407	1907	comms.pus.PUSLDT.txMaxTimeouts	readWrite
		The number of transmission timeouts permitted	8
6408	1908	comms.pus.PUSLDT.rxTimeout	readWrite
		The time after which a reception negative acknowledgement should be sent	32
6409	1909	comms.pus.PUSLDT.rxMaxTimeouts	readWrite
		The number of reception timeouts permitted	8
6410	190A	comms.pus.PUSLDT.txLostTransactions	readOnly
		The number of lost (leaked) transmit transactions	32
6411	190B	comms.pus.PUSLDT.rxLostTransactions	readOnly
		The number of lost (leaked) transmit transactions	32
6412	190C	comms.pus.PUSLDT.rxProcessingErrors	readOnly
		The number of processing errors during receive	32
6656	1A00	cdh.tmtc.TMBeacon.enabled	readWrite
		The flag controlling the sending of all frames	1
6657	1A01	cdh.tmtc.TMBeacon.frameDefinitions	readWrite
		Packed records defining each beacon frame to be sent	40
6658	1A02	cdh.tmtc.TMBeacon.frameParams	readWrite
		The parameter IDs for each of the beacon frames	16
6659	1A03	cdh.tmtc.TMBeacon.frameEnabled	readWrite
		The enable flags for each of the beacon frames	1
6660	1A04	cdh.tmtc.TMBeacon.frameEnabledBitmask	readWrite
		A bitmask representing the frameEnabled parameter.	16
6661	1A05	cdh.tmtc.TMBeacon.framePeriodMultipliers	readWrite
		The period multipliers for each of the beacon frames	8
6662	1A06	cdh.tmtc.TMBeacon.frameSid	readOnly
		Returns the SID of a frame.	8
6912	1B00	cdh.tmtc.TMDebug.debugLevel	readWrite
		The level of debug messages which will be reported.	2
6913	1B01	cdh.tmtc.TMDebug.includeSourceRef	readWrite
		If true then debug messages will include a reference to the source file	1
6914	1B02	cdh.tmtc.TMDebug.includeThreadID	readOnly
		If true then debug messages will include the source thread ID	1
6915	1B03	cdh.tmtc.TMDebug.messageCount	readOnly
		The number of debug messages processed.	32
6916	1B04	cdh.tmtc.TMDebug.messagesDropped	readOnly
		The number of debug messages dropped.	32
6917	1B05	cdh.tmtc.TMDebug.transactionsLost	readOnly
		The number of transmission transactions lost.	8
7168	1C00	cdh.tmtc.TMTCAction.enabled	readWrite
		The enabled flag for the TMTCAction.	1
7169	1C01	cdh.tmtc.TMTCAction.lastTcSignature	readOnly
		The signature of the last processed telecommand.	32
7424	1D00	cdh.tmtc.TMTCParam.enabled	readWrite
		The enabled flag for the TMTCParam.	1
7425	1D01	cdh.tmtc.TMTCParam.lastTcSignature	readOnly
		The signature of the last processed telecommand.	32
7680	1E00	cdh.tmtc.TMTCEvent.enabled	readWrite
		The enabled flag for the TMTCEvent.	1
7681	1E01	cdh.tmtc.TMTCEvent.eventEnable	readWrite
		An enabled flag for each event type.	1
7936	1F00	cdh.tmtc.TMTCTransfer.enabled	readWrite
		The enabled flag for the TMTCTransfer.	1
7937	1F01	cdh.tmtc.TMTCTransfer.lastTcSignature	readOnly
		The signature of the last processed telecommand.	32
7938	1F02	cdh.tmtc.TMTCTransfer.getTransferInProgress	readOnly
		Each row indicates if the corresponding get transfer is in progress	1
7939	1F03	cdh.tmtc.TMTCTransfer.getTransferTransactionId	readOnly
		Each row contains the transaction ID for the corresponding get transfer	8
7940	1F04	cdh.tmtc.TMTCTransfer.setTransferInProgress	readOnly
		Each row indicates if the corresponding set transfer is in progress	1
7941	1F05	cdh.tmtc.TMTCTransfer.setTransferTransactionId	readOnly
		Each row contains the transaction ID for the corresponding set transfer	8
8192	2000	cdh.telemetry.ParamStats.enabled	readWrite
		Whether the ParamStats component is enabled.	1
8193	2001	cdh.telemetry.ParamStats.statisticsPacked	readOnly
		The list of evaluated statistics.	256
8194	2002	cdh.telemetry.ParamStats.paramListPacked	readWrite
		The list of parameters to provide statistical records for.	40
8195	2003	cdh.telemetry.ParamStats.resetOnStatisticRead	readWrite
		When set to 1, the statistics will be reset after they are read.	1
8196	2004	cdh.telemetry.ParamStats.paramEnabled	readWrite
		Whether a parameter is enabled for statistical evaluation.	1
8197	2005	cdh.telemetry.ParamStats.statisticValid	readOnly
		If set high, the statistic is valid.	1
8198	2006	cdh.telemetry.ParamStats.isSigned	readOnly
		Returns whether a parameter is a signed value.	1
8199	2007	cdh.telemetry.ParamStats.maxSignedValue	readOnly
		The current stored maximum value recorded for a signed parameter.	32
8200	2008	cdh.telemetry.ParamStats.maxUnsignedValue	readOnly
		The current stored maximum value recorded for an unsigned parameter.	32
8201	2009	cdh.telemetry.ParamStats.maxTime	readOnly
		The on-board time recorded when the maximum value was set.	32
8202	200A	cdh.telemetry.ParamStats.timeSinceMax	readOnly
		The elapsed on-board time since the maximum value was set.	32
8203	200B	cdh.telemetry.ParamStats.minSignedValue	readOnly
		The current stored minimum value recorded for a signed parameter.	32
8204	200C	cdh.telemetry.ParamStats.minUnsignedValue	readOnly
		The current stored minimum value recorded for an unsigned parameter.	32
8205	200D	cdh.telemetry.ParamStats.minTime	readOnly
		The on-board time recorded when the minimum value was set.	32
8206	200E	cdh.telemetry.ParamStats.timeSinceMin	readOnly
		The elapsed on-board time since the minimum value was set.	32
8207	200F	cdh.telemetry.ParamStats.changeTime	readOnly
		The on-board time recorded when the value changed.	32
8208	2010	cdh.telemetry.ParamStats.timeSinceChange	readOnly
		The elapsed on-board time since the last recorded change	32
8209	2011	cdh.telemetry.ParamStats.meanSignedValue	readOnly
		Calculates and returns the current mean value for a signed parameter.	32
8210	2012	cdh.telemetry.ParamStats.meanUnsignedValue	readOnly
		Calculates and returns the current mean value for an unsigned parameter.	32
8211	2013	cdh.telemetry.ParamStats.periodMultiplier	readWrite
		Sets the period multiplier for the ParamStats component.	8
8448	2100	cdh.telemetry.SoftwareBeaconAggregator.paramList	readWrite
		The list of parameters to aggregate as a simple list of IDs.	16
8449	2101	cdh.telemetry.SoftwareBeaconAggregator.paramListPacked	readWrite
		The list of fully-specified parameters to aggregate as a list of packed record.	64
8450	2102	cdh.telemetry.SoftwareBeaconAggregator.configId	readWrite
		Ground-defined identifier for the current aggregator configuration.	8
8451	2103	cdh.telemetry.SoftwareBeaconAggregator.packedOutput	readOnly
		Aggregated value as packed binary.	2048
8704	2200	cdh.telemetry.HardwareBeaconAggregator.paramList	readWrite
		The list of parameters to aggregate as a simple list of IDs.	16
8705	2201	cdh.telemetry.HardwareBeaconAggregator.paramListPacked	readWrite
		The list of fully-specified parameters to aggregate as a list of packed record.	64
8706	2202	cdh.telemetry.HardwareBeaconAggregator.configId	readWrite
		Ground-defined identifier for the current aggregator configuration.	8
8707	2203	cdh.telemetry.HardwareBeaconAggregator.packedOutput	readOnly
		Aggregated value as packed binary.	2048
8960	2300	cdh.telemetry.HKAggregator.paramList	readWrite
		The list of parameters to aggregate as a simple list of IDs.	16
8961	2301	cdh.telemetry.HKAggregator.paramListPacked	readWrite
		The list of fully-specified parameters to aggregate as a list of packed record.	64
8962	2302	cdh.telemetry.HKAggregator.configId	readWrite
		Ground-defined identifier for the current aggregator configuration.	8
8963	2303	cdh.telemetry.HKAggregator.packedOutput	readOnly
		Aggregated value as packed binary.	2048
9216	2400	cdh.telemetry.TEDAggregator.paramList	readWrite
		The list of parameters to aggregate as a simple list of IDs.	16
9217	2401	cdh.telemetry.TEDAggregator.paramListPacked	readWrite
		The list of fully-specified parameters to aggregate as a list of packed record.	64
9218	2402	cdh.telemetry.TEDAggregator.configId	readWrite
		Ground-defined identifier for the current aggregator configuration.	8
9219	2403	cdh.telemetry.TEDAggregator.packedOutput	readOnly
		Aggregated value as packed binary.	2048
9472	2500	cdh.telemetry.ADMAggregator.paramList	readWrite
		The list of parameters to aggregate as a simple list of IDs.	16
9473	2501	cdh.telemetry.ADMAggregator.paramListPacked	readWrite
		The list of fully-specified parameters to aggregate as a list of packed record.	64
9474	2502	cdh.telemetry.ADMAggregator.configId	readWrite
		Ground-defined identifier for the current aggregator configuration.	8
9475	2503	cdh.telemetry.ADMAggregator.packedOutput	readOnly
		Aggregated value as packed binary.	2048
9728	2600	cdh.telemetry.ADCSHKAggregator.paramList	readWrite
		The list of parameters to aggregate as a simple list of IDs.	16
9729	2601	cdh.telemetry.ADCSHKAggregator.paramListPacked	readWrite
		The list of fully-specified parameters to aggregate as a list of packed record.	64
9730	2602	cdh.telemetry.ADCSHKAggregator.configId	readWrite
		Ground-defined identifier for the current aggregator configuration.	8
9731	2603	cdh.telemetry.ADCSHKAggregator.packedOutput	readOnly
		Aggregated value as packed binary.	2048
9984	2700	cdh.telemetry.ADCSDebugAggregator.paramList	readWrite
		The list of parameters to aggregate as a simple list of IDs.	16
9985	2701	cdh.telemetry.ADCSDebugAggregator.paramListPacked	readWrite
		The list of fully-specified parameters to aggregate as a list of packed record.	64
9986	2702	cdh.telemetry.ADCSDebugAggregator.configId	readWrite
		Ground-defined identifier for the current aggregator configuration.	8
9987	2703	cdh.telemetry.ADCSDebugAggregator.packedOutput	readOnly
		Aggregated value as packed binary.	2048
10240	2800	cdh.telemetry.PASCALAggregator.paramList	readWrite
		The list of parameters to aggregate as a simple list of IDs.	16
10241	2801	cdh.telemetry.PASCALAggregator.paramListPacked	readWrite
		The list of fully-specified parameters to aggregate as a list of packed record.	64
10242	2802	cdh.telemetry.PASCALAggregator.configId	readWrite
		Ground-defined identifier for the current aggregator configuration.	8
10243	2803	cdh.telemetry.PASCALAggregator.packedOutput	readOnly
		Aggregated value as packed binary.	2048
10496	2900	cdh.logging.ADMLogger.enabled	readWrite
		Logger enable	1
10497	2901	cdh.logging.ADMLogger.channelId	readWrite
		Global ID of the channel to write to.	16
10498	2902	cdh.logging.ADMLogger.paramId	readWrite
		The ID of the parameter to sample.	16
10499	2903	cdh.logging.ADMLogger.periodMultiplier	readWrite
		Base logging period multiplier.	8
10500	2904	cdh.logging.ADMLogger.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
10501	2905	cdh.logging.ADMLogger.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
10752	2A00	cdh.logging.EventLogger.enabled	readWrite
		Logger enable	1
10753	2A01	cdh.logging.EventLogger.channelId	readWrite
		Global ID of the channel to write to.	16
10754	2A02	cdh.logging.EventLogger.severityFilterType	readWrite
		The type of filtering which is done on the severity filter level	1
10755	2A03	cdh.logging.EventLogger.severityFilter	readWrite
		The filter applied to events to determine if they should be logged	2
10756	2A04	cdh.logging.EventLogger.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
10757	2A05	cdh.logging.EventLogger.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
11008	2B00	cdh.logging.HKLogger.enabled	readWrite
		Logger enable	1
11009	2B01	cdh.logging.HKLogger.channelId	readWrite
		Global ID of the channel to write to.	16
11010	2B02	cdh.logging.HKLogger.paramId	readWrite
		The ID of the parameter to sample.	16
11011	2B03	cdh.logging.HKLogger.periodMultiplier	readWrite
		Base logging period multiplier.	8
11012	2B04	cdh.logging.HKLogger.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
11013	2B05	cdh.logging.HKLogger.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
11264	2C00	cdh.logging.TEDLogger.enabled	readWrite
		Logger enable	1
11265	2C01	cdh.logging.TEDLogger.channelId	readWrite
		Global ID of the channel to write to.	16
11266	2C02	cdh.logging.TEDLogger.paramId	readWrite
		The ID of the parameter to sample.	16
11267	2C03	cdh.logging.TEDLogger.periodMultiplier	readWrite
		Base logging period multiplier.	8
11268	2C04	cdh.logging.TEDLogger.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
11269	2C05	cdh.logging.TEDLogger.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
11520	2D00	cdh.logging.ADCSHKLogger.enabled	readWrite
		Logger enable	1
11521	2D01	cdh.logging.ADCSHKLogger.channelId	readWrite
		Global ID of the channel to write to.	16
11522	2D02	cdh.logging.ADCSHKLogger.paramId	readWrite
		The ID of the parameter to sample.	16
11523	2D03	cdh.logging.ADCSHKLogger.periodMultiplier	readWrite
		Base logging period multiplier.	8
11524	2D04	cdh.logging.ADCSHKLogger.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
11525	2D05	cdh.logging.ADCSHKLogger.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
11776	2E00	cdh.logging.ADCSDebugLogger.enabled	readWrite
		Logger enable	1
11777	2E01	cdh.logging.ADCSDebugLogger.channelId	readWrite
		Global ID of the channel to write to.	16
11778	2E02	cdh.logging.ADCSDebugLogger.paramId	readWrite
		The ID of the parameter to sample.	16
11779	2E03	cdh.logging.ADCSDebugLogger.periodMultiplier	readWrite
		Base logging period multiplier.	8
11780	2E04	cdh.logging.ADCSDebugLogger.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
11781	2E05	cdh.logging.ADCSDebugLogger.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
12032	2F00	cdh.logging.PASCALLogger.enabled	readWrite
		Logger enable	1
12033	2F01	cdh.logging.PASCALLogger.channelId	readWrite
		Global ID of the channel to write to.	16
12034	2F02	cdh.logging.PASCALLogger.paramId	readWrite
		The ID of the parameter to sample.	16
12035	2F03	cdh.logging.PASCALLogger.periodMultiplier	readWrite
		Base logging period multiplier.	8
12036	2F04	cdh.logging.PASCALLogger.absRowsLogged	readWrite
		The absolute number of rows ever logged to this channel.	32
12037	2F05	cdh.logging.PASCALLogger.ARLIsSettable	readWrite
		Determines whether the AbsRowsLogged parameter is settable.	1
12288	3000	cdh.scheduling.EventAction.enabled	readWrite
		The flag controlling the execution of actions due to events.	1
12289	3001	cdh.scheduling.EventAction.entryListPacked	readWrite
		The event-action entry list as packed records.	96
12290	3002	cdh.scheduling.EventAction.entryEventId	readOnly
		The event ID for each event-action entry.	16
12291	3003	cdh.scheduling.EventAction.entryId	readOnly
		The ID of the Action/Parameter to invoke/set.	16
12292	3004	cdh.scheduling.EventAction.entryEnabled	readWrite
		The enabled flag of each event-action entry.	1
12293	3005	cdh.scheduling.EventAction.entrySeverity	readOnly
		The severity flag of each event-action entry.	1
12294	3006	cdh.scheduling.EventAction.entryOnce	readOnly
		The once flag of each event-action entry.	1
12295	3007	cdh.scheduling.EventAction.entryExecuted	readOnly
		The executed flag of each event-action entry.	1
12296	3008	cdh.scheduling.EventAction.entryAck	readWrite
		The acknowledge flag of each event-action entry.	1
12297	3009	cdh.scheduling.EventAction.entryStatus	readOnly
		The action execution status of each event-action entry.	32
12298	300A	cdh.scheduling.EventAction.entryIdIsAction	readOnly
		Determines whether the listed id is an action or parameter.	1
12299	300B	cdh.scheduling.EventAction.entryParamRowList	readOnly
		The list of the row number (used for parameters)	16
12544	3100	cdh.scheduling.TimeAction.enabled	readWrite
		The flag controlling the execution of schedule actions.	1
12545	3101	cdh.scheduling.TimeAction.entryListPacked	readWrite
		The schedule entry list as packed records.	152
12546	3102	cdh.scheduling.TimeAction.entryTime	readWrite
		The schedule time of each entry.	32
12547	3103	cdh.scheduling.TimeAction.entryId	readOnly
		The ID of the Action/Parameter to invoke/set.	16
12548	3104	cdh.scheduling.TimeAction.entryEnabled	readWrite
		The enabled flag of each schedule entry.	1
12549	3105	cdh.scheduling.TimeAction.entryIsRelative	readOnly
		Whether this entry is using a relative time	1
12550	3106	cdh.scheduling.TimeAction.entryOneShot	readOnly
		Whether this entry is a one-shot.	1
12551	3107	cdh.scheduling.TimeAction.entryExpired	readOnly
		The expired flag of each schedule entry.	1
12552	3108	cdh.scheduling.TimeAction.entryExecuted	readOnly
		The executed flag of each schedule entry.	1
12553	3109	cdh.scheduling.TimeAction.entryStatus	readOnly
		The action execution status of each schedule entry.	32
12554	310A	cdh.scheduling.TimeAction.entryIdIsAction	readOnly
		Determines whether the listed id is an action or parameter.	1
12555	310B	cdh.scheduling.TimeAction.entryParamRowList	readOnly
		The list of the row number (used for parameters)	16
12556	310C	cdh.scheduling.TimeAction.entryRepeatDelay	readWrite
		How long of a time delay there is between each repeat execution.	32
12557	310D	cdh.scheduling.TimeAction.entryRepeatCount	readWrite
		The amount of times that an entry should be repeated.	8
12800	3200	cdh.scheduling.WatchdogPeriodicAction.enabled	readWrite
		Enable periodic action service.	1
12801	3201	cdh.scheduling.WatchdogPeriodicAction.idIsAction	readWrite
		Determines whether the listed id is an action or parameter.	1
12802	3202	cdh.scheduling.WatchdogPeriodicAction.actionListPacked	readWrite
		The list of packed record entries.	96
12803	3203	cdh.scheduling.WatchdogPeriodicAction.actionListPeriodMultiplier	readWrite
		The list of period multipliers for the actions.	8
12804	3204	cdh.scheduling.WatchdogPeriodicAction.actionListCurrentPeriods	readWrite
		The list of current period for the actions.	8
12805	3205	cdh.scheduling.WatchdogPeriodicAction.actionListIds	readWrite
		The list of action IDs	16
12806	3206	cdh.scheduling.WatchdogPeriodicAction.actionListEnabled	readWrite
		Returns the flag for whether the action is enabled.	1
12807	3207	cdh.scheduling.WatchdogPeriodicAction.actionListInvoked	readOnly
		Returns the flag that indicates whether an action has been invoked.	1
12808	3208	cdh.scheduling.WatchdogPeriodicAction.actionListAck	readWrite
		Returns the flag for whether an action raises an event on success.	1
12809	3209	cdh.scheduling.WatchdogPeriodicAction.paramRowList	readWrite
		The list of the row number (used for parameters)	16
13056	3300	platform.obc.Watchdog.currentCredit	readOnly
		How much credit is available for kicking the watchdog	32
13057	3301	platform.obc.Watchdog.restoreAmount	readWrite
		How much credit is restored by the restore task	32
13312	3400	mission.SeparationSequence.state	readOnly
		This parameter contains the current state of the separation sequence.	8
13313	3401	mission.SeparationSequence.InhibitPinStatus	readOnly
		This will get the current inhibit pin state as stored by the separation sequence.	1
13314	3402	mission.SeparationSequence.BurnAttempts	readOnly
		This parameter will indicate how many loops (primary and secondary)resistors burns have occurred. Reset on reboots but information can also be inferred from Event Log.	16
13315	3403	mission.SeparationSequence.AntSwitchesStatuses	readOnly
		The status flags for switches on the doors of each antenna element. If bit is LOW, the switch is closed (indicating that the antenna element door is closed and the antenna element is stowed): - bit 0: +X antenna element door switch - bit 1: +Y antenna element door switch - bit 2: -X antenna element door switch - bit 3: -Y antenna element door switch	4
13316	3404	mission.SeparationSequence.TimerTimeRemaining	readOnly
		This parameter will indicate how many seconds are remaining in the timer time before a transition to a new state occurs.	32
13568	3500	mission.NoTCWatchdogManager.NoTCWatchdogTimeout	readWrite
		Get or set the number of days to pass before the no TC watchdog triggers. If this parameter is 0, the no TC watchdog is essentially disabled.	8
